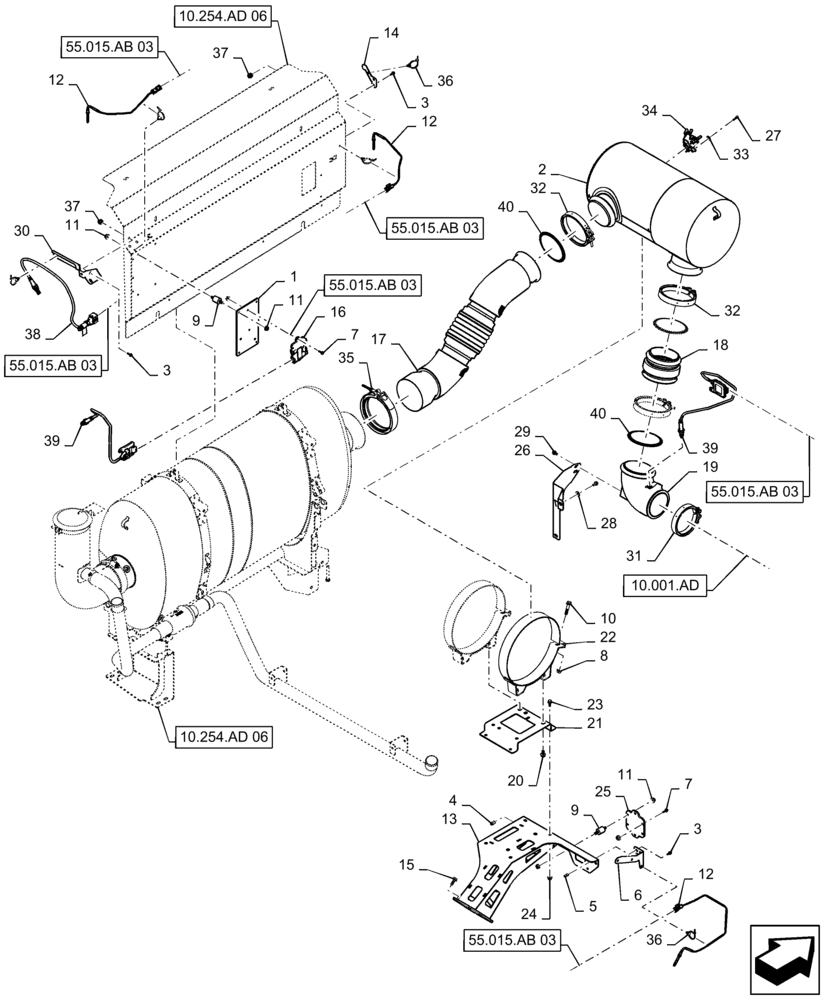

Запчасти Case IH 8240 (10.254.AD [05]) - EXHAUST SYSTEM (10) - ENGINE

1

47687878

SUPPORT

Bracket, Mounting, NOX Sensor

1шт.

2

47447524

MUFFLER

Diesel Oxidation Catalyst

1шт.

3

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

7шт.

4

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

3шт.

5

84578718

RIVET,Flng, 9mm OD x 18mm L

2шт.

6

47697691

SUPPORT

Bracket, Mounting, ECU

1шт.

7

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

6шт.

8

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

9

47671808

DAMPER,M6 x 1.0 x 15mm, 25mm OD x 60mm OAL

6шт.

10

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

2шт.

11

86050300

FLANGE NUT,M6 x 1.0, Cl 10

18шт.

12

47478880

TEMPERATURE SENDER,50mm, Closed

Exhaust Temperature

3шт.

13

47697692

SUPPORT

Bracket, DOC

1шт.

14

47604814

SUPPORT

Exhaust Temperature Sensor, Bracket

1шт.

15

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

8шт.

16

47368959

ECU

NH3

1шт.

17

47630076

TUBE,Flex Section

Exhaust

1шт.

18

47433465

FLEXIBLE JOINT,Reducer, 135mm ID to 124mm ID

1шт.

19

47417425

ELBOW,Reducer, 124mm ID to 110mm ID, 90 Degree

1шт.

20

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

21

47647309

SUPPORT

DOC Base

1шт.

22

47647302

CLAMP,326mm ID, M10 x 1.5

DOC

2шт.

23

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

24

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

25

47687880

SUPPORT

Bracket, NOX Sensor, 108mm L x 134.6mm W

1шт.

26

47701924

SUPPORT

Exhaust Elbow

1шт.

27

14432221

HEX SOC SCREW,M6 x 1.0 x 28mm, Cl 8.8

3шт.

28

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

1шт.

29

87681207

BOLT,M8 x 24.1mm, Cl 10.9

4шт.

30

47701714

SUPPORT

Bracket, Sensor Wiring

1шт.

31

47415584

CLAMP,138mm ID

Turbo, M8 x 70mm, 138mm OD

1шт.

32

47390971

CLAMP,158mm ID, T - Bolt

3шт.

33

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

34

47537810

INJECTOR, EMISSIONS,12 KG/HR

Denox, 2.2

1шт.

34

47537810R

REMAN-INJEC EMISSION

Denox

1шт.

34

47537810C

CORE-INJEC EMISSION

Return Number

1шт.

35

47511343

CLAMP,156mm ID, T - Bolt, V - Band

Exhaust

1шт.

36

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

13шт.

37

86610198

INSERT,M6 x 1

5шт.

38

47520140

SENSOR,8 Pin

NOX

1шт.

39

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

NOX

2шт.

40

47684294

GASKET,133.8mm ID x 154mm OD, 5 Layer

Exhaust

3шт.
