Запчасти Case IH 8240 (90.150.AD) - CAB SHELL, ACCESS COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

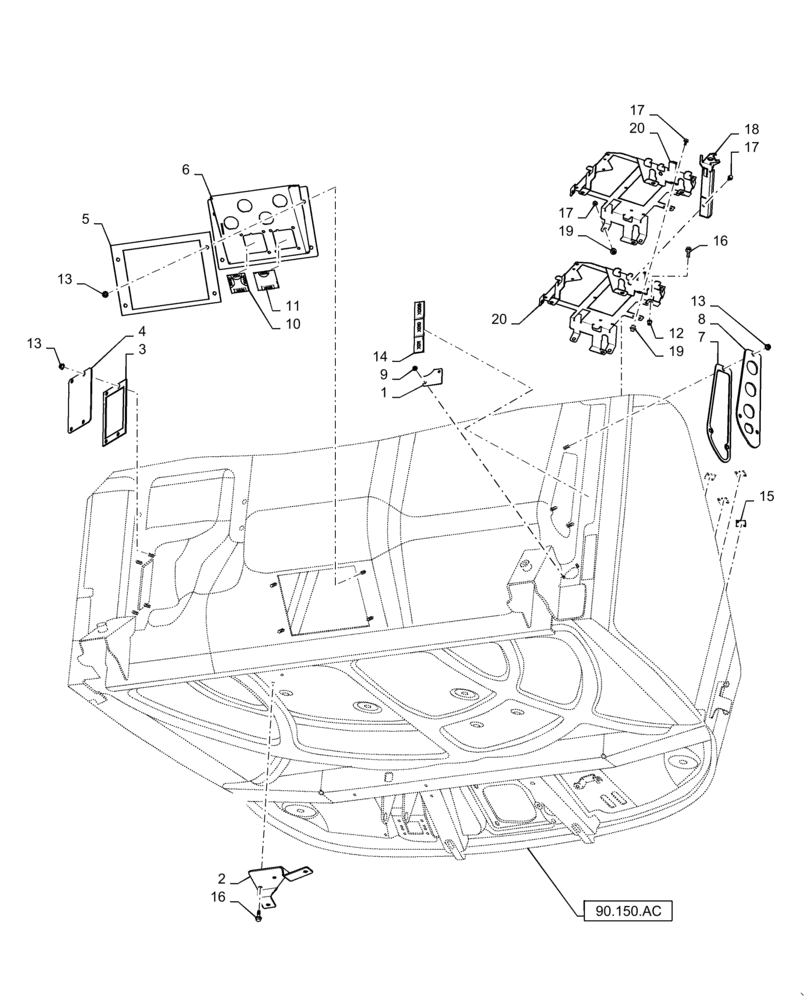

Схема запчастей Case IH 8240 - (90.150.AD) - CAB SHELL, ACCESS COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
6
16
14
19
17
16
10
1
13
7
5
90.150.ac
19
12
20
13
11
15
17
3
9
2
20
4
18
8
13

Артикул

Название

Примечание

Количество

1

84470735

PLATE

RH, Rear, Lower Cab

1шт.

2

84582900

PLATE

Autoguidance Valve

1шт.

3

84425615

GASKET,3mm Thk

LH, Rear, Bulkhead

1шт.

4

84425624

PLATE

LH, Rear, Bulkhead

1шт.

5

47644358

GASKET

Rear, Center, Bulkhead

1шт.

6

47641267

BULKHEAD

Rear, Center

1шт.

7

84563997

GASKET,3mm Thk

RH, Rear, Bulkhead

1шт.

8

84563994

PLATE

RH, Rear, Bulkhead

1шт.

9

86507064

FLANGE NUT,M5 x 0.8

2шт.

10

47666343

DECAL

LH, Connector Location

1шт.

11

47666351

DECAL

RH, Connector Location

1шт.

12

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

6шт.

13

87681210

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

14

84362497

DECAL

RH, Connector Location

1шт.

15

84575124

PLATE

Floor

4шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

17

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

4шт.

18

47605696

SUPPORT

ICM/UCM Bridge

1шт.

19

86610198

INSERT,M6 x 1

4шт.

20

84544095

SUPPORT

ICM/UCM Bridge, Base

2шт.

Выбрано товаров: 20
