Запчасти Case IH 8240 (90.118.CB[02]) - PLATFORM, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

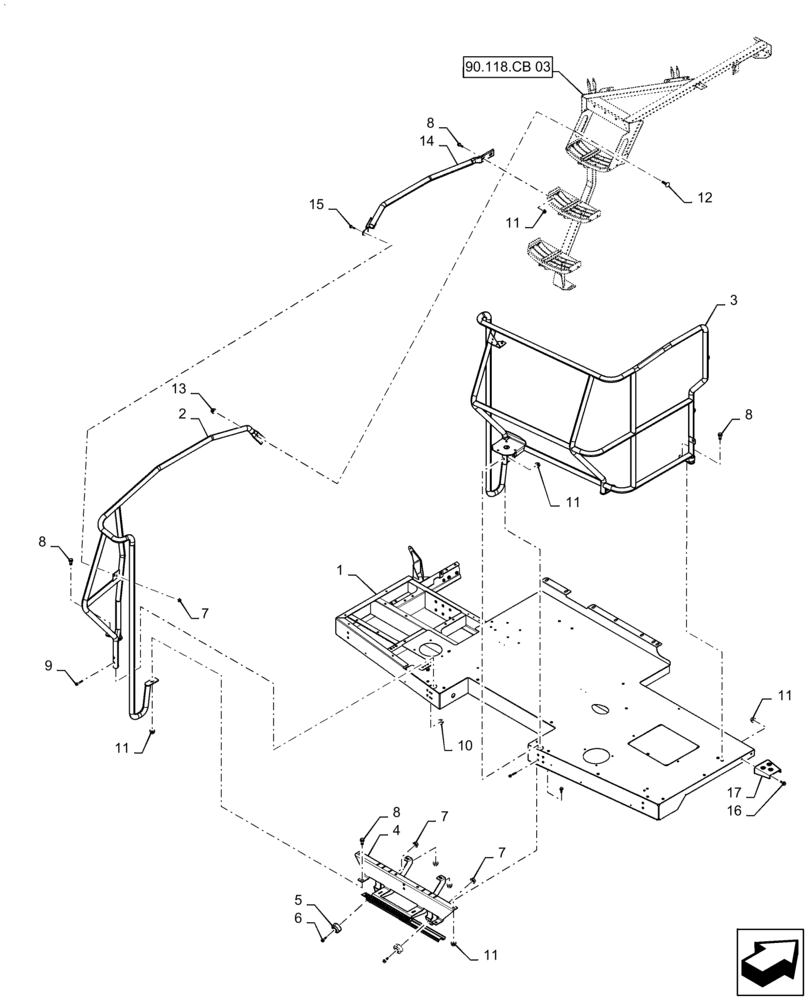

Схема запчастей Case IH 8240 - (90.118.CB[02]) - PLATFORM, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
6
11
16
11
3
7
7
11
10
14
13
9
7
1
2
11
5
17
90.118.cb 03
11
8
4
8
8
15
12

Артикул

Название

Примечание

Количество

1

47464732

PLATFORM

Rear Deck

1шт.

2

47419623

HANDRAIL

LH, Rear Deck

1шт.

3

47386532

HANDRAIL

RH, Rear Deck

1шт.

4

84382023

STEP

475mm W

1шт.

5

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

2шт.

6

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

7

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

8

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

16шт.

9

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

4шт.

10

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

12шт.

12

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

14

47426791

HANDRAIL

LH, Rear Deck

1шт.

15

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

16

87021006

BOLT,M10 x 26.4mm, Cl 10.9

2шт.

17

47548021

SUPPORT

Bracket, Beacon

1шт.

Выбрано товаров: 17
