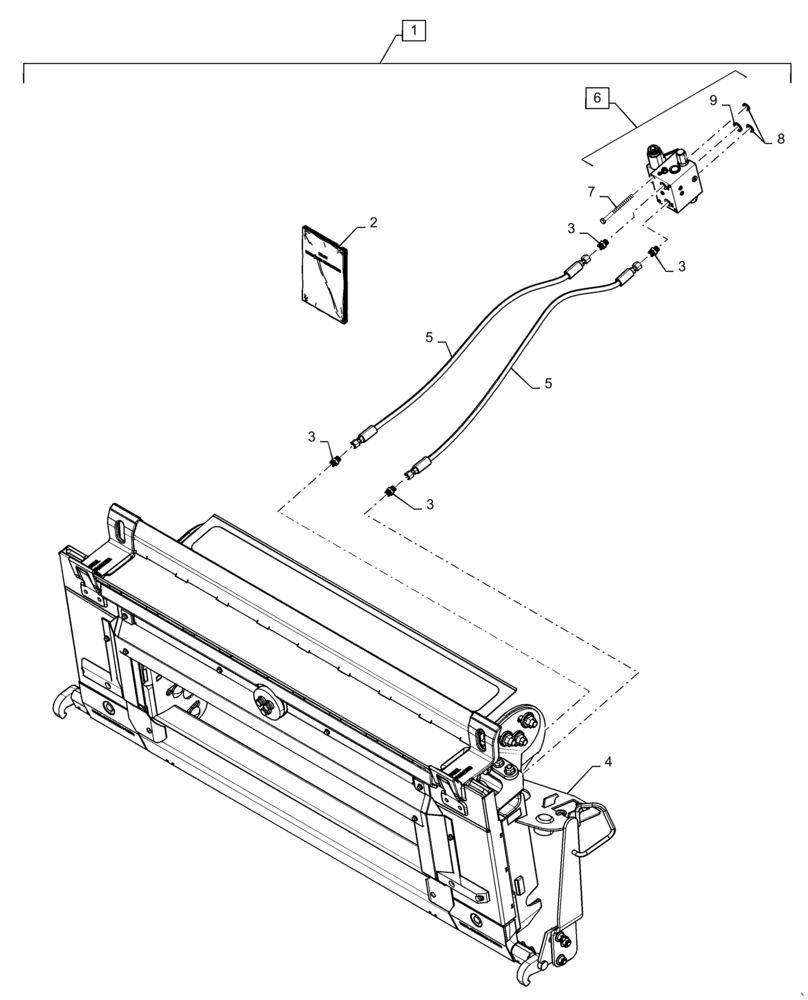

Запчасти Case IH 8240 (88.100.60[03]) - DIA KIT, HYDRAULIC VALVE, FEEDER (88) - ACCESSORIES

1

47620586

SERVICE KIT

Feeder Lateral Tilt Hydraulics, Incl 2 - 7

1шт.

2

87758712

INSTRUCTION

Kit, Lateral Tilt

1шт.

3

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

4шт.

4

47589753

KIT

Hydraulic Adapter Assy

1шт.

5

87109107

HOSE

Lateral Tilt, 10mm ID x 1065mm OAL

2шт.

6

86995690

CONTROL VALVE

Hydraulic, Lateral Tilt, Incl 8 - 9

1шт.

7

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

4шт.

8

271913

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

2шт.

9

122057

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.
