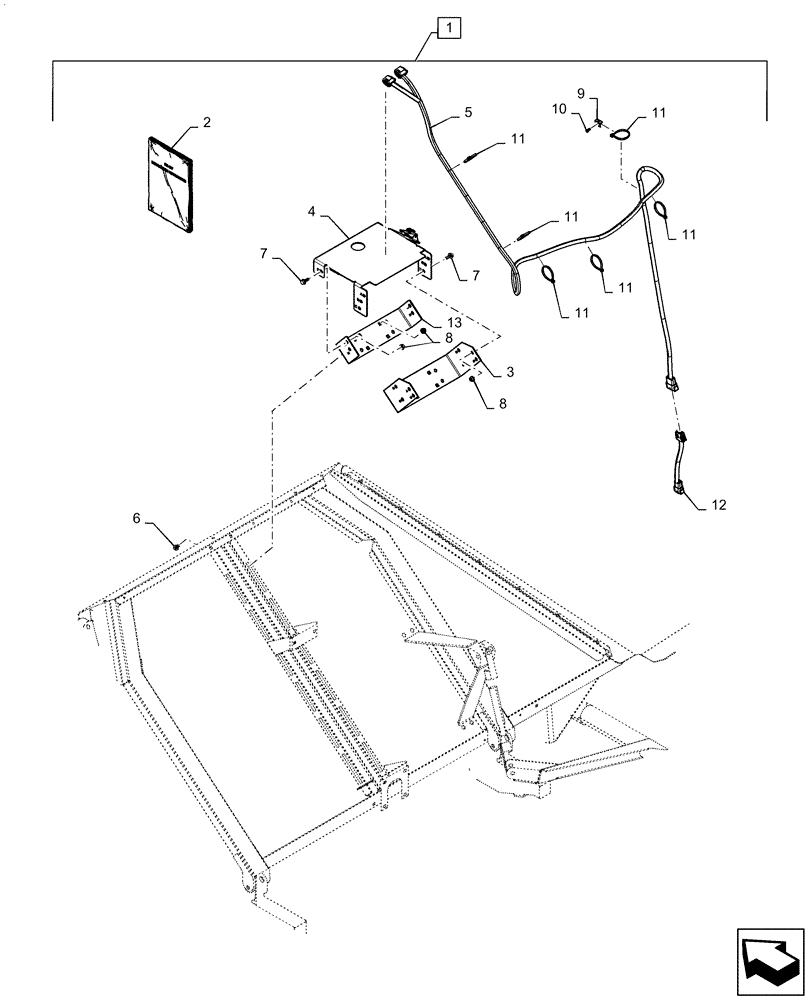

Запчасти Case IH 8240 (88.100.55[19]) - DIA KIT, BRACKET, GRAIN TANK, AUTOGUIDANCE (88) - ACCESSORIES

1

47888926

KIT

GPS Install, Incl 2 - 13

1шт.

2

47894830

INSTRUCTION

GPS Install

1шт.

3

87335677

BRACKET

Lower, GPS Mounting

1шт.

4

87488331

BRACKET

GPS Mount, Top

1шт.

5

47884971

WIRE HARNESS

GPS Antenna, Dual GPS Pigtail

1шт.

Replaces 47695045 For All 240 Series Machines

1шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

11

86566989

CABLE TIE,208mm L

6шт.

12

47894845

WIRE HARNESS

Telematics Jumper

1шт.

13

87335635

BRACKET

Upper, GPS Mounting

1шт.
