Запчасти Case IH 8240 (73.210.AD[03]) - VAR - 425360, 425428 - BELT, DRIVE, STRAW CHOPPER (73) - RESIDUE HANDLING

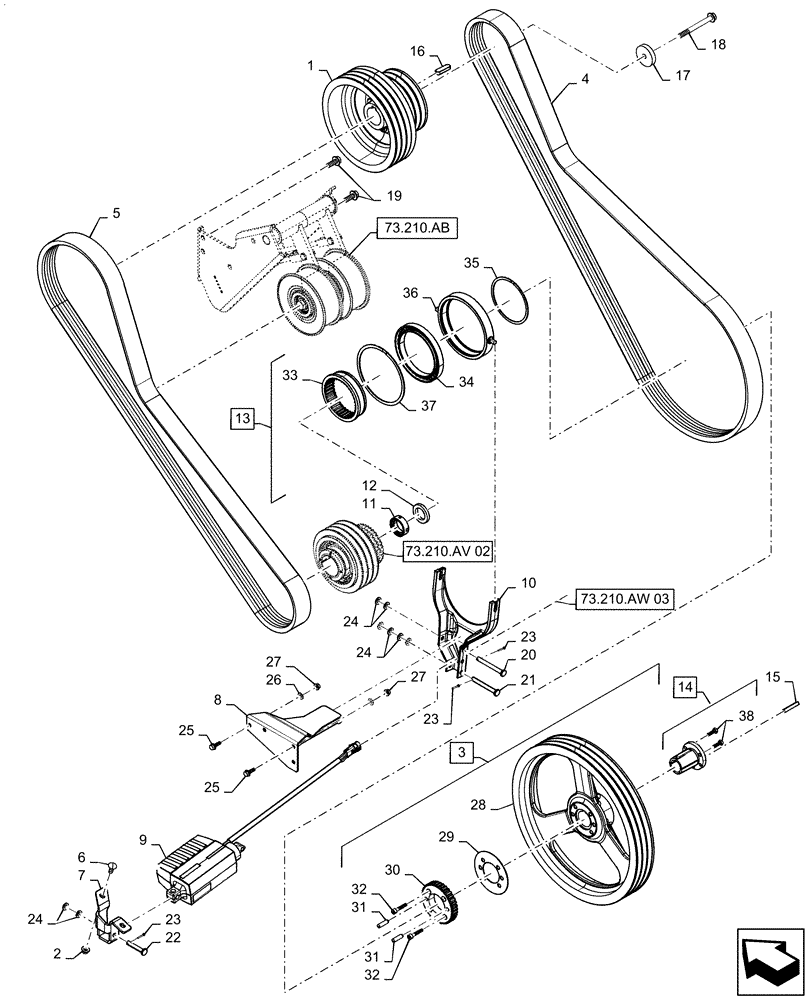

Схема запчастей Case IH 8240 - (73.210.AD[03]) - VAR - 425360, 425428 - BELT, DRIVE, STRAW CHOPPER (73) - RESIDUE HANDLING
25
9
20
33
32
37
24
73.210.aw 03
34
36
14
23
5
29
23
6
35
7
27
19
13
27
32
31
17
18
15
21
16
8
30
10
1
31
4
73.210.ab
73.210.av 02
22
26
3
2
12
11
28
38
24
25
24
23

Артикул

Название

Примечание

Количество

1

87281239

PULLEY,275mm OD

Chopper Drive

1шт.

2

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

3

84229854

PULLEY

Assy, Copper, Incl 28 - 32

1шт.

4

86517680

V-BELT,3 Rib, 3045mm Nominal Length

1шт.

5

86976208

V-BELT,3 Rib, 2720mm Nominal Length

1шт.

6

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

7

47522312

MOUNT

Stroke Actuator

1шт.

8

47442197

BRACKET

Mounting, Stroke Actuator

1шт.

9

47469267

ACTUATOR

Stroke, 50mm Stroke

1шт.

10

84360257

YOKE

Shift Assy

1шт.

11

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

Locking, 3/8"-16 Set Screw

1шт.

12

84223290

SPACER,35.5mm ID x 54mm OD x 7.5mm OAL

Ring

1шт.

13

84229927

BEARING ASSY

Chopper Shift, Incl 33 - 37

1шт.

14

87107341

BUSHING,34.9mm ID x 74.6mm Thk

Incl 38

1шт.

15

87485

KEY,50.8mm OAL x 7.96mmThk

1шт.

16

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

17

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

18

87698845

BOLT,M12 x 70, Cl 10.9

1шт.

19

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

4шт.

20

87661862

PIN,10mm OD x 95mm L

1шт.

21

84529307

CLEVIS PIN,10mm OD x 90mm L

1шт.

22

379547

CLEVIS PIN,10mm OD x 60mm OAL

1шт.

23

130003

COTTER PIN,3mm OD x 30mm OAL

3шт.

24

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

25

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

27

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

28

87283586

PULLEY,467.7mm OD

47.625mm ID x 467.7mm OD x 65.8mm Thk

1шт.

29

87325137

PLATE

Chopper Shift, 60mm ID x 125mm OD

1шт.

30

47588891

SPLINED COUPLING

36 Tooth, 60mm ID x 116.891mm OD x 19.5mm Thk

1шт.

31

87301554

PIN,10mm OD x 35mm OAL

Dowel

2шт.

32

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

4шт.

33

84220769

COLLAR,36T

Shifter, 36 Tooth, 117.602mm ID x 129.991mm OD x 34mm Thk

1шт.

34

84229919

ROLLER BEARING,130mm ID x 165mm OD x 18mm W

1шт.

35

84360416

RETAINER

117.678mm ID x 124.028mm OD

1шт.

36

84230866

CARRIER

Assy, Bearing, 159mm ID

1шт.

37

84229924

RETAINER

160.197mm ID x 168.122mm OD

1шт.

38

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

Выбрано товаров: 38
