Запчасти Case IH 8240 (66.331.AK[01]) - VAR - 425388 - THRESHING CYLINDER, ROTOR (66) - THRESHING

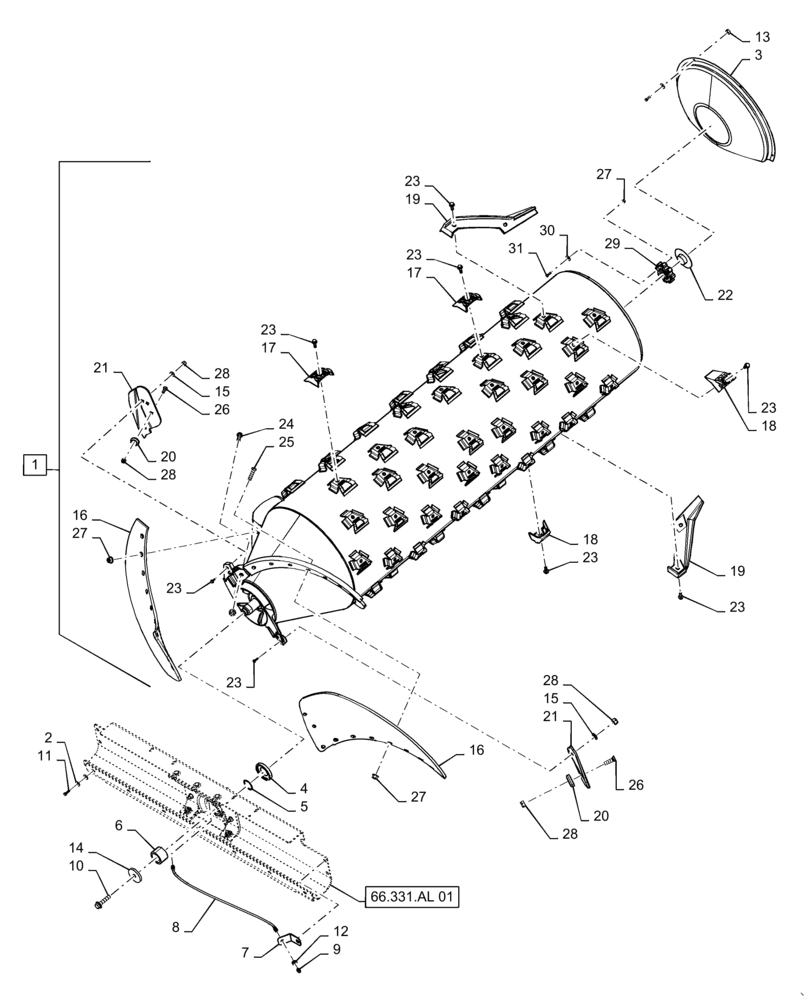

Схема запчастей Case IH 8240 - (66.331.AK[01]) - VAR - 425388 - THRESHING CYLINDER, ROTOR (66) - THRESHING
27
2
20
23
26
28
6
18
3
28
25
5
27
13
17
23
28
18
17
28
15
11
19
23
8
19
10
16
21
26
29
20
9
23
27
7
30
31
23
4
21
23
23
16
12
24
66.331.al 01
14
23
22
1
15

Артикул

Название

Примечание

Количество

1

87745163

ROTOR ASSY.

Large Tube, 76 Element, Grain, Incl 15 - 31

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

87744743

COVER ASSY

Rotor

1шт.

4

87323577

RING

Reluctor Wheel, Rotor Speed

1шт.

5

87284474

SHIM,51.18mm ID x 59.7mm OD x 1mm Thk

51.18mm ID x 59.7mm OD x 1mm Thk

1шт.

6

87281633

SPACER,50.88mm ID x 66.68mm OD x 44mm L

1шт.

7

87107260

SUPPORT

Bracket, Lube Line

1шт.

8

87107259

HOSE,3.02mm ID x 737mm L

1шт.

9

87414

LUBE NIPPLE,1/4" - 28

1шт.

10

86981489

BOLT,Hex, M16 x 70mm, Cl 10.9

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

12

134814

NUT,11/16"

11/16"

1шт.

13

9706690

NUT,M8 x 1.25, Cl 8

4шт.

14

86998693

WASHER,17.8mm ID x 76.2mm OD x 9.5mm Thk

1шт.

15

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

16

87378268

AUGER FLIGHT

Inlet

2шт.

17

84164540

RASP BAR

W/O Spike

64шт.

18

278820A5

RASP BAR

W/ Spike, Extended Wear

8шт.

19

1327676C1

BAR

Helical Kicker

2шт.

20

87315598

SHIELD

Bolt Protection

4шт.

21

87342923

WEAR PLATE

Rotor Flighting

2шт.

22

87697368

PLASTIC PLUG

Rotor Tube, Rear

1шт.

23

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

78шт.

24

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

2шт.

25

87281818

BOLT,M16 x 2.0 x 65mm, Cl 10.9

14шт.

26

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

M12 x 40mm, 10.9

4шт.

27

86512380

FLANGE NUT,M16

24шт.

28

412672

NUT,Hex, M12 x 1.75, Cl 10

6шт.

29

84222993

SPLINED COUPLING,12T

Rotor Drive

1шт.

30

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

31

86577946

BOLT,Hex, M16 x 80mm x 10.9

8шт.

Выбрано товаров: 31
