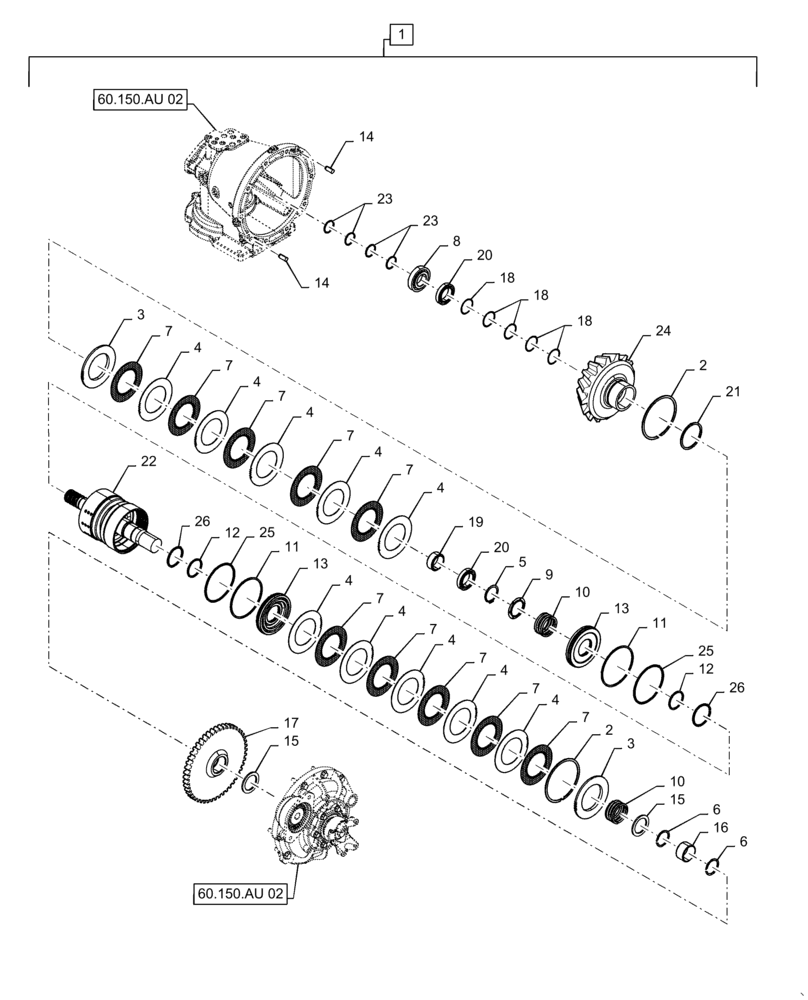

Запчасти Case IH 8240 (60.150.AU[01]) - VAR - 425465, 425361 - GEARBOX, FEEDER DRIVESHAFT, PTO (60) - PRODUCT FEEDING

1

84313649

GEARBOX

Feeder Drive, Incl 2 - 26

1шт.

2

345337A1

RING

Snap, 135mm ID x 147.7mm OD x 2.77mm Thk

2шт.

3

345336A1

CLUTCH DRIVING PLATE

Backing Plate

2шт.

4

345335A2

PLATE

Steel, 89.5mm ID x 142.18mm OD x 1.9mm Thk

10шт.

5

800-1152

SNAP RING,M52, External

1шт.

6

375560A1

RING, SNAP

45.8mm ID x 53.8mm OD x 2.05mm Thk

2шт.

7

84159803

PLATE

Friction

10шт.

8

3142394R91

TAPERED BEARING

40mm ID x 80mm OD x 19.75mm Thk

4шт.

9

232867A1

RETAINER

Spring

1шт.

10

228833A1

SPRING

Piston Return

2шт.

11

329896A1

SEAL,128.35mm ID x 135.63mm OD x 2.92mm Thk

Piston, External, 128.355mm ID x 135.625mm OD x 2.92mm Thk

2шт.

12

235660A1

SEAL,54.4mm ID x 60.75mm OD x 2.98mm Thk

Piston, Internal, 54.4mm ID x 60.75mm OD x 2.975mm Thk

2шт.

13

345005A1

PISTON

Clutch, 55.5mm ID x 134.5mm OD x 18.8mm Thk

2шт.

14

86978768

DOWEL,M12 x 30mm L

Case Halves

2шт.

15

87445174

THRUST WASHER

50mm ID x 70mm OD x 4mm Thk

2шт.

16

87445173

NEEDLE BEARING,50mm ID x 55mm OD x 30mm W

1шт.

17

87445172

GEAR

Reverse, Driven, 74 Tooth

1шт.

18

87445166

SHIM

45.5mm ID x 51mm OD x 0.15mm Thk

1шт.

18

87445167

SHIM

45.5mm ID x 51mm OD x 0.20mm Thk

1шт.

18

87445168

SHIM

45.5mm ID x 51mm OD x 0.30mm Thk

1шт.

18

87445169

SHIM

45.5mm ID x 51mm OD x 0.50mm Thk

1шт.

18

87445170

SHIM

45.5mm ID x 51mm OD x 0.13mm Thk

1шт.

19

87445165

SPACER

45mm ID x 55mm OD x 22.9mm OAL

1шт.

20

87445164

TAPERED BEARING,45mm ID x 68mm OD x 15mm W

2шт.

21

257277A1

SEALING RING,Locking, 79.8mm ID x 89.2mm OD x 3.5mm Thk

79.8mm ID x 89.2mm OD x 3.5mm Thk

1шт.

22

87442525

SHAFT

Main Output

1шт.

23

84205621

SEALING RING

37.64mm ID x 41.2mm OD x 2.3mm Thk

4шт.

24

87442526

BEVEL GEAR

35 Tooth

1шт.

25

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

2шт.

26

238-5141

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

2шт.
