Запчасти Case IH 8240 (60.105.AB[02]) - VAR - 722744, 425547, 425070, 425225, 425549 - CHAIN, FEEDER (60) - PRODUCT FEEDING

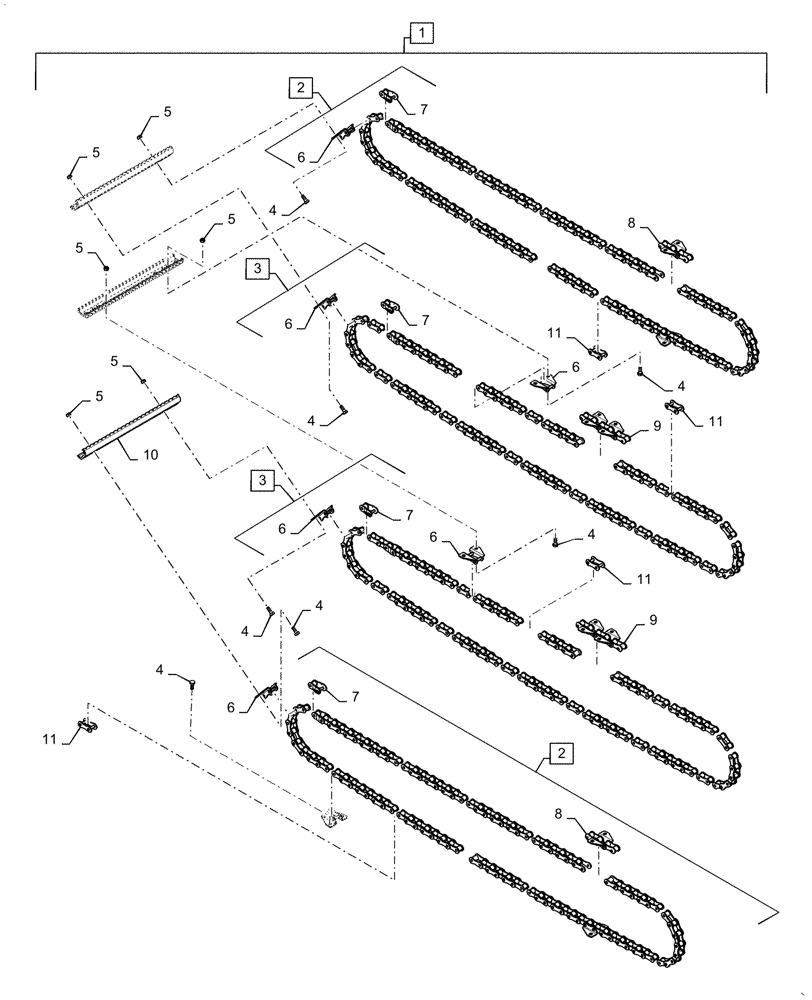

![Схема запчастей Case IH 8240 - (60.105.AB[02]) - VAR - 722744, 425547, 425070, 425225, 425549 - CHAIN, FEEDER (60) - PRODUCT FEEDING](https://partsell.ru/storage/images/caseih/5476123.png)
11
5
6
6
1
7
4
8
11
9
3
6
4
11
4
2
7
4
6
6
4
9
6
5
5
11
5
5
7
10
8
3
2
4
5
4
7
№
Артикул
Название
Примечание
Количество
1
84179639
CHAIN,Feeder, 100 Links x 41.4mm = 4140mm
Feeder, With Rock Trap, Incl 2 - 10
1шт.
2
84217950
CHAIN (AG),CA557, 100 Links x 41.4mm = 4140mm
Outer, Incl 6 - 8
2шт.
3
84217941
CHAIN (AG),CA557, 100 Links x 41.4mm = 4140mm
Inner, Incl 6 - 7, 9
2шт.
4
9846677
BOLT,M10 x 1.5 x 25mm, Cl 10.9
144шт.
5
84207195
NUT,M10 x 1.5
144шт.
6
87283352
CONNECTING LINK
Slat Mount
72шт.
7
1324835C1
OFFSET LINK
Connecting
4шт.
8
87283373
LINK,Chain, 3 Links x 41.4mm = 124.2mm
3 Link, Incl in 2
1шт.
9
87736384
LINK,Chain, 3 Links x 41.4mm = 124.2mm
5 Link, incl in 3
1шт.
10
84179662
SLAT
Feeder, Painted
36шт.
11
84257096
LINK,41.4mm Pitch, Threaded Pin
Master Link, Used For Service Only
4шт.
Выбрано товаров: 11
