Запчасти Case IH 8240 (55.510.AF[03]) - VAR - 425357, 425358 - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS

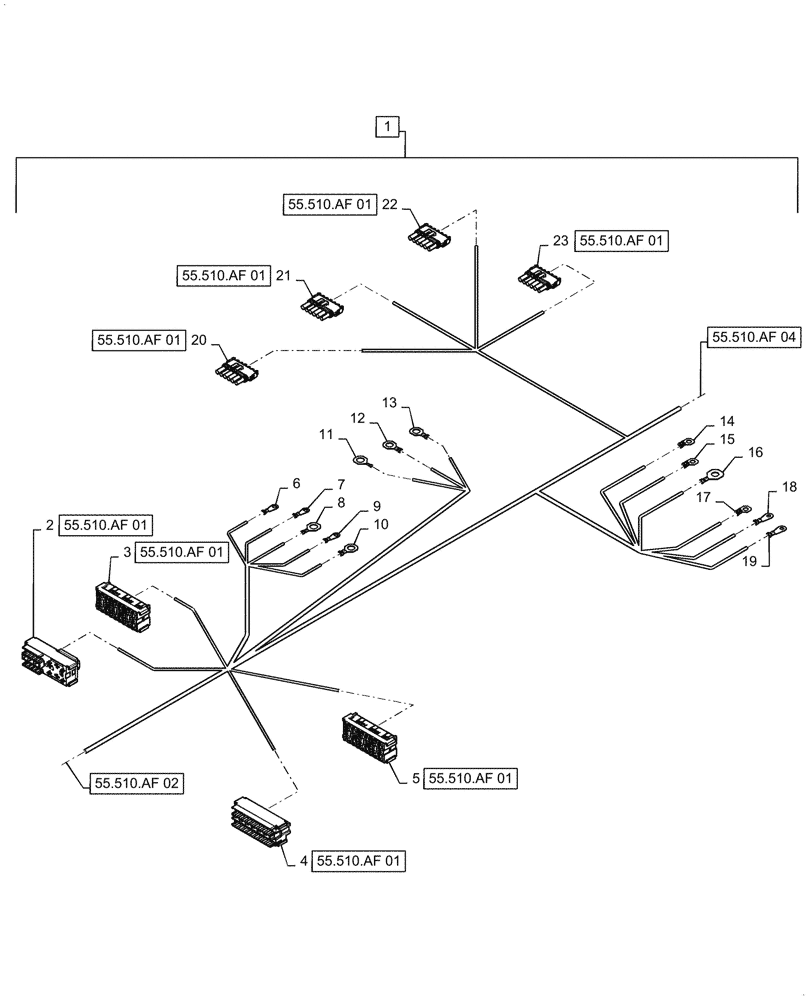

Схема запчастей Case IH 8240 - (55.510.AF[03]) - VAR - 425357, 425358 - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS
55.510.af 01
2
20
22
21
6
13
4
19
10
1
12
5
23
7
3
15
14
17
16
18
9
8
11
55.510.af 04
55.510.af 02
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01
55.510.af 01

Артикул

Название

Примечание

Количество

1

47884931

WIRE HARNESS

Cab Main, Incl 2 - 23, Continued

1шт.

2

87733595

FUSE HOLDER

Cab Main Fuse Module, X-729C

1шт.

2

84164961

TERMINAL

Cab Main Fuse Module, X-729C

2шт.

2

84123443

TERMINAL

Cab Main Fuse Module, X-729C

2шт.

2

84123442

TERMINAL

Cab Main Fuse Module, X-729C

8шт.

2

84127679

TERMINAL

Cab Main Fuse Module, X-729C

1шт.

3

84526304

MODULE

Cab Main Relay Module, X-729D

1шт.

3

84529032

TERMINAL

Cab Main Relay Module, X-729D

6шт.

3

84491251

TERMINAL

Cab Main Relay Module, X-729D

2шт.

3

84491250

TERMINAL

Cab Main Relay Module, X-729D

2шт.

4

87733581

FUSE BOX

Cab Main Fuse Module, X-729A

1шт.

4

84127682

ELEC CONNECTOR

Cab Main Fuse Module, X-729A

8шт.

4

84123442

TERMINAL

Cab Main Fuse Module, X-729A

13шт.

5

84526304

MODULE

Cab Main Relay Module, X-729B

1шт.

5

84491250

TERMINAL

Cab Main Relay Module, X-729B

7шт.

5

84491251

TERMINAL

Cab Main Relay Module, X-729B

3шт.

5

84529032

TERMINAL

Cab Main Relay Module, X-729B

10шт.

6

47735954

Unswitched 12V, X-959

TERMINAL

1шт.

7

47735954

Unswitched 12V, X-958

TERMINAL

1шт.

8

47735959

Unswitched 12V, X-960

TERMINAL

1шт.

9

47735954

Unswitched 12V, X-957

TERMINAL

1шт.

10

47735955

Unswitched 12V, X-955

TERMINAL

1шт.

11

47735961

Switched 12V, X-963

TERMINAL

1шт.

12

47735959

Switched 12V, X-967

TERMINAL

1шт.

13

47735957

Switched 12V, X-966

TERMINAL

1шт.

14

47700571

TERMINAL,Ring, M8

Ground 3, X-970

1шт.

15

47700571

TERMINAL,Ring, M8

Ground 3, X-971

1шт.

16

84278801

TERMINAL

Ground 3, X-972

1шт.

17

47700571

TERMINAL,Ring, M8

Ground 3, X-973

1шт.

18

47735962

Ground 3, X-974

TERMINAL

1шт.

19

47735962

Ground 3, X-975

TERMINAL

1шт.

20

87039236

ELEC CONNECTOR

UCM1 Diode Module, X-875

1шт.

20

84286327

SEAL

UCM1 Diode Module, X-875

6шт.

20

87692856

CABLE TERMINAL

UCM1 Diode Module, X-875

6шт.

21

87039236

ELEC CONNECTOR

UCM2 Diode Module, X-878

1шт.

21

87692856

CABLE TERMINAL

UCM2 Diode Module, X-878

3шт.

21

84286327

SEAL

UCM2 Diode Module, X-878

3шт.

22

87039236

ELEC CONNECTOR

Sieve Diode Module, X-877

1шт.

22

87692856

CABLE TERMINAL

Sieve Diode Module, X-877

5шт.

22

84286327

SEAL

Sieve Diode Module, X-877

5шт.

23

87039236

ELEC CONNECTOR

Chop To Swath Diode Module, X-876

1шт.

23

87692856

CABLE TERMINAL

Chop To Swath Diode Module, X-876

5шт.

23

84286327

SEAL

Chop To Swath Diode Module, X-876

5шт.

Выбрано товаров: 43
