Запчасти Case IH 8240 (55.404.CU[02]) - VAR - 425345, 425346, 425347, 425348, 425349, 425350 - HARNESS, UNLOADING TUBE, HIGH SPEED (55) - ELECTRICAL SYSTEMS

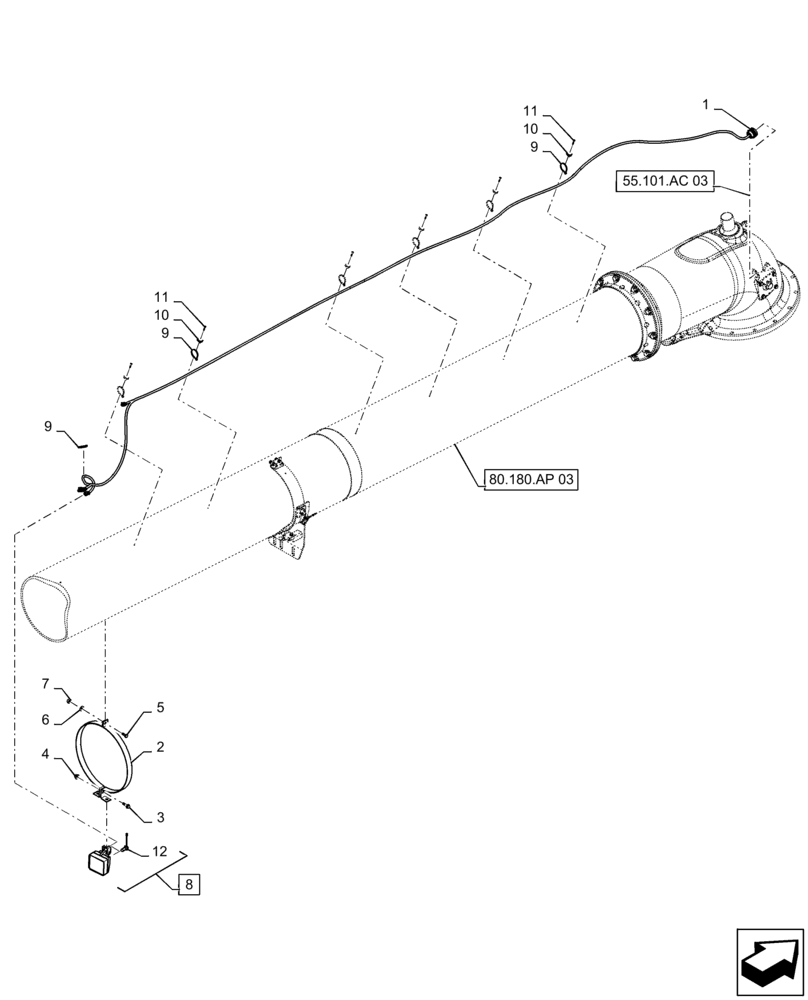

Схема запчастей Case IH 8240 - (55.404.CU[02]) - VAR - 425345, 425346, 425347, 425348, 425349, 425350 - HARNESS, UNLOADING TUBE, HIGH SPEED (55) - ELECTRICAL SYSTEMS
80.180.ap 03
7
2
1
9
3
11
55.101.ac 03
11
12
5
4
9
6
9
8
10
10

Артикул

Название

Примечание

Количество

1

84538980

WIRE HARNESS

High Capacitiy Tube With Extension - VAR - 425344

1шт.

1

47745764

WIRE HARNESS

High Capacity Tubes

1шт.

2

84481331

BRACKET

Unloader Light

2шт.

3

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

1шт.

4

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

7

100016

NUT,M10 x 1.5, Cl 8

1шт.

8

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Flood, Incl 12

1шт.

8

47682620

WORK LAMP,Flood, LED, 12V

LIGHT, WORK, LED

1шт.

9

86566989

CABLE TIE,208mm L

12шт.

10

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

11шт.

11

445394

RIVET,Pop, 3/16" x 1/2" OAL

11шт.

12

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

1шт.

Выбрано товаров: 14
