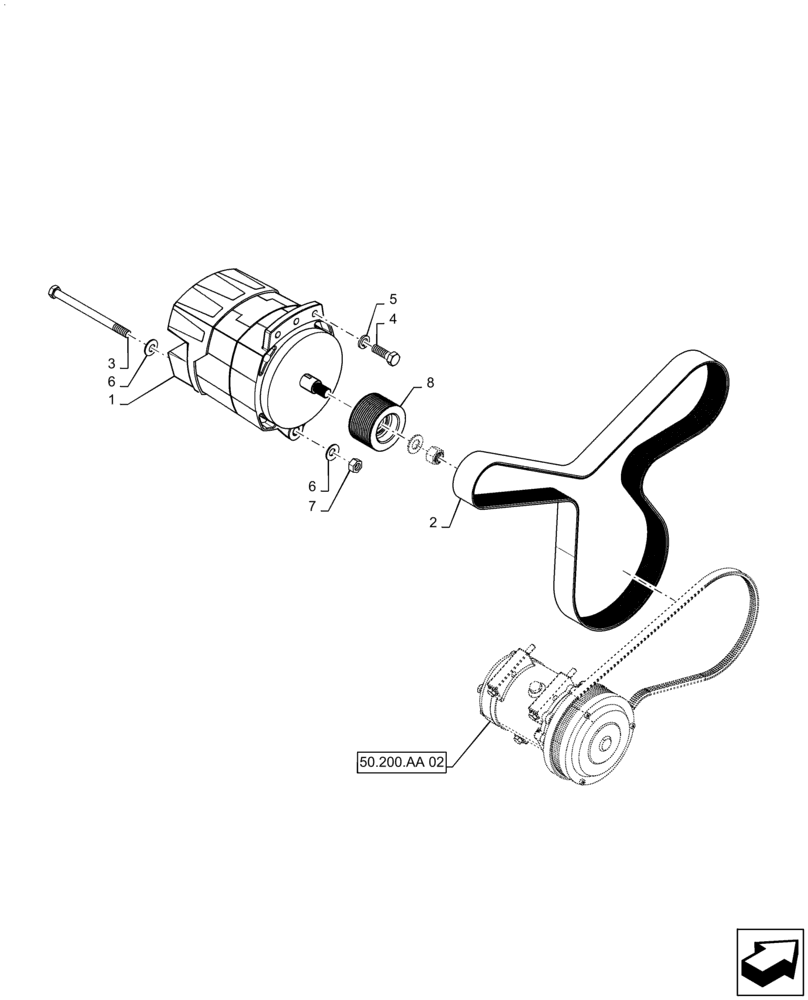

Запчасти Case IH 8240 (55.301.AD[02]) - ALTERNATOR (55) - ELECTRICAL SYSTEMS

1

87592254

ALTERNATOR,12V, 185A

12V, 185 Amp

1шт.

2

47513876

BELT

Multi-V, Alternator, 1870mm Nominal Length

1шт.

3

397393

BOLT,M12 x 1.75 x 167.68mm OAL, Cl 8.8

1шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

7

9706685

NUT,M12 x 1.75, Cl 8

1шт.

8

84247658

PULLEY

Alternator, 22.25mm ID x 61.4mm OD x 50mm W

1шт.
