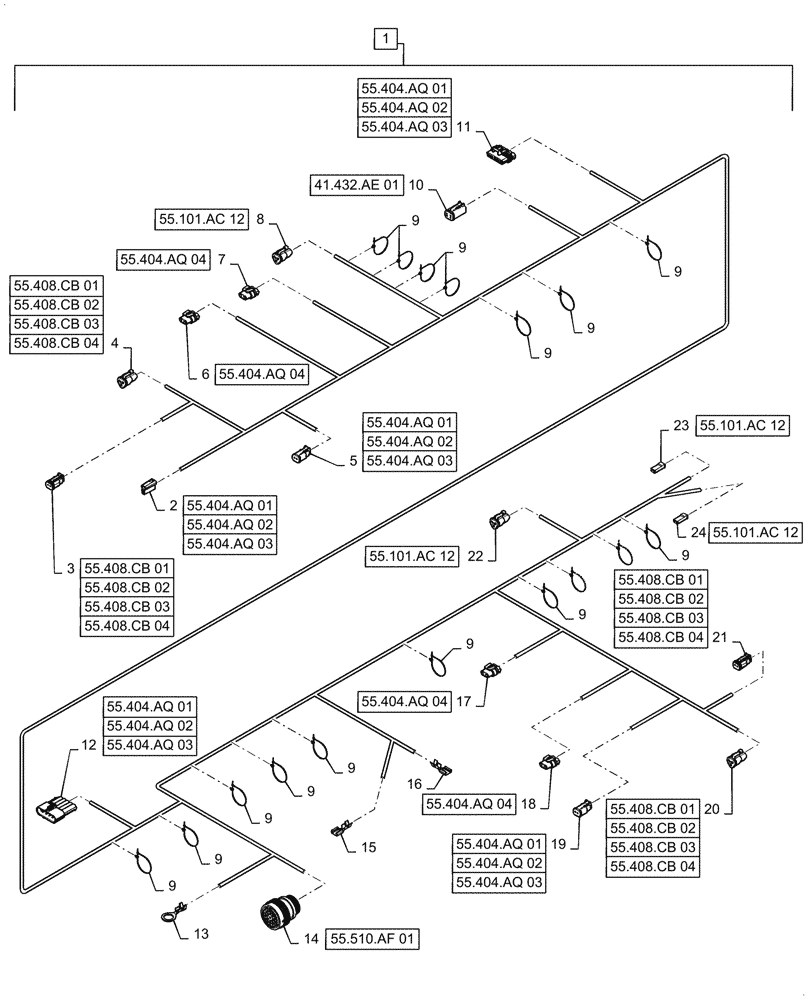

Запчасти Case IH 8240 (55.101.AC[25]) - PLATFORM WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

47823677

WIRE HARNESS

Platform, Incl 2 - 24

1шт.

2

87693325

ELEC CONNECTOR,Female, 2 Cavities

LH Service Socket, X-161

1шт.

2

87693341

ELEC. TERMINAL PIN

LH Service Socket, X-161

2шт.

3

87695909

ELEC CONNECTOR,Female, 2 Pole

LH Marker Light Harness, X-162

1шт.

3

84068583

PLUG,12 - 16 Ga, White

LH Marker Light Harness, X-162

1шт.

3

87712180

ELEC CONNECTOR

LH Marker Light Harness, X-162

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Marker Light Harness, X-162

1шт.

4

87695580

ELEC CONNECTOR,Female, 3 Pole

LH Marker Light Harness, X-160

1шт.

4

84074639

LOCKING TAB,Wedge Lock

LH Marker Light Harness, X-160

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Marker Light Harness, X-160

3шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Lower Work Light, X-163

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

LH Lower Work Light, X-163

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

LH Lower Work Light, X-163

2шт.

6

87686685

WIRE CONNECTOR,Female

LH Low Beam, X-164

1шт.

6

87686740

RETAINER

LH Low Beam, X-164

1шт.

6

87680656

CONTACT

LH Low Beam, X-164

2шт.

6

84286327

SEAL

LH Low Beam, X-164

2шт.

7

87686685

WIRE CONNECTOR,Female

LH High Beam, X-414

1шт.

7

87686740

RETAINER

LH High Beam, X-414

1шт.

7

87680656

CONTACT

LH High Beam, X-414

2шт.

7

84286327

SEAL

LH High Beam, X-414

2шт.

8

87695580

ELEC CONNECTOR,Female, 3 Pole

Longitudinal Inclination Sensor, X-192

1шт.

8

84074639

LOCKING TAB,Wedge Lock

Longitudinal Inclination Sensor, X-192

1шт.

8

84391165

HOUSING,Male, 3 Pins

Longitudinal Inclination Sensor, X-192

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Longitudinal Inclination Sensor, X-192

3шт.

9

87741307

SECURING STRAP

Fir Tree

16шт.

10

87694153

CONTACT HOUSING,Female, 4 Cavities

Autoguidance Harness, X-476

1шт.

10

87694148

ELEC CONNECTOR

Autoguidance Harness, X-476

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Autoguidance Harness, X-476

4шт.

11

87693690

ELEC CONNECTOR

Headlights Harness, X-218A

1шт.

11

84199352

ELEC CONNECTOR

Headlights Harness, X-218A

1шт.

11

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Headlights Harness, X-218A

3шт.

11

87680710

SEAL

Headlights Harness, X-218A

1шт.

11

87680656

CONTACT

Headlights Harness, X-218A

2шт.

11

84286327

SEAL

Headlights Harness, X-218A

4шт.

12

87693751

ELEC CONNECTOR

Headlights Harness, X-218B

1шт.

12

87686742

PLUG

Headlights Harness, X-218B

2шт.

12

87704922

LOCK

Headlights Harness, X-218B

1шт.

12

87703319

ELEC. TERMINAL PIN

Headlights Harness, X-218B

1шт.

12

87680710

SEAL

Headlights Harness, X-218B

1шт.

12

87687620

TERMINAL

Headlights Harness, X-218B

2шт.

12

84286327

SEAL

Headlights Harness, X-218B

2шт.

13

84127303

TERMINAL

Headlights Harness, X-218B

1шт.

14

87704434

ELEC CONNECTOR

Cab Main Harness, X-031

1шт.

14

84068583

PLUG,12 - 16 Ga, White

Cab Main Harness, X-031

2шт.

14

87696197

NUT

Cab Main Harness, X-031

1шт.

14

87696199

SEALING RING

Cab Main Harness, X-031

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cab Main Harness, X-031

18шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cab Main Harness, X-031

3шт.

15

87680219

TERMINAL

Horn (+), X-172

1шт.

16

87680219

TERMINAL

Horn Ground, X-173

1шт.

17

87686685

WIRE CONNECTOR,Female

RH High Beam, X-415

1шт.

17

87686740

RETAINER

RH High Beam, X-415

1шт.

17

87680656

CONTACT

RH High Beam, X-415

2шт.

17

84286327

SEAL

RH High Beam, X-415

2шт.

18

87686685

WIRE CONNECTOR,Female

RH Low Beam, X-169

1шт.

18

87686740

RETAINER

RH Low Beam, X-169

1шт.

18

87680656

CONTACT

RH Low Beam, X-169

2шт.

18

84286327

SEAL

RH Low Beam, X-169

2шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Lower Work Light, X-168

1шт.

19

84074638

LOCKING TAB,Locking Wedge, Green

RH Lower Work Light, X-168

1шт.

19

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

RH Lower Work Light, X-168

2шт.

20

87695580

ELEC CONNECTOR,Female, 3 Pole

RH Marker Light Harness, X-165

1шт.

20

84074639

LOCKING TAB,Wedge Lock

RH Marker Light Harness, X-165

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Marker Light Harness, X-165

3шт.

21

87695909

ELEC CONNECTOR,Female, 2 Pole

RH Marker Light Harness, X-166

1шт.

21

84068583

PLUG,12 - 16 Ga, White

RH Marker Light Harness, X-166

1шт.

21

87712180

ELEC CONNECTOR

RH Marker Light Harness, X-166

1шт.

21

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Marker Light Harness, X-166

1шт.

22

87695580

ELEC CONNECTOR,Female, 3 Pole

Lateral Inclination Sensor, X-170

1шт.

22

84074639

LOCKING TAB,Wedge Lock

Lateral Inclination Sensor, X-170

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Lateral Inclination Sensor, X-170

3шт.

23

87581782

ELEC CONNECTOR,Female

Brake Pressure Switch, X-153

1шт.

23

87702666

ELEC. TERMINAL PIN

Brake Pressure Switch, X-153

1шт.

24

87581782

ELEC CONNECTOR,Female

Brake Pressure Switch, X-154

1шт.

24

87702666

ELEC. TERMINAL PIN

Brake Pressure Switch, X-154

1шт.
