Запчасти Case IH 8240 (55.101.AC[19]) - FRONT LOWER FRAME WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

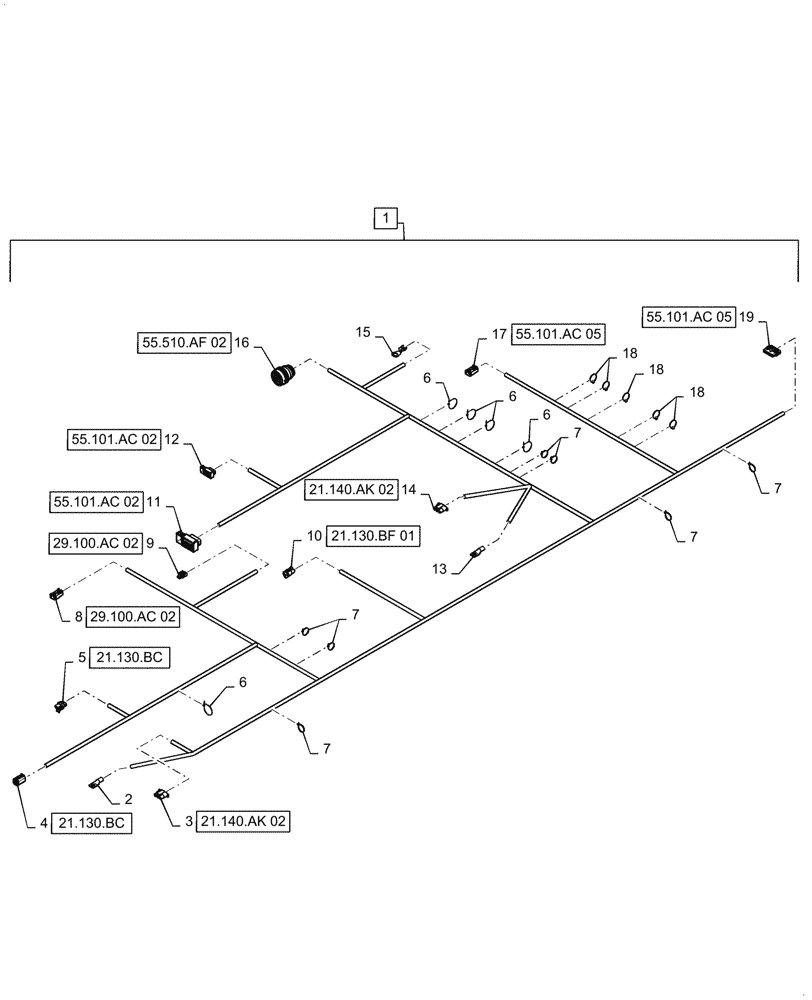

Схема запчастей Case IH 8240 - (55.101.AC[19]) - FRONT LOWER FRAME WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS
21.140.ak 02
17
7
2
11
15
4
8
13
6
18
7
1
3
6
19
7
18
6
7
7
10
6
9
12
18
14
16
5
55.510.af 02
55.101.ac 05
55.101.ac 05
21.130.bc
21.130.bc
21.130.bf 01
29.100.ac 02
29.100.ac 02
55.101.ac 02
55.101.ac 02
21.140.ak 02

Артикул

Название

Примечание

Количество

1

47651007

WIRE HARNESS

Front Lower, Incl 2 - 19

1шт.

2

84138836

TERMINAL

LH Brake Ground, X-294

1шт.

3

87691459

LH Break Wear Switch, X-084

ELEC CONNECTOR

1шт.

3

87691484

LH Break Wear Switch, X-084

ELEC. TERMINAL PIN

2шт.

4

87708148

ELEC CONNECTOR

Trans Shift Position, X-093

1шт.

4

87694150

LOCKING TAB,Wedge Lock

Trans Shift Position, X-093

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Trans Shift Position, X-093

6шт.

5

87679438

WIRE CONNECTOR,Female

Trans Shift Motor, X-094

1шт.

5

84806458

COLLAR

Trans Shift Motor, X-094

1шт.

5

87680710

SEAL

Trans Shift Motor, X-094

2шт.

5

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Trans Shift Motor, X-094

2шт.

6

87741307

SECURING STRAP

Fir Tree

5шт.

7

84266055

PLASTIC

Wire Tie

7шт.

8

87711966

PLUG

Ground Drive Motor, X-092

1шт.

8

87712180

ELEC CONNECTOR

Ground Drive Motor, X-092

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Ground Drive Motor, X-092

2шт.

9

82012093

WIRE CONNECTOR

Hydrostat Motor Temp, X-091

1шт.

9

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Hydrostat Motor Temp, X-091

2шт.

10

87695580

ELEC CONNECTOR,Female, 3 Pole

Ground RPM, X-087

1шт.

10

84074639

LOCKING TAB,Wedge Lock

Ground RPM, X-087

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Ground RPM, X-087

3шт.

11

84155775

MULTIPOLE CONNECTOR,Female, 24 Cavities

H-Bridge 1, X-023

1шт.

11

84128189

PLUG

H-Bridge 1, X-023

12шт.

11

87714248

LOCKING TAB,Wedge Lock

H-Bridge 1, X-023

1шт.

11

87708543

CABLE TERMINAL

H-Bridge 1, X-023

11шт.

11

87697192

CABLE TERMINAL,Tin, 1.00 - 2.50mm

H-Bridge 1, X-023

1шт.

12

87699386

MULTIPOLE CONNECTOR,Female, 24 Pole

H-Bridge 1, X-024

1шт.

12

84128189

PLUG

H-Bridge 1, X-024

9шт.

12

87714248

LOCKING TAB,Wedge Lock

H-Bridge 1, X-024

1шт.

12

87708543

CABLE TERMINAL

H-Bridge 1, X-024

11шт.

12

87697192

CABLE TERMINAL,Tin, 1.00 - 2.50mm

H-Bridge 1, X-024

4шт.

13

84138836

TERMINAL

RH Brake Ground, X-295

1шт.

14

87691459

RH Brake Wear Switch, X-085

ELEC CONNECTOR

1шт.

14

87691484

RH Brake Wear Switch, X-085

ELEC. TERMINAL PIN

2шт.

15

84127303

TERMINAL

Ground 6, X-945

1шт.

16

87704432

Cab Main, X-011

ELEC CONNECTOR

1шт.

16

84068583

PLUG,12 - 16 Ga, White

Cab Main, X-011

2шт.

16

87696197

NUT

Cab Main, X-011

1шт.

16

87696199

SEALING RING

Cab Main, X-011

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cab Main, X-011

15шт.

16

87695923

TERMINAL

Cab Main, X-011

4шт.

17

87711966

PLUG

Cleaning Fan RPM Sensor, X-089

1шт.

17

87712180

ELEC CONNECTOR

Cleaning Fan RPM Sensor, X-089

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cleaning Fan RPM Sensor, X-089

2шт.

18

84332778

STRAP,148mm L x 16mm W

5шт.

19

87693690

ELEC CONNECTOR

Shoe Actuator, X-088

1шт.

19

84199352

ELEC CONNECTOR

Shoe Actuator, X-088

1шт.

19

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Shoe Actuator, X-088

2шт.

19

87680710

SEAL

Shoe Actuator, X-088

2шт.

19

87680656

CONTACT

Shoe Actuator, X-088

3шт.

19

87680701

SEAL

Shoe Actuator, X-088

3шт.

Выбрано товаров: 51
