Запчасти Case IH 8240 (55.101.AC[18]) - MAIN FRAME EXTENSION WIRE HARNESS & CONNECTOR, CONT. (55) - ELECTRICAL SYSTEMS

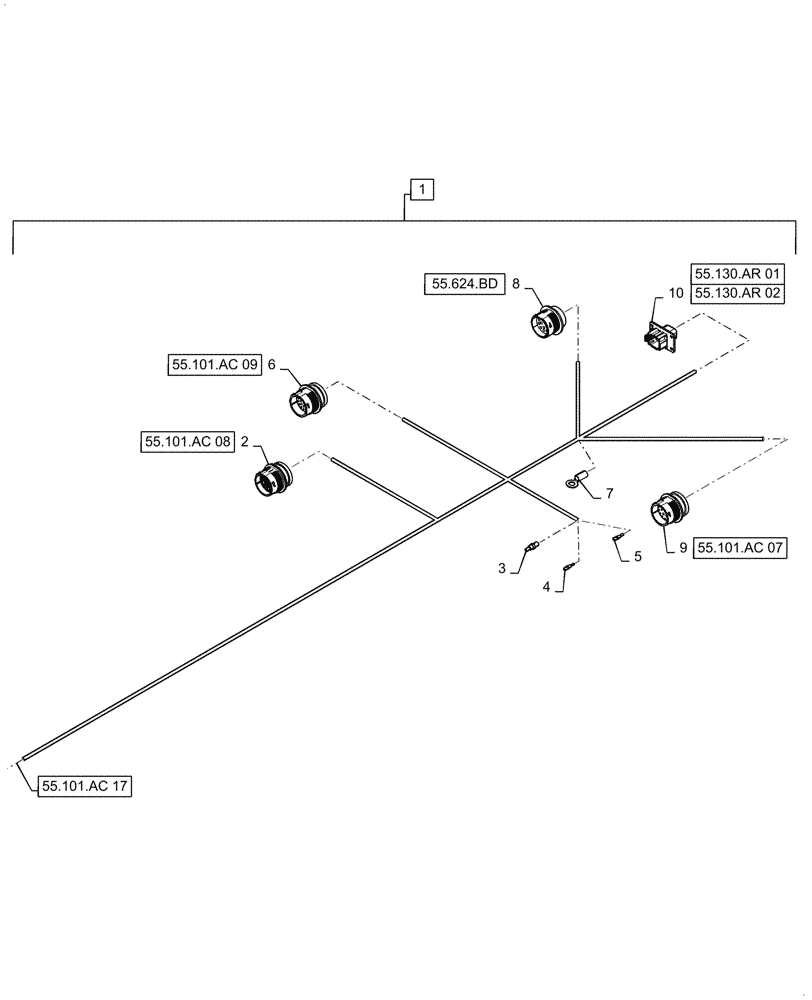

Схема запчастей Case IH 8240 - (55.101.AC[18]) - MAIN FRAME EXTENSION WIRE HARNESS & CONNECTOR, CONT. (55) - ELECTRICAL SYSTEMS
55.130.ar 01
2
5
4
6
7
8
9
10
1
3
55.130.ar 02
55.101.ac 08
55.101.ac 17
55.624.bd
55.101.ac 09
55.101.ac 07

Артикул

Название

Примечание

Количество

1

47427779

WIRE HARNESS

Main Frame Expansion, Incl 2 - 10

1шт.

2

47635336

ELEC CONNECTOR

To Straw Hood Harness, X-103

1шт.

2

47696698

To Straw Hood Harness, X-103

ELEC CONNECTOR

1шт.

2

84068583

PLUG,12 - 16 Ga, White

To Straw Hood Harness, X-103

5шт.

2

87695623

ELEC. TERMINAL PIN

To Straw Hood Harness, X-103

24шт.

2

87697956

TERMINAL

To Straw Hood Harness, X-103

2шт.

3

87716571

ELEC. TERMINAL PIN

To Relay Terminal 31, X-063B

1шт.

4

87696144

ELEC. TERMINAL PIN,Male, 2 - 3.5 mm2

To Relay Terminal 50, X-063

1шт.

5

87696144

ELEC. TERMINAL PIN,Male, 2 - 3.5 mm2

To Relay Terminal 50A, X-063A

1шт.

6

84320483

To Lower Rear Harness, X-072

ELEC CONNECTOR

1шт.

6

84068583

PLUG,12 - 16 Ga, White

To Lower Rear Harness, X-072

1шт.

6

47696698

To Lower Rear Harness, X-072

ELEC CONNECTOR

1шт.

6

87695623

ELEC. TERMINAL PIN

To Lower Rear Harness, X-072

18шт.

6

87697956

TERMINAL

To Lower Rear Harness, X-072

4шт.

7

84399574

TERMINAL,5/16" Ring, SAE 10 - 12

Ground 9, X-083

1шт.

8

87703902

ELEC CONNECTOR

To Lower Rear Harness, X-072

1шт.

8

84068583

PLUG,12 - 16 Ga, White

To Lower Rear Harness, X-072

3шт.

8

87697956

TERMINAL

To Lower Rear Harness, X-072

6шт.

8

87695623

ELEC. TERMINAL PIN

To Lower Rear Harness, X-072

5шт.

9

84320532

ELEC CONNECTOR

To Straw Hood Harness, X-102

1шт.

9

84068583

PLUG,12 - 16 Ga, White

To Straw Hood Harness, X-102

7шт.

9

87695623

ELEC. TERMINAL PIN

To Straw Hood Harness, X-102

13шт.

10

87695891

ELEC CONNECTOR

To Trailer Hitch Harness, X-285

1шт.

10

84068583

PLUG,12 - 16 Ga, White

To Trailer Hitch Harness, X-285

3шт.

10

84068583

PLUG,12 - 16 Ga, White

To Trailer Hitch Harness, X-285

1шт.

10

84806919

PLUG,Wedge Lock

To Trailer Hitch Harness, X-285

1шт.

10

87695623

ELEC. TERMINAL PIN

To Trailer Hitch Harness, X-285

5шт.

Выбрано товаров: 27
