Запчасти Case IH 8240 (55.101.AC[15]) - LH MAIN FRAME WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

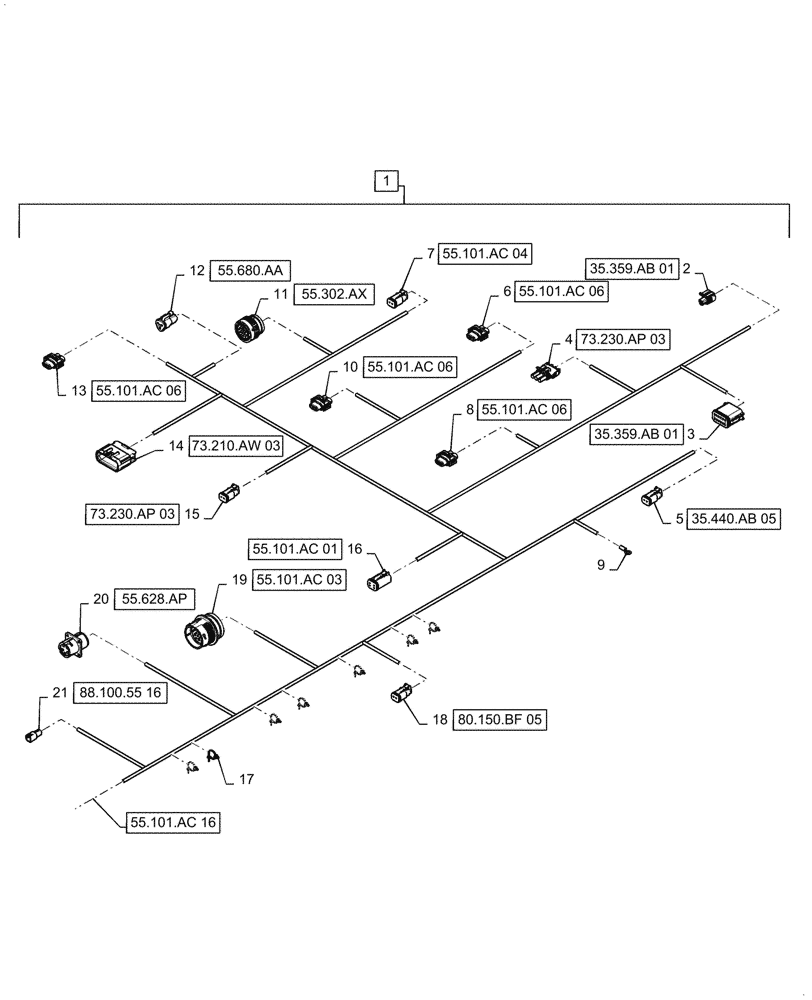

Схема запчастей Case IH 8240 - (55.101.AC[15]) - LH MAIN FRAME WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS
55.628.ap
3
12
1
4
20
8
6
14
16
11
21
9
7
15
5
17
10
13
18
2
19
73.230.ap 03
73.230.ap 03
88.100.55 16
55.101.ac 04
55.101.ac 03
55.101.ac 01
73.210.aw 03
55.101.ac 06
55.101.ac 06
55.101.ac 06
55.101.ac 06
55.101.ac 16
55.680.aa
35.440.ab 05
80.150.bf 05
55.302.ax
35.359.ab 01
35.359.ab 01

Артикул

Название

Примечание

Количество

1

47556610

WIRE HARNESS

LH Main Frame, Incl 2 - 21

1шт.

2

84078681

WIRE CONNECTOR,Female

Header Lift Pressure, X-279

1шт.

2

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Header Lift Pressure, X-279

3шт.

3

87695592

CONTACT HOUSING,Female, 12 Pole

Main Valves, X-022

1шт.

3

87695651

LOCKING TAB,Wedge Lock

Main Valves, X-022

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Main Valves, X-022

12шт.

4

87644909

WIRE CONNECTOR,Female, 3 Pins

Knife Bank Angle, X-394

1шт.

4

87686742

PLUG

Knife Bank Angle, X-394

1шт.

4

87692880

CABLE TERMINAL

Knife Bank Angle, X-394

3шт.

4

87680701

SEAL

Knife Bank Angle, X-394

3шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

Cross Auger Solenoid, X-600

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Cross Auger Solenoid, X-600

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cross Auger Solenoid, X-600

2шт.

6

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

LH Rear Shield Light, X-346

1шт.

6

87690602

LOCK

LH Rear Shield Light, X-346

1шт.

6

87680656

CONTACT

LH Rear Shield Light, X-346

1шт.

6

84247557

ELEC. TERMINAL PIN

LH Rear Shield Light, X-346

1шт.

6

87680701

SEAL

LH Rear Shield Light, X-346

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

Clean Grain RPM, X-182

1шт.

7

84074638

LOCKING TAB,Locking Wedge, Green

Clean Grain RPM, X-182

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Clean Grain RPM, X-182

2шт.

8

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

Sieve Light, X-234

1шт.

8

87690602

LOCK

Sieve Light, X-234

1шт.

8

87680656

CONTACT

Sieve Light, X-234

2шт.

8

87680701

SEAL

Sieve Light, X-234

2шт.

9

84399574

TERMINAL,5/16" Ring, SAE 10 - 12

Rear Ground, X-949

1шт.

10

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

LH Front Shield Light, X-345

1шт.

10

87690602

LOCK

LH Front Shield Light, X-345

1шт.

10

87680656

CONTACT

LH Front Shield Light, X-345

1шт.

10

84247557

ELEC. TERMINAL PIN

LH Front Shield Light, X-345

1шт.

10

87680701

SEAL

LH Front Shield Light, X-345

2шт.

11

47673034

Battery Box, X-230

ELEC CONNECTOR

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Battery Box, X-230

6шт.

12

87695580

ELEC CONNECTOR,Female, 3 Pole

Steering AGR, X-462

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Steering AGR, X-462

3шт.

13

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

Sieve Light Rear, X-447

1шт.

13

87686742

PLUG

Sieve Light Rear, X-447

1шт.

13

87690602

LOCK

Sieve Light Rear, X-447

1шт.

13

87680656

CONTACT

Sieve Light Rear, X-447

2шт.

13

87680701

SEAL

Sieve Light Rear, X-447

2шт.

14

84137497

Chop to Swath, X-219

ELEC CONNECTOR

1шт.

14

87745379

PLUG

Chop to Swath, X-219

1шт.

14

84193152

TERMINAL

Chop to Swath, X-219

8шт.

14

84143101

SEAL

Chop to Swath, X-219

8шт.

14

87697671

TERMINAL

Chop to Swath, X-219

2шт.

14

87698532

SEAL,2.5 - 3.2mm

Chop to Swath, X-219

2шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

Knife Bank Position, X-621

1шт.

15

84074638

LOCKING TAB,Locking Wedge, Green

Knife Bank Position, X-621

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Knife Bank Position, X-621

2шт.

16

87694153

CONTACT HOUSING,Female, 4 Cavities

LH Rotor Loss, X-191

1шт.

16

84074640

LOCKING TAB,Wedge Lock

LH Rotor Loss, X-191

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Rotor Loss, X-191

3шт.

17

84266055

PLASTIC

Clip, Fir Tree

7шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

Covers Solenoid, X-289

1шт.

18

84074638

LOCKING TAB,Locking Wedge, Green

Covers Solenoid, X-289

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Covers Solenoid, X-289

2шт.

19

47673033

Grain Tank to Unload Tube, X-635

ELEC CONNECTOR

1шт.

19

87695623

ELEC. TERMINAL PIN

Grain Tank to Unload Tube, X-635

10шт.

19

87704524

ELEC CONNECTOR,Pin, Size 12

Grain Tank to Unload Tube, X-635

4шт.

20

87706918

ELEC CONNECTOR

Concave Mirror, X-456

1шт.

20

87695623

ELEC. TERMINAL PIN

Concave Mirror, X-456

5шт.

21

87357892

ELEC CONNECTOR

Unload Camera, X-074

1шт.

21

87357895

PLUG

Unload Camera, X-074

1шт.

21

87357889

WIRE CONNECTOR

Unload Camera, X-074

1шт.

21

87357894

WIRE CONNECTOR

Unload Camera, X-074

4шт.

Выбрано товаров: 65
