Запчасти Case IH 8240 (55.101.AC[08]) - STRAW HOOD, WIRE HARNESS, REAR (55) - ELECTRICAL SYSTEMS

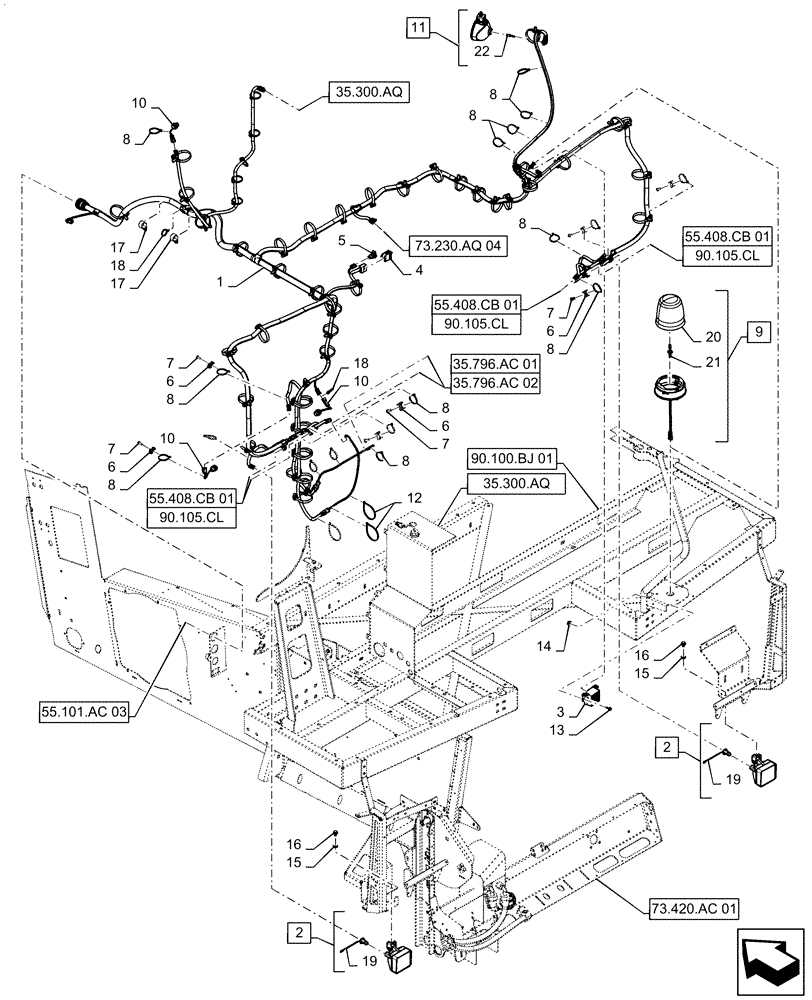

Схема запчастей Case IH 8240 - (55.101.AC[08]) - STRAW HOOD, WIRE HARNESS, REAR (55) - ELECTRICAL SYSTEMS
10
17
7
10
19
12
8
8
90.100.bj 01
35.300.aq
14
90.105.cl
2
18
16
7
11
18
6
4
35.796.ac 02
73.230.aq 04
90.105.cl
55.408.cb 01
8
8
13
7
8
8
35.796.ac 01
10
22
55.408.cb 01
20
15
3
55.408.cb 01
35.300.aq
6
7
15
2
8
17
6
9
6
19
55.101.ac 03
1
8
90.105.cl
21
73.420.ac 01
16
5
8

Артикул

Название

Примечание

Количество

1

47586133

WIRE HARNESS

Strawhood, Rear

1шт.

2

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Incl 19

2шт.

2

47682620

WORK LAMP,Flood, LED, 12V

LIGHT, WORK, LED

2шт.

3

L112318

ALARM

Backup

1шт.

4

87603462

LIGHT SWITCH

Worklights

1шт.

5

82002966

POWER SOCKET,M18 x 1

Aux. Electric

1шт.

6

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

8шт.

7

445394

RIVET,Pop, 3/16" x 1/2" OAL

8шт.

8

86566989

CABLE TIE,208mm L

18шт.

9

47670938

BEACON

Rotating, Incl 20 - 21

1шт.

10

47684406

SENSOR

Ladder Position

3шт.

11

87001315

WORK LAMP,Halogen, 12V, 37.5W, Clear

Incl 22

1шт.

12

86566990

CABLE TIE,292mm OAL x 4.8mm W

3шт.

13

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

14

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

15

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

16

87021006

BOLT,M10 x 26.4mm, Cl 10.9

2шт.

17

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

18

87668737

CABLE TIE,203.2mm L, Nylon, Black

Cable Tie

2шт.

19

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, H3

2шт.

20

84344644

LENS

Amber

1шт.

21

47691331

BULB,H1, 12V, 55W

1шт.

22

87107077

BULB,Halogen, 12V, 37.5W

1шт.

Выбрано товаров: 23
