Запчасти Case IH 8240 (55.101.AC[03]) - WIRE HARNESS, FRAME, LH (55) - ELECTRICAL SYSTEMS

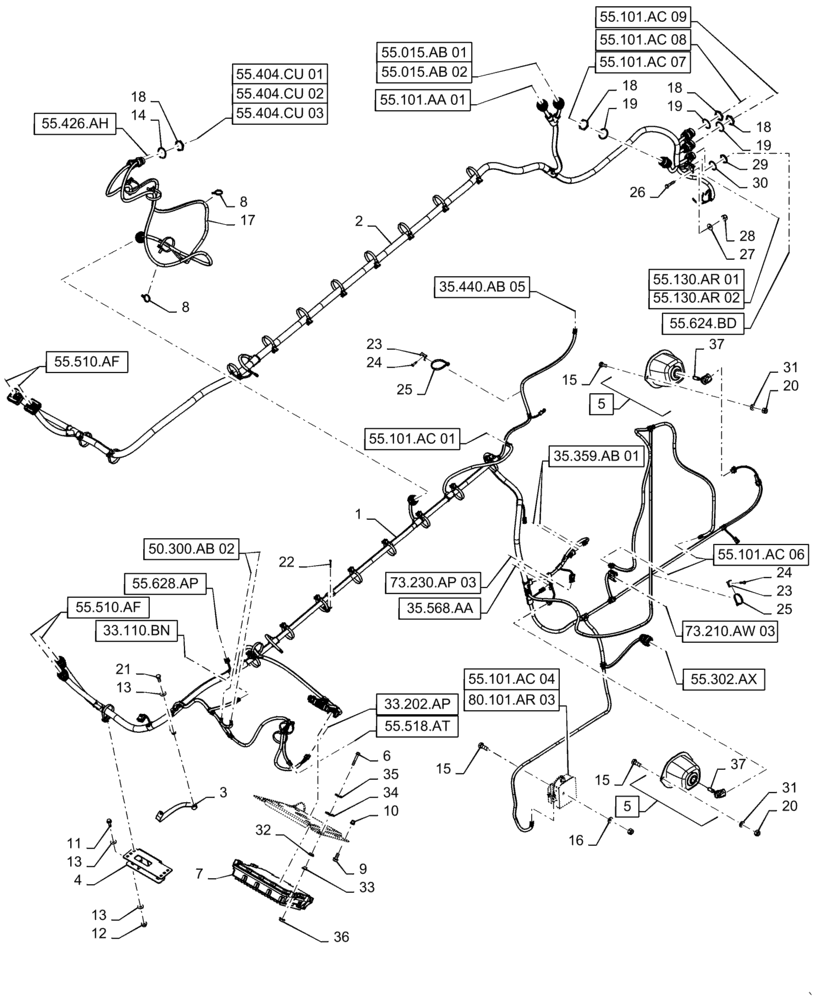

Схема запчастей Case IH 8240 - (55.101.AC[03]) - WIRE HARNESS, FRAME, LH (55) - ELECTRICAL SYSTEMS
55.404.cu 02
13
10
34
15
19
19
33.202.ap
36
6
5
14
50.300.ab 02
8
22
73.210.aw 03
24
55.518.at
35.440.ab 05
35.568.aa
55.101.ac 01
28
55.130.ar 02
13
55.510.af
55.015.ab 01
31
32
55.101.aa 01
35
55.624.bd
37
7
33.110.bn
23
18
20
20
24
55.101.ac 08
3
19
12
55.302.ax
1
55.404.cu 03
21
15
8
55.101.ac 04
55.101.ac 06
35.359.ab 01
18
26
17
9
16
23
55.015.ab 02
29
5
18
11
30
31
27
55.404.cu 01
55.130.ar 01
2
13
4
18
73.230.ap 03
25
55.628.ap
55.510.af
80.101.ar 03
55.101.ac 07
55.101.ac 09
33
15
37
55.426.ah
25

Артикул

Название

Примечание

Количество

1

47556610

WIRE HARNESS

Main Chassis, LH

1шт.

2

47427779

WIRE HARNESS

Expansion, LH

1шт.

3

86534915

GROUND CABLE

Chassis

1шт.

4

84476088

BRACKET

Support

1шт.

5

86590412

LAMP,Halogen, 12V, 37.5W, Clear

Light, Incl 37

2шт.

6

87670759

FLANGE BOLT,M6 x 1.0 x 46.6mm, Cl 10.9

4шт.

7

47398072

MODULE

H Bridge

1шт.

8

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree

8шт.

9

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

10

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

4шт.

11

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

14

84420455

LOCK WASHER,48mm ID x 45.8mm OD

Wavelock, 43.17mm ID x 52.83mm OD

1шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

17

47501325

WIRE HARNESS

Grain Tank to Unload Tube

1шт.

18

86619907

NUT,1.6875"-18

4шт.

19

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

3шт.

20

353308

NUT,M6 x 1.0, Cl 8

4шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

22

50773

SELF-TAP SCREW

Pan, #6-20 x 1/2"

2шт.

23

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

17шт.

24

445394

RIVET,Pop, 3/16" x 1/2" OAL

17шт.

25

86566989

CABLE TIE,208mm L

29шт.

26

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

6шт.

27

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

6шт.

28

385681

NUT,M4 x 0.7, Cl 8

6шт.

29

9861348

NUT,1-1/2"-18

1шт.

30

9861349

LOCK WASHER,38.4mm ID x 47.9mm OD x 1.6mm Thk

1шт.

31

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

32

47131603

PAD,14mm ID x 26mm OD x 8mm Thk

Elastic Plug

4шт.

33

47131590

SPACER,8.5mm ID x 26mm OD x 10mm Thk

4шт.

34

87672920

RUBBER SEAL,19mm ID x 30mm L x 3mm Thk

19mm ID x 30mm OAL x 25mm W

4шт.

35

87317427

WASHER,0.28" ID x 1" OD x 0.11" Thk

7.13mm ID x 25.4mm OD x 2.76mm Thk

4шт.

36

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

37

9847313

BULB,#894, 12V, 37.5W

2шт.

Выбрано товаров: 37
