Запчасти Case IH 8240 (35.500.AD) - MOTOR, DOOR, AIR INTAKE (35) - HYDRAULIC SYSTEMS

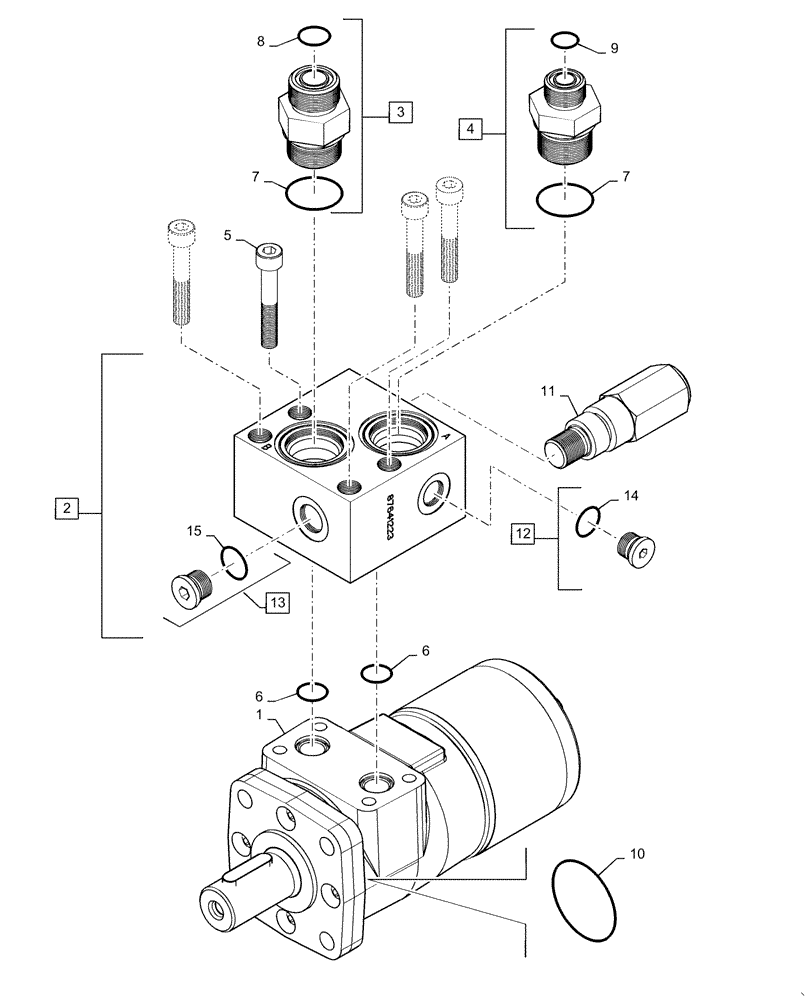

Схема запчастей Case IH 8240 - (35.500.AD) - MOTOR, DOOR, AIR INTAKE (35) - HYDRAULIC SYSTEMS
11
7
5
13
6
14
2
10
6
12
8
1
4
3
15
9
7

Артикул

Название

Примечание

Количество

1

47506199

HYDRAULIC MOTOR

370CC, SAS Wand Drive

1шт.

2

87641223

VALVE

Rotary Screen Bypass, Incl 11 - 15

1шт.

3

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 7 - 8

1шт.

4

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl 7, 9

1шт.

5

73170457

HEX SOC SCREW,M8 x 50mm, Cl 8.8

4шт.

6

272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

7

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

9807617

SEAL KIT

Services 1, Contains 24 Seals

1шт.

11

87645709

VALVE

Relief, Max Pressure 3000 P.S.I, Relief Pressure 280 P.S.I, Max Flow 20 GPM

1шт.

12

87035062

PLUG,Hex, 1/2"-20 ORB

Incl 14

1шт.

13

9625178

PLUG,9/16" - 18 ORB

Incl 15

1шт.

14

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 15
