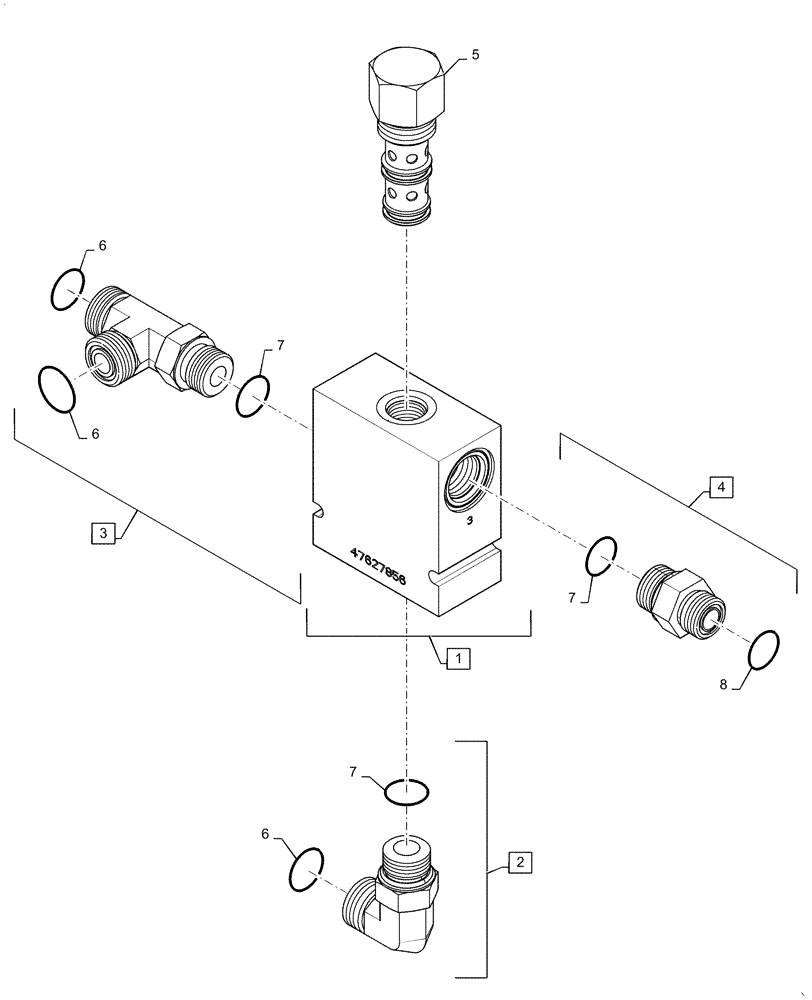

Запчасти Case IH 8240 (35.300.BL) - HYDRAULIC MANIFOLD, FLOW CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

47627856

MANIFOLD

Hydraulic Flow Control, 15 GPM, Incl 5

1шт.

2

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 6 - 7

1шт.

3

86579706

TEE,1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 6 - 7

1шт.

4

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 7 - 8

1шт.

5

47627855

VALVE SECTION

Flow Control

1шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

7

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
