Запчасти Case IH 8240 (35.300.BC[02]) - HYDRAULIC SYSTEM, TUBE, ENGINE (35) - HYDRAULIC SYSTEMS

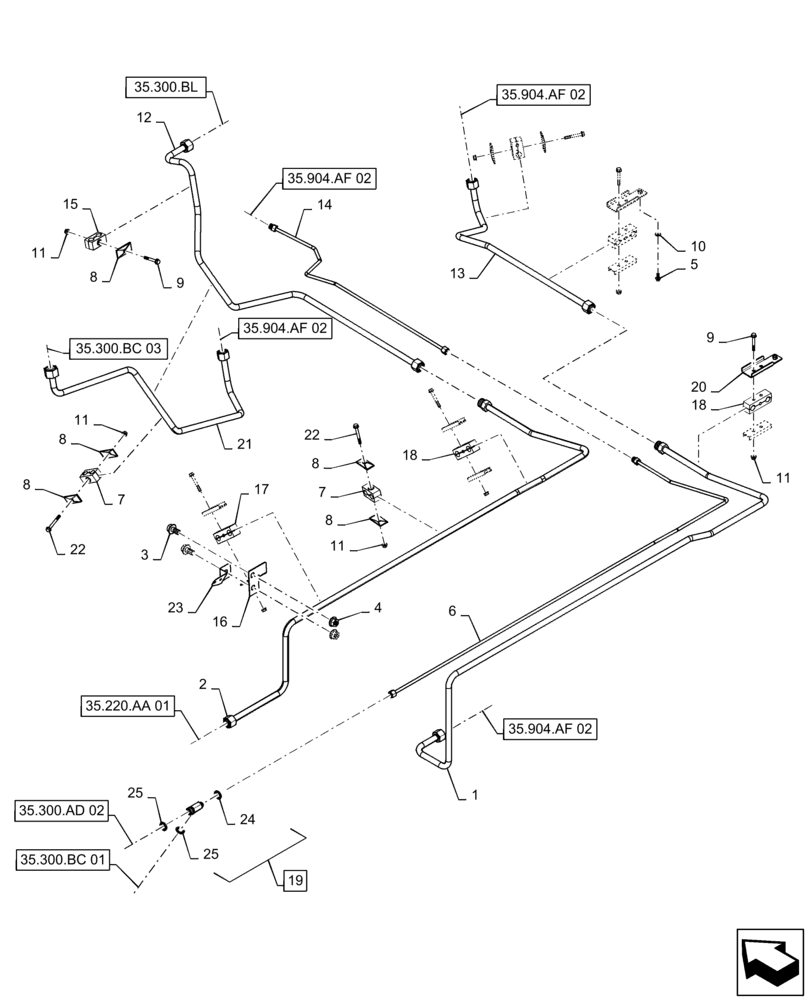

Схема запчастей Case IH 8240 - (35.300.BC[02]) - HYDRAULIC SYSTEM, TUBE, ENGINE (35) - HYDRAULIC SYSTEMS
22
25
1
35.904.af 02
4
35.904.af 02
5
8
6
16
35.300.bc 03
12
22
23
9
35.904.af 02
35.300.bc 01
19
9
7
35.300.ad 02
11
8
3
18
18
14
21
8
24
35.904.af 02
13
10
35.300.bl
8
11
7
35.220.aa 01
11
25
20
8
11
2
15
17

Артикул

Название

Примечание

Количество

1

47695523

TUBE

Hydraulic, Spreader Return

1шт.

2

47695684

TUBE

Hydraulic, Cleaning Fan Supply

1шт.

3

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

2шт.

4

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

5

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

2шт.

6

47695887

TUBE

Hydraulic, Cleaning Fan Drain

1шт.

7

87000140

CLAMP,Tube, 19.05mm

19.05mm ID x 67mm L x 30mm Thk

3шт.

8

87000230

PLATE

Hose Clamp

7шт.

9

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

10шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

12

47696809

TUBE

Hydraulic, SAS Flow Control Supply

1шт.

13

47517586

TUBE

Hydraulic, Cleaning Fan Valve Supply

1шт.

14

47693251

TUBE

Hydraulic, Cleaning Fan Drain

1шт.

15

87000154

CLAMP

Hydraulic Tube, 19.05mm ID x 9.52mm ID x 67mm L x 30mm Thk

1шт.

16

87000942

BRACKET

Clamp

1шт.

17

86998883

CLAMP

Hydraulic Tube, 3 Hole

4шт.

18

87000242

CHANNEL

Clamp Back Up

5шт.

19

87109744

FITTING

Reducer Tee, Incl 24 - 25

1шт.

20

47558088

BRACKET

Tube Clamp

2шт.

21

47696839

TUBE

Cleaning Fan Valve Return

1шт.

22

87656138

BOLT,M8 x 78.1mm, Cl 10.9

2шт.

23

47594463

BRACKET

3 Hole, S Style, Black

1шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

Выбрано товаров: 25
