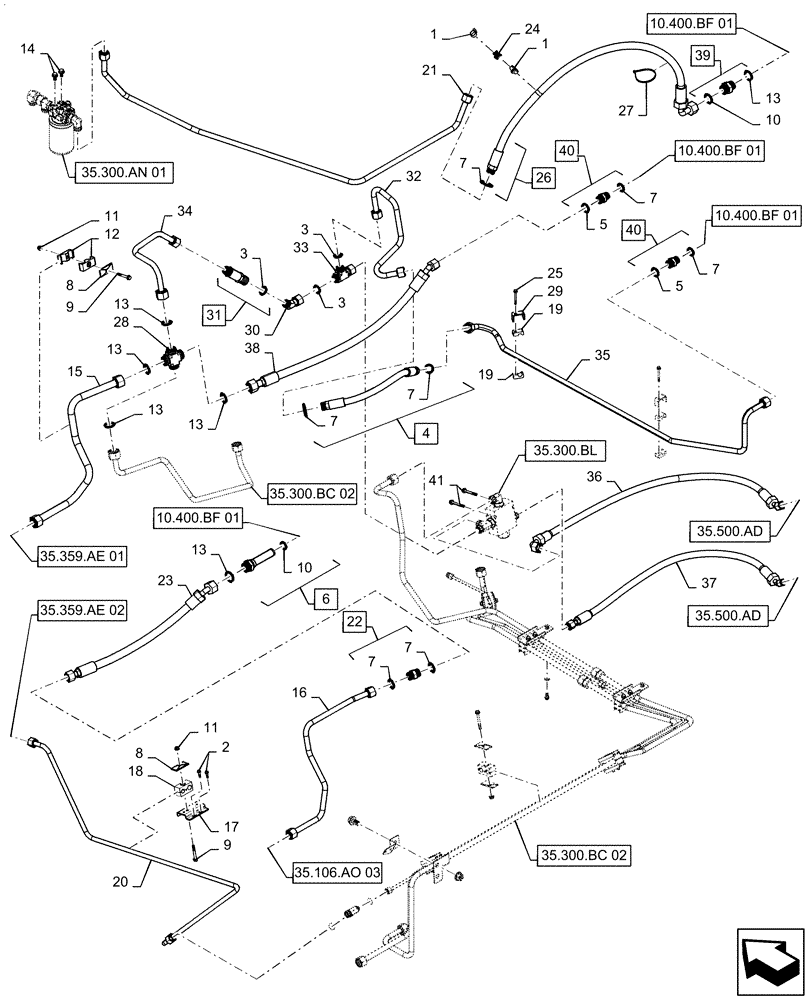

Запчасти Case IH 8240 (35.300.BC[01]) - HYDRAULIC SYSTEM, ENGINE 11L AND 13L (35) - HYDRAULIC SYSTEMS

1

84266050

CABLE TIE,384mm L, Polyamide

2шт.

2

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

4шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

4

47634759

HOSE

Hydraulic, Aux Cooler Supply, Incl 7

1шт.

5

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

6

87360480

OIL COOLER FILTER

Fitting, Incl 10, 13

1шт.

7

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

10шт.

8

87000230

PLATE

Hose Clamp, 65mm L x 30mm W

2шт.

9

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

4шт.

10

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

12

87000146

CLAMP

Hydraulic Tube, 25.4mm ID x 19.05mm ID x 67mm L x 30mm Thk

1шт.

13

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

14

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

15

47380555

TUBE

Aux Cooler Return

1шт.

16

47380557

TUBE

Main Cooler Return

1шт.

17

87109755

BRACKET

Hydraulic Tube Support

2шт.

18

87000144

CLAMP

Hydraulic Tube, 19.05mm ID x 15.87mm ID x 67mm L x 30mm Thk

2шт.

19

433007

CLAMP

Hydraulic Hose, Bracket, 39mm L x 20mm W

4шт.

20

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

1шт.

21

47633815

TUBE

Main Cooler Inlet

1шт.

22

84100407

UNION,1-3/16"-12 ORFS

Incl 7

1шт.

23

47380569

HYDRAULIC HOSE

Main Cooler Return

1шт.

24

84318895

SPACER,17.97mm H

Swivel Tie Base, 20.32mm Thk x 17.97mm H

1шт.

25

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

26

47633817

TUBE

Hydraulic, Main Cooler Supply, Incl 7

1шт.

27

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

28

47394380

UNION CROSS

ORFS

1шт.

29

433100

SUPPORT

Hydraulic Hose Clamp, Bracket, 46mm L x 20mm W

2шт.

30

84214051

45 ELBOW,1-3/16"-12 ORFS x 14mm

ORFS, 20mm or 3/4"

1шт.

31

87563490

CHECK VALVE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

110 PSI, Incl 3

1шт.

32

47634725

TUBE

Hydraulic, Aux Cooler Supply 1

1шт.

33

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

ORFS, 20mm or 3/4"

1шт.

34

47380564

TUBE

Hydraulic, Aux Cooler Bypass

1шт.

35

47690286

TUBE

Hydraulic, Aux Cooler Supply 2

1шт.

36

47688499

HYDRAULIC HOSE

SAS Motor Return

1шт.

37

47688500

HYDRAULIC HOSE

SAS Motor Supply

1шт.

38

47380572

HYDRAULIC HOSE

Aux Cooler Return

1шт.

39

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 10, 13

1шт.

40

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 5, 7

2шт.

41

87656138

BOLT,M8 x 78.1mm, Cl 10.9

2шт.
