Запчасти Case IH 8240 (35.300.AD[02]) - HYDRAULIC SYSTEM, HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

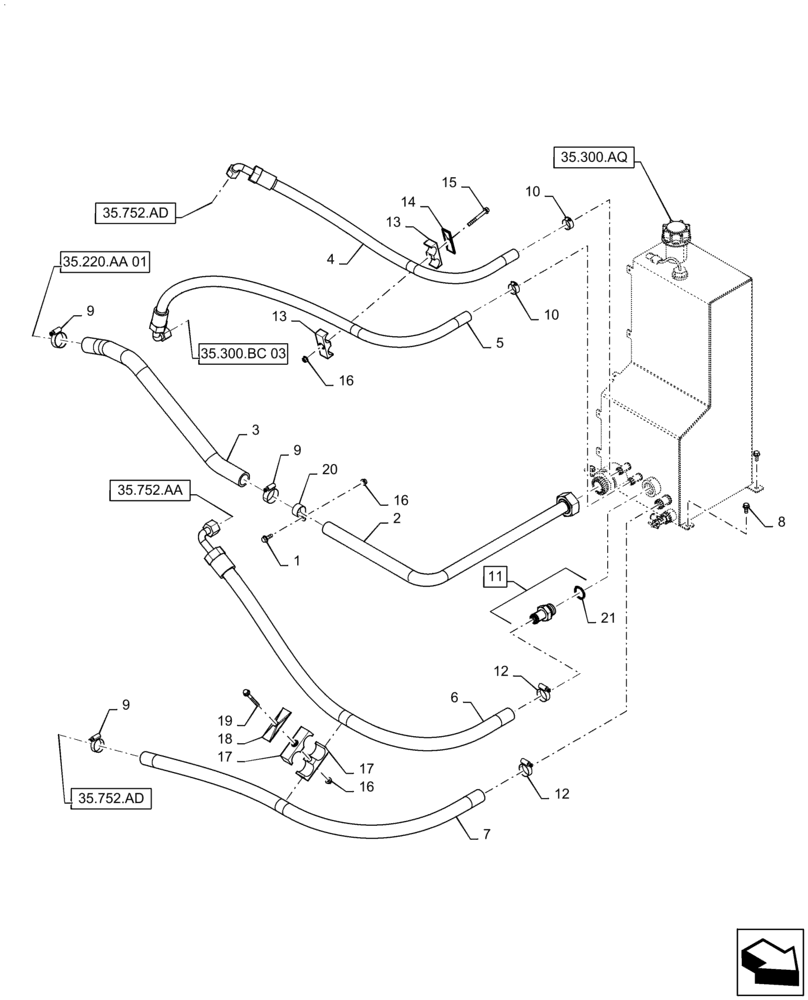

Схема запчастей Case IH 8240 - (35.300.AD[02]) - HYDRAULIC SYSTEM, HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS
35.220.aa 01
5
20
2
14
10
9
35.300.bc 03
8
35.752.ad
7
9
12
16
19
13
17
18
11
10
1
4
16
35.300.aq
35.752.ad
16
17
6
12
9
3
21
15
35.752.aa
13

Артикул

Название

Примечание

Количество

1

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

2

47508965

TUBE

Hydraulic, Triple Gear Pump Suction, 29mm ID x 32mm OD x 962mm L

1шт.

3

47497077

HYDRAULIC HOSE

Triple Gear Pump Suction, 31.8mm ID x 691mm L

1шт.

4

47497057

HYDRAULIC HOSE

Low Pressure Drain, 19mm ID x 1050mm L

1шт.

5

47497084

HYDRAULIC HOSE

Cleaning Fan Case Drain, 19mm ID x 1250mm L

1шт.

6

47596215

HYDRAULIC HOSE

Engine Fan Drive Return 1, 25.4mm ID x 1250mm L

1шт.

7

47497078

HYDRAULIC HOSE

PFC Inlet, 25mm ID x 1190mm L

1шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

9

86634186

HOSE CLAMP,32mm - 54mm

2шт.

10

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

2шт.

11

84161356

ADAPTER

M33 x 2.0, Incl 21

1шт.

12

86536660

HOSE CLAMP,25mm - 44mm

3шт.

13

4148516

CLIP

Hydraulic Hose, 30mm ID x 30mm ID x 30mm Thk

1шт.

14

1186005

PLATE

Cover

1шт.

15

87656138

BOLT,M8 x 78.1mm, Cl 10.9

1шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

17

87000923

HOSE CLAMP

Hydraulic, 38.1mm ID x 30mm Thk

1шт.

18

87000231

PLATE

Hose Clamp, 9mm ID x 102mm OD x 30mm Thk

1шт.

19

87695420

BOLT,Hex, M8 x 80mm, Cl 10.9

1шт.

20

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

21

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
