Запчасти Case IH 8240 (35.106.AO[02]) - HYDRAULIC SYSTEM, PTO, 2 (35) - HYDRAULIC SYSTEMS

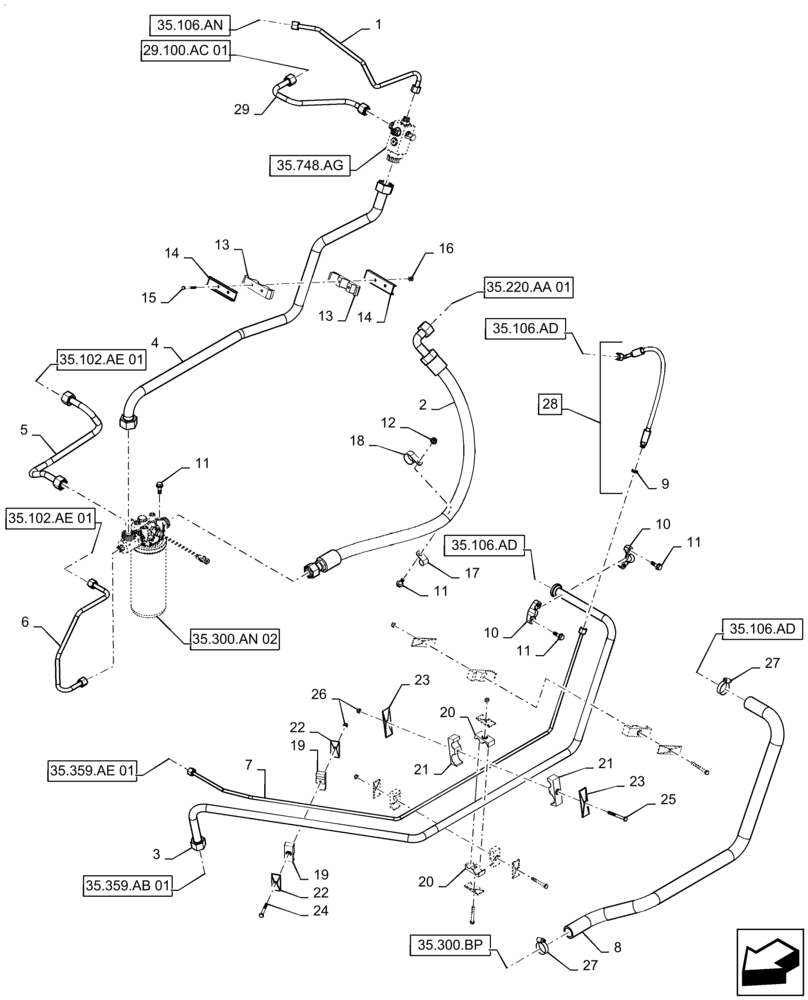

Схема запчастей Case IH 8240 - (35.106.AO[02]) - HYDRAULIC SYSTEM, PTO, 2 (35) - HYDRAULIC SYSTEMS
8
16
14
17
4
21
13
23
18
22
1
35.106.ad
29
27
3
23
35.220.aa 01
21
35.102.ae 01
35.359.ae 01
35.106.ad
11
35.106.ad
5
2
35.300.bp
35.106.an
15
22
29.100.ac 01
19
13
26
11
10
14
9
20
25
28
11
27
6
12
35.102.ae 01
7
19
35.748.ag
24
35.359.ab 01
11
10
35.300.an 02
20

Артикул

Название

Примечание

Количество

1

87709559

HYD TUBE,0.5" OD

Charge to Rotor Pump

1шт.

2

87283082

FLEXIBLE HOSE

Pump to Filter, 25mm ID x 1225mm L

1шт.

3

87721406

TUBE,1" OD

PFC to Main Valve

1шт.

4

87670280

HYD TUBE,32 mm OD x 538.5 mm L

Charge Filter to Manifold

1шт.

5

87657698

HYD TUBE,0.75" OD

Charge Filter Bypass

1шт.

6

87657697

HYD TUBE,0.5" OD

Charge Filter to Valve

1шт.

7

84222269

TUBE

Hydraulic, Load Sense to PFC Pump, 7mm ID x 10mm OD x 1128.5mm L

1шт.

8

84159425

HYDRAULIC HOSE

Filter to PFC Inlet, 31.8mm ID x 870.8mm L

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

86980728

COLLAR CLAMP

Split Flange

2шт.

11

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

9шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

13

455533

CLAMP

Hydraulic Hose, 126.1mm L x 30mm Thk

2шт.

14

87283294

CHANNEL

Clamp Back - Up, 126mm L x 12.7mm Thk

2шт.

15

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

16

353308

NUT,M6 x 1.0, Cl 8

2шт.

17

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

18

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

87000142

CLAMP,2 Hoses

Hydraulic Tube, 25.4mm ID x 9.52mm ID x 67mm L x 30mm Thk

4шт.

20

87000146

CLAMP

Hydraulic Tube, 25.4mm ID x 19.05mm ID x 67mm L x 30mm Thk

2шт.

21

84214028

HOSE CLAMP

Hydraulic, 25.4mm ID x 42mm ID x 30mm Thk

2шт.

22

87000230

PLATE

Hose Clamp, 9mm ID x 65mm L x 30mm Thk

12шт.

23

87000231

PLATE

Hose Clamp, 9mm ID x 102mm L x 30mm Thk

4шт.

24

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

6шт.

25

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

26

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

27

86634187

HOSE CLAMP,50.8mm ID - 26.9mm ID, Lined

2шт.

28

47555718

HYDRAULIC HOSE

PFC Pump to Load Sense Tube, 6.3mm ID x 600mm L, Incl 9

1шт.

29

84131660

TUBE ASSY.

Charge to Propulsion Pump, 12mm ID x 16mm OD x 260mm L

1шт.

Выбрано товаров: 29
