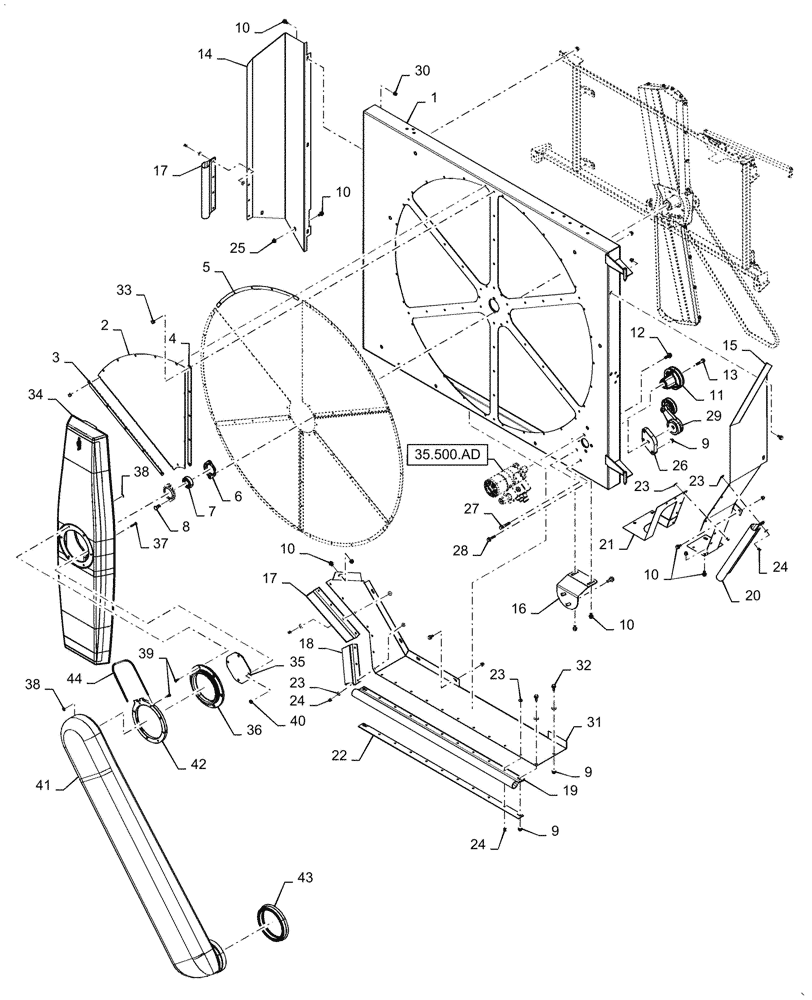

Запчасти Case IH 8240 (10.419.AA[06]) - SCREEN, AIR INTAKE (10) - ENGINE

1

47750526

DOOR

Air Screen

1шт.

2

87644459

SCREEN

Wedge, Perforated

6шт.

3

87646364

KNIFE

SAS Door

3шт.

4

87644454

ANGLE

Strap, SAS Door

3шт.

5

87693137

SUPPORT ASSY.

Ring, Outer Retaining

6шт.

6

47700272

FLANGE

Bearing Housing, 52mm

2шт.

7

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

8

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

10

87681207

BOLT,M8 x 24.1mm, Cl 10.9

17шт.

11

87682772

PULLEY,25.05mm ID x 100mm OD x 79mm W

Hub

1шт.

12

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

13

87698834

BOLT,M8 x 48.1mm, Cl 10.9

1шт.

14

47859959

BAFFLE

Door

1шт.

15

47591076

PANEL

Baffle

1шт.

16

47859944

SHEET

Suction Duct Strap

1шт.

17

47602500

SEAL

Door Screen

2шт.

18

47706774

SEAL,180mm W x 186.34mm OAL

1шт.

19

47706772

SEAL,180mm W x 1000.9mm OAL x 1.6mm Thk

1шт.

20

47607031

SEAL

Door Screen

1шт.

21

47706763

SEAL

Rubber

1шт.

22

47706768

ANGLE,59.6mm W x 999.99mm OAL x 1.5mm Thk

1шт.

23

12642801

WASHER,4.15mm ID x 12mm OD x 1mm Thk

51шт.

24

14642191

RIVET,Pop, 3.9mm OD x 14mm OAL

34шт.

25

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

26

87663397

SPACER,19mm W, 100mm Centerline Length

Tensioner

1шт.

27

86562215

FLANGE BOLT,3/8"-16 x 1.75", Cl 5

1шт.

28

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

29

87607602

PULLEY ASSY.

Belt Idler Tensioner

1шт.

30

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

12шт.

31

47862554

BAFFLE

Panel

1шт.

32

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

33

47804165

RIVET

Multi Grip Pop

66шт.

34

47857141

NOZZLE

Vacuum

1шт.

35

47361833

PLATE

Nozzle Brace

1шт.

36

87472745

RING,140mm ID x 205mm OD x 24mm Thk

Inside

1шт.

37

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

38

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

14шт.

39

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

14шт.

40

412152

NUT,M6 x 1, Cl 8.8

4шт.

41

47866267

DUCT

Fixed Screen Outer

1шт.

42

47514305

RING,165mm ID x 205mm OD x 12mm Thk

Outside

1шт.

43

47808662

SEALING STRIP

Vacuum Duct

1шт.

44

47662307

CLIP

Retaining

1шт.
