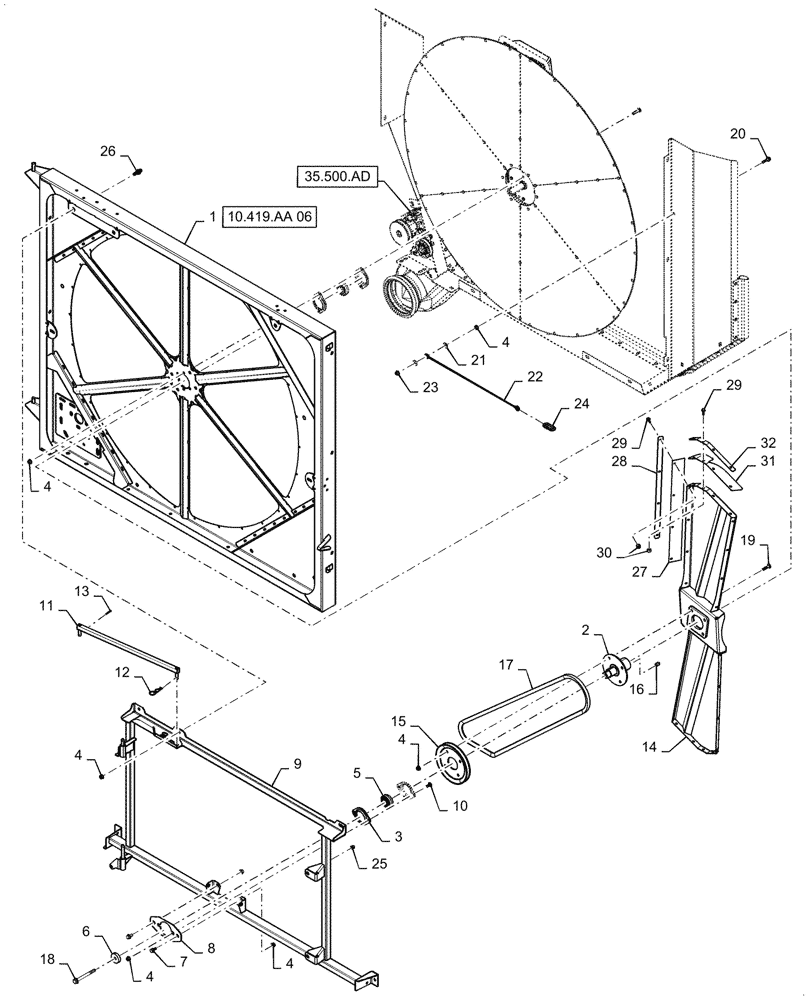

Запчасти Case IH 8240 (10.419.AA[05]) - SCREEN, AIR INTAKE (10) - ENGINE

1

47750526

DOOR

Air Screen, Stationary

1шт.

2

47829563

HUB

Air Screen Wand

1шт.

3

47700272

FLANGE

52mm ID Bearing Housing

2шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

16шт.

5

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

6

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

1шт.

7

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

8

47704264

BRACKET

Air Screen Bearing Mount

1шт.

9

47757126

FRAME

Air Screen Bearing Support

1шт.

10

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

4шт.

11

47359080

LINK CONROD

Air Screen Door Stop

1шт.

12

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

1шт.

13

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

14

47860864

ARM

Air Screen Blockoff

1шт.

15

47631682

PULLEY,52mm ID x 167.1mm OD x 12.7mm W

Air Screen Wand Drive

1шт.

16

10619520

KEY,8mm W x 20mm L x 7mm H

1шт.

17

47635775

BELT,1905mm Nominal Length

Air Screen Wand Drive

1шт.

18

87695415

BOLT,Hex, M10 x 100mm, Cl 10.9

1шт.

19

87682386

CARRIAGE BOLT,M8 x 1.25 x 35mm, Cl 10.9

4шт.

20

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

21

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

22

86623991

CABLE,2 Eyelet, 490mm Centerline Length

1шт.

23

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

24

87107072

CHAIN LINK,44.299mm Pitch

1шт.

25

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

2шт.

26

84572087

RIVET,17.28mm OD x 48.8mm L

3шт.

27

47710973

SEAL,49.5mm W x 486mm OAL x 2.15mm Thk

Rubber

4шт.

28

47635940

RETAINER,20mm W x 486mm OAL x 1.7mm Thk

4шт.

29

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

24шт.

30

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

22шт.

31

47934886

SEAL

Rubber Blockoff

2шт.

32

47860940

BRACKET

Air Screen Wand Seal Retainer

2шт.
