Запчасти Case IH 8240 (10.400.BE[01]) - RADIATOR & COOLER (10) - ENGINE

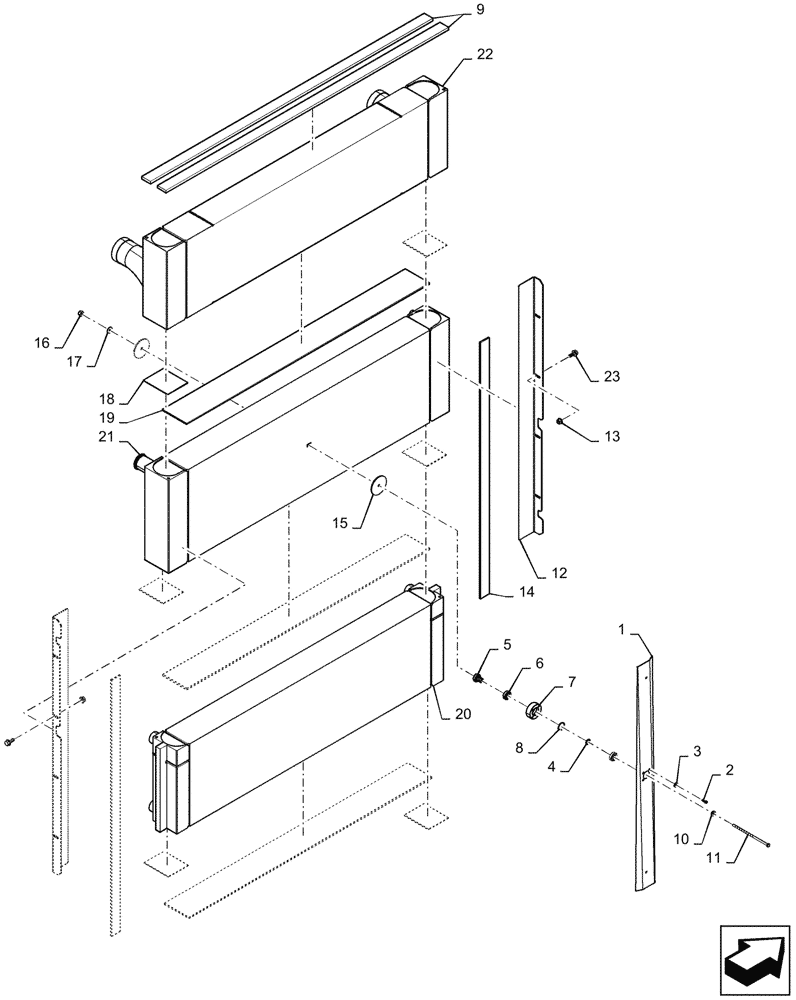

Схема запчастей Case IH 8240 - (10.400.BE[01]) - RADIATOR & COOLER (10) - ENGINE
23
11
5
15
3
4
17
7
14
22
1
16
18
6
19
12
20
9
21
2
10
13
8

Артикул

Название

Примечание

Количество

1

47452330

FAN BLADE

1125mm L

1шт.

2

84058583

HEX SOC SCREW,BTN HD, M6 x 16mm, Cl 8.8

4шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

4

84334251

WASHER,17.5mm ID x 24mm OD x 2mm Thk

1шт.

5

84460219

SHAFT,9mm ID x 17mm OD, 24.5mm OD Shoulder, 32mm Head

1шт.

6

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

2шт.

7

84437613

BUSHING,35mm ID x 65mm OD x 23mm Thk

1шт.

8

300642

CIRCLIP,M35 x 1.5mm W, Internal

1шт.

9

47452288

SEAL

1628.6mm L

2шт.

10

86592711

WASHER,8.4mm ID x 21mm OD x 4mm Thk

1шт.

11

87571260

BOLT,Hex, M8 x 200mm, Cl 8.8

1шт.

12

47706856

PLATE

1270mm L

2шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

14

401278

SEALING STRIP

2.55M L, Cut from Bulk

1шт.

15

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

2шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

18

47365528

SEAL

140mm H x 114mm W, Rubber

6шт.

19

47704913

SEAL

1400mm L, Foam

3шт.

20

47736770

OIL COOLER

W/ Seals, Serial Range: -YGG230927

1шт.

20

47909836

OIL COOLER

, Start Serial: YGG230927

1шт.

If Upgrading To Improved Cooling For BSN Machines, Also Replace Radiator 47909835 and Intercooler 47909834

1шт.

21

47736771

COOLER

Radiator, W/ Seals, Serial Range: -YGG230927

1шт.

21

47909835

RADIATOR

, Start Serial: YGG230927

1шт.

If Upgrading To Improved Cooling For BSN Machines, Also Replace Oil Cooler 47909836 and Intercooler 47909834

1шт.

22

47736769

INTERCOOLER

W/ Seals, Start Serial: YGG230927

1шт.

22

47909834

INTERCOOLER

, Serial Range: -YGG230927

1шт.

If Upgrading To Improved Cooling For BSN Machines, Also Replace Oil Cooler 47909836 and Radiator 47909835

1шт.

23

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

Выбрано товаров: 29
