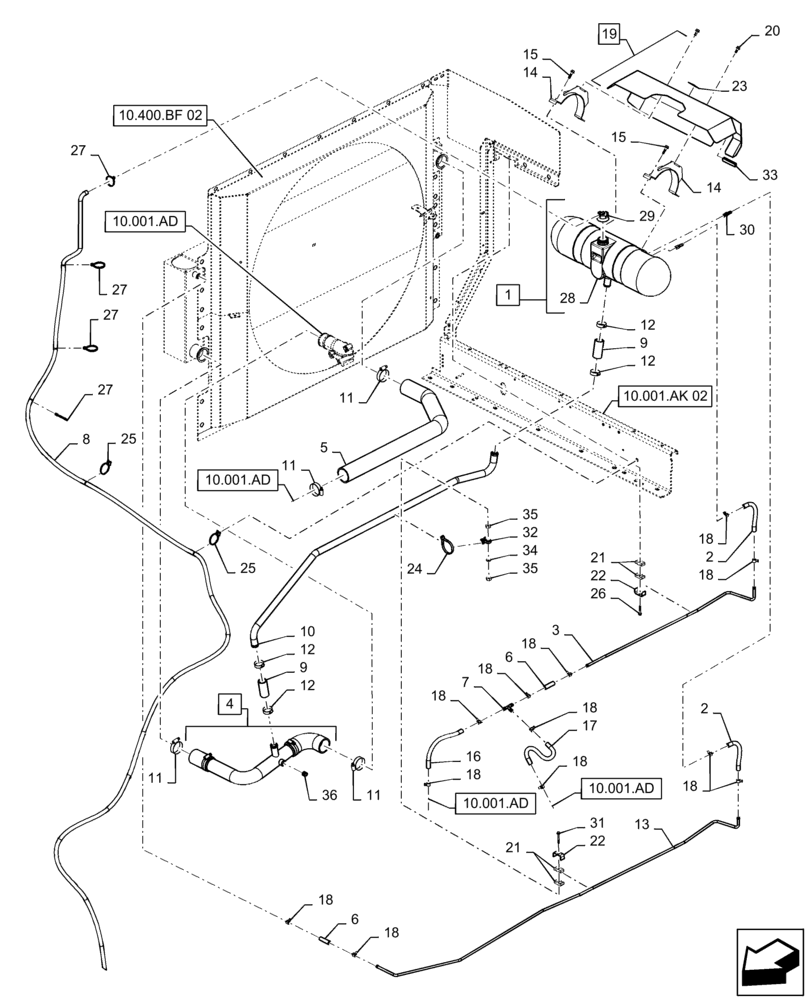

Запчасти Case IH 8240 (10.400.AK[02]) - COOLING SYSTEM LINE, COOLANT EXPANSION RESERVOIR (10) - ENGINE

1

87670349

RESERVOIR, COOLANT E

Deaeration Bottle, Incl 28 - 30

1шт.

2

47548015

HOSE

Deaeration Connection, 9.5mm ID x 16.5mm OD x 108mm L

2шт.

3

47705160

TUBE

Deaeration, Engine, 8.63mm ID x 9.52mm OD x 809.2mm L

1шт.

4

47595981

TUBE

Radiator to Engine Inlet, Incl 36, 437.8mm L

1шт.

5

47362826

RADIATOR HOSE

60mm ID

1шт.

6

47548019

HOSE

Deaeration Connection, 9.5mm ID x 16.5mm OD x 55mm L

2шт.

7

248632A1

TEE,3/8" Hose Barb x 3/8" Hose Barb x 3/8" Hose Barb

1шт.

8

47599370

HOSE

Overflow Drain, 8mm ID x 12mm OD x 5600mm L

1шт.

9

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

2шт.

10

47760977

TUBE

Engine Coolant Bottle Drain, 16.85mm ID x 28.5mm OD x 1369.1mm L

1шт.

11

87778863

CLAMP,57mm ID - 79mm ID x 16mm W, Lined

4шт.

12

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

4шт.

13

47589795

TUBE

1691.3mm L, Deaeration

1шт.

14

47590698

CLAMP

Water Reservoir

2шт.

15

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

16

47705921

HOSE

Deaeration Vent, 10mm ID x 310mm L

1шт.

17

47548017

HOSE

Deaeration Vent, 9.5mm ID x 16.5mm OD x 250mm L

1шт.

18

47768584

CLAMP

CTB, 14.4mm - 17.2mm

13шт.

19

47590678

SHIELD

Water Resevoir, Incl 23

1шт.

20

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

21

430357

CLAMP

Dual Tube, Rubber

4шт.

22

431941

SUPPORT

Bracket, Clamp

2шт.

23

47757332

DECAL

Coolant - Actifull OT

1шт.

24

84266050

CABLE TIE,384mm L, Polyamide

Strap

1шт.

25

82033028

CABLE TIE,170mm L

2шт.

26

87670759

FLANGE BOLT,M6 x 1.0 x 46.6mm, Cl 10.9

2шт.

27

86566989

CABLE TIE,208mm L

3шт.

28

87670348

BOTTLE

Deaeration

1шт.

29

82022744

CAP,Female, Vented, Non-Locking

Water Reservoir

1шт.

30

87742820

FITTING,1/4" Barb x 3/8" Pipe

Barb, to Male Pipe

2шт.

31

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

1шт.

32

84485207

BASE

M12, Plastic

1шт.

33

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

Trim Edge

1шт.

34

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

35

9706755

NUT,M6, Cl 8

2шт.

36

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.
