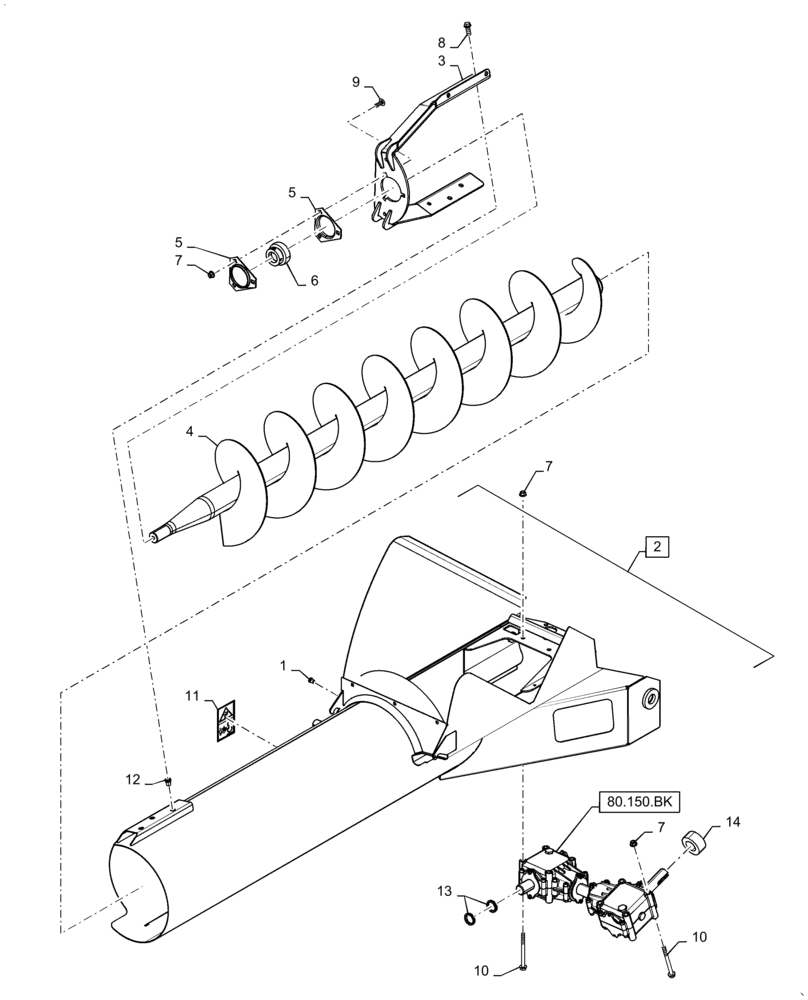

Запчасти Case IH 8240 (80.101.BK) - VAR - 722481, 425241, 425363 - BUBBLE-UP TUBE (80) - CROP STORAGE/UNLOADING

1

86610200

THREADED INSERT,M8 x 1.25

3шт.

2

47696909

BUBBLE-UP

Housing, Incl 1, 11 - 12, - VAR 722481, 425241

1шт.

2

47696923

BUBBLE-UP

Housing, Incl 1, 11 - 12, - VAR - 425363

1шт.

3

47602839

SUPPORT

Bubble Up Auger

1шт.

4

87106615

AUGER

Standard, - VAR - 722481, 425241

1шт.

4

87733275

AUGER

Abrasive, - VAR - 425363

1шт.

5

84414985

FLANGED BEARING

72mm ID x 122mm OD x 9.8mm Thk

2шт.

6

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

7

86050279

FLANGE NUT,M10 x 1.5, Cl 10

11шт.

8

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

6шт.

9

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

3шт.

10

87698843

FLANGE BOLT,M10 x 120mm, Cl 10.9

8шт.

11

84004736

DANGER DECAL

Auger Entanglement

1шт.

12

86976968

INSERT,Rivnut, M10 x 1.5 x 19mm OD

6шт.

13

87280933

SEAL,28.96mm ID x 37.08mm OD x 7.62mm Thk

2шт.

14

87282653

SEAL,38mm ID x 68mm OD x 32mm Thk

Gearbox to Grain Tank

1шт.
