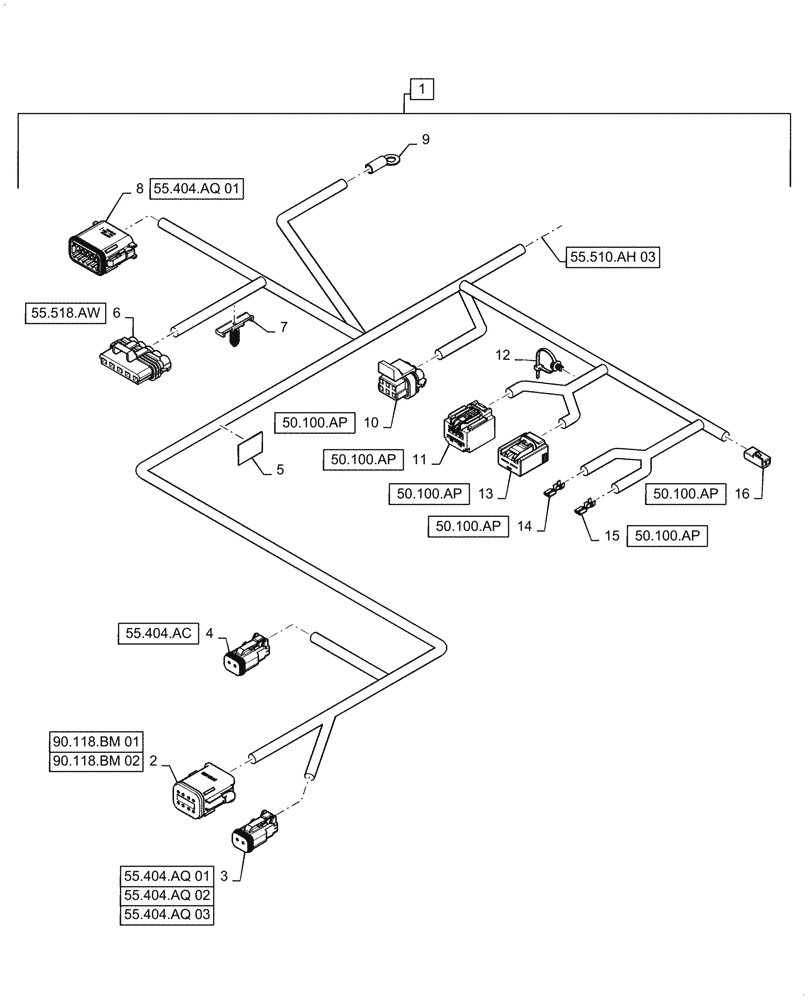

Запчасти Case IH 8240 (55.510.AH[02]) - WIRE HARNESS, UPPER ROOF (55) - ELECTRICAL SYSTEMS

1

47670009

WIRE HARNESS

Upper Roof, Incl 2 - 16

1шт.

2

87708152

ELEC CONNECTOR

LH Side Mirror/Worklight, X-1125

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

LH Side Mirror/Worklight, X-1125

2шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Side Mirror/Worklight, X-1125

5шт.

2

84068583

PLUG,12 - 16 Ga, White

LH Side Mirror/Worklight, X-1125

1шт.

2

84806312

LOCKING TAB,Wedge Lock

Lock, LH Side Mirror/Worklight, X-1125

1шт.

3

87695909

ELEC CONNECTOR,Female, 2 Pole

LH Distance Lights, X-349

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

LH Distance Lights, X-349

2шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

LH Distance Lights, X-349

1шт.

4

87695909

ELEC CONNECTOR,Female, 2 Pole

LH Beacon Light, X-302

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Beacon Light, X-302

2шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

LH Beacon Light, X-302

1шт.

5

84123434

TAPE

Reflector, White

1шт.

6

87693690

ELEC CONNECTOR

Wiper Motor, X-601

1шт.

6

87680656

CONTACT

Wiper Motor, X-601

4шт.

6

87686742

PLUG

Wiper Motor, X-601

1шт.

6

87680701

SEAL

Wiper Motor, X-601

4шт.

6

84199352

ELEC CONNECTOR

Lock, Wiper Motor, X-601

1шт.

7

87705056

CLIP

Wire

1шт.

8

87708149

ELEC CONNECTOR

Cab Roof Lights Harness, X-1005

1шт.

8

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cab Roof Lights Harness, X-1005

8шт.

8

84068583

PLUG,12 - 16 Ga, White

Cab Roof Lights Harness, X-1005

4шт.

8

87695651

LOCKING TAB,Wedge Lock

Cab Roof Lights Harness, X-1005

1шт.

9

84399575

TERMINAL,5/16" Ring, SAE 8

Chassis Ground, X-572

1шт.

10

87694714

ELEC CONNECTOR,Female, 6 Cavities

Water Valve, X-603

1шт.

10

87688852

ELEC. TERMINAL PIN

Water Valve, X-603

3шт.

10

87690548

PLUG,White, 2.15mm - 1.60mm

Water Valve, X-603

3шт.

10

87689636

PLUG,Red, Taxi Seal Connector Cavity

Water Valve, X-603

3шт.

10

87694719

LOCKING TAB,Wedge Lock

Water Valve, X-603

1шт.

11

84392737

ELEC CONNECTOR

Motor Drive 1, X-013A

1шт.

11

84393188

ELEC. TERMINAL PIN

Motor Drive 1, X-013A

2шт.

11

84289211

ELEC. TERMINAL PIN

Motor Drive 1, X-013A

1шт.

12

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

1шт.

13

84392738

ELEC CONNECTOR

Motor Drive 2, X-013B

1шт.

13

84393188

ELEC. TERMINAL PIN

Motor Drive 2, X-013B

2шт.

14

87697617

TERMINAL

Blower Motor (-), X-602N

1шт.

15

87697617

TERMINAL

Blower Motor (+), X-602P

1шт.

16

87697541

ELEC CONNECTOR

Air Outlet Temp, X-103

1шт.

16

84199545

TERMINAL

Air Outlet Temp, X-103

2шт.

16

87705061

RETAINER

Air Outlet Temp, X-103

1шт.
