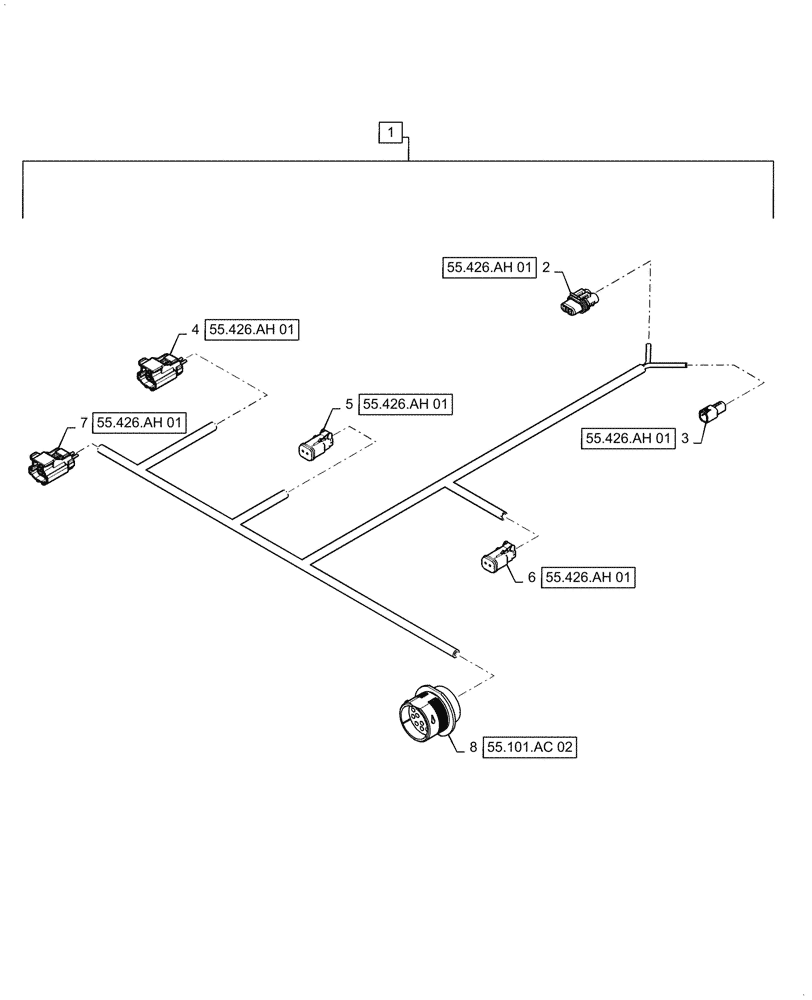

Запчасти Case IH 8240 (55.426.AH[02]) - GRAIN TANK WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

47583734

WIRE HARNESS

Grain Tank, Incl 2 - 8

1шт.

2

87693711

CONNECTOR, ELEC

Grain Tank Light, X-108

1шт.

2

87704960

ELEC CONNECTOR

Lock, Grain Tank Light, X-108

1шт.

2

87680656

CONTACT

Grain Tank Light, X-108

2шт.

2

87680701

SEAL

Grain Tank Light, X-108

2шт.

3

87357892

ELEC CONNECTOR

Grain Tank Camera, X-591

1шт.

3

87357895

PLUG

Grain Tank Camera, X-591

1шт.

3

87357889

WIRE CONNECTOR

Grain Tank Camera, X-591

1шт.

3

87357894

WIRE CONNECTOR

Grain Tank Camera, X-591

4шт.

4

87382906

WIRE CONNECTOR,Female, 2 Cavities

Cover Open Sensor, X-110

1шт.

4

84395356

TERMINAL,Female, 2.8mm, 18-20

Cover Open Sensor, X-110

2шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

3/4 Full Sensor, X-013

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

3/4 Full Sensor, X-013

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

3/4 Full Sensor, X-013

2шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Full Sensor, X-012

1шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

Full Sensor, X-012

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Full Sensor, X-012

2шт.

7

87382906

WIRE CONNECTOR,Female, 2 Cavities

Covers Closed Sensor, X-288

1шт.

7

84395356

TERMINAL,Female, 2.8mm, 18-20

Covers Closed Sensor, X-288

2шт.

8

87703902

ELEC CONNECTOR

RH Main Frame, X-020

1шт.

8

87695623

ELEC. TERMINAL PIN

RH Main Frame, X-020

13шт.
