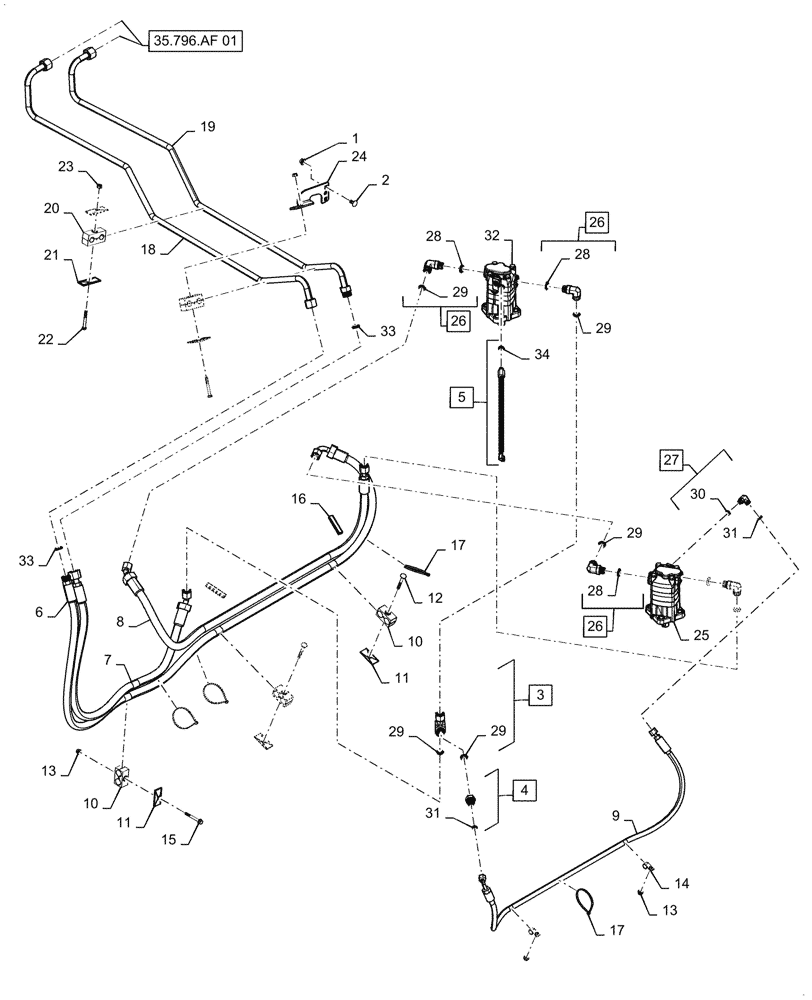

Запчасти Case IH 8240 (35.796.AC[01]) - VAR - 425597, 425602 - HYDRAULIC SYSTEM, CHAFF SPREADER, HORIZONTAL (35) - HYDRAULIC SYSTEMS

1

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

2

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

3

84989850

3 WAY CONNECTION

Tee, ORFS Swivel, Incl 29

1шт.

4

47629113

REDUCER

ORFS, Incl 31

1шт.

5

47421734

SENSOR

Spreader Speed, Incl 34

1шт.

6

47673910

HYDRAULIC HOSE

Disc Spreader Supply

1шт.

7

47673911

HYDRAULIC HOSE

Disc Spreader Return

1шт.

8

84592107

HYDRAULIC HOSE

Disc Spreader Intermediate

1шт.

9

84592110

HYDRAULIC HOSE

Disc Spreader Case Drain

1шт.

10

87000924

CLAMP

Hydraulic Hose

3шт.

11

87000230

PLATE

Clamp Cover

3шт.

12

300660

CARRIAGE BOLT,M8 x 1.25 x 70mm, Cl 8.8

2шт.

13

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

14

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

15

87656138

BOLT,M8 x 78.1mm, Cl 10.9

1шт.

16

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

Edge Trim

2шт.

17

86566990

CABLE TIE,292mm OAL x 4.8mm W

4шт.

18

47711121

HYD TUBE

Spreader Supply

1шт.

19

47711123

HYD TUBE

Spreader Return

1шт.

20

87000151

CLAMP

Hydraulic Tube

2шт.

21

1186005

PLATE

Clamp Cover

3шт.

22

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

23

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

24

47712875

BRACKET

Spreader Support

1шт.

25

84255961

HYDRAULIC MOTOR,90CC

W/ Case Drain

1шт.

26

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 28, 27

4шт.

27

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

Incl 30, 31

1шт.

28

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

29

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

30

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

31

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

32

84590746

HYDRAULIC MOTOR

90CC, Sensor Ready

1шт.

33

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

34

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
