Запчасти Case IH 8240 (35.359.AB[02]) - HYDRAULIC MANIFOLD (35) - HYDRAULIC SYSTEMS

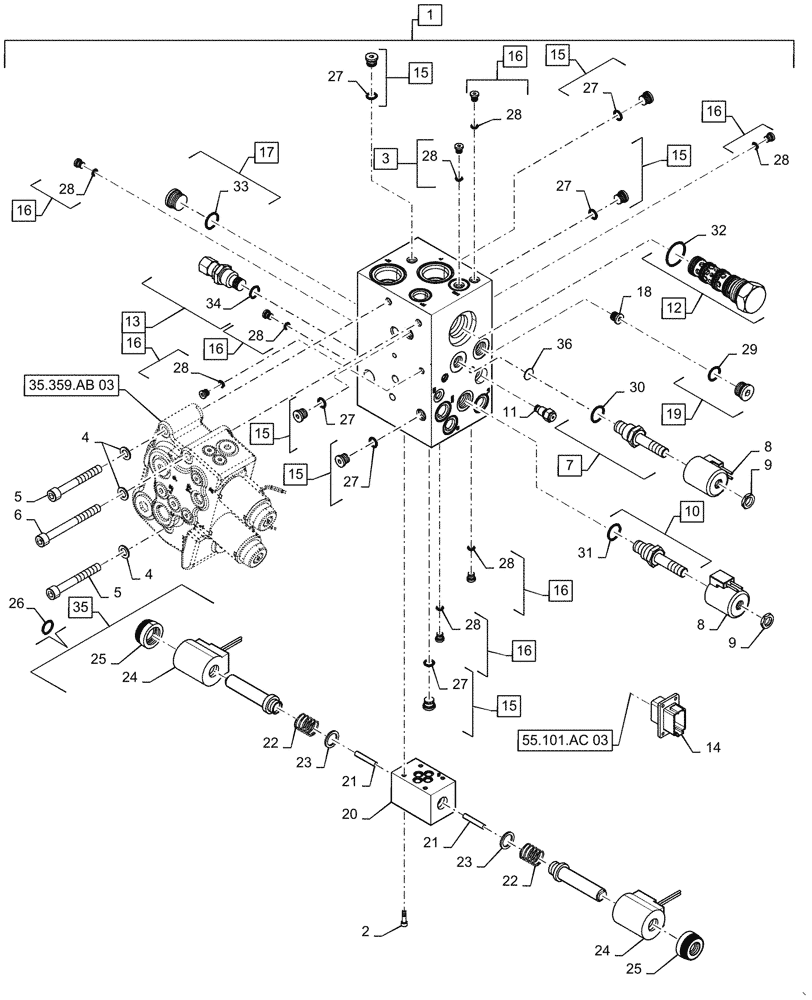

Схема запчастей Case IH 8240 - (35.359.AB[02]) - HYDRAULIC MANIFOLD (35) - HYDRAULIC SYSTEMS
55.101.ac 03
16
7
35
28
36
2
28
10
29
21
20
16
28
18
9
28
15
8
14
32
24
17
31
23
27
25
3
15
28
16
5
26
19
13
6
25
11
22
28
1
16
27
16
30
28
16
9
24
8
15
21
33
27
28
34
12
16
15
22
4
27
27
15
4
23
5
27
15
35.359.ab 03

Артикул

Название

Примечание

Количество

1

47533456

HYDRAULIC MANIFOLD

Main, Incl 2 - 36

1шт.

1

47533456R

REMAN-HYD VALVE

Reman Main, Incl 2 - 36

1шт.

1

47533456C

CORE-VALVE HYD

Core Return Number

1шт.

2

280160

HEX SOC SCREW,#10 - 32 x 3/4"

4шт.

3

87434017

PLUG

Orificed, 0.030mm, Incl 28

1шт.

4

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

5

84549789

BOLT,M10 x 1.5 x 80mm, Cl 12.9

2шт.

6

84557167

SCREW

M10 x 100mm

1шт.

7

191121A1

VALVE

Signal, 2 - Way, Normally Closed, Incl 30

1шт.

8

86995302

SOLENOID

Coil

2шт.

9

195683A1

JAM NUT,1/2"-20

2шт.

10

87281256

CARTRIDGE

Accumulator W/ Orifice, Incl 31

1шт.

11

190704A1

CHECK VALVE

Park Brake

1шт.

12

87678444

VALVE

Priority Flow Control, Incl 32

1шт.

13

87434000

VALVE PRESSURE RELIE

Direct, Incl 34

1шт.

14

323464A1

CONNECTOR, ELEC

12 Cavity Flange

1шт.

15

87035062

PLUG,Hex, 1/2"-20 ORB

Incl 27

7шт.

16

86632547

PLUG,Hex, 5/16"-24 ORB

Incl 28

11шт.

17

86625138

PLUG,7/18" - 14

Incl 33

1шт.

18

87434016

PLUG

Orificed W/ Screen

1шт.

19

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

20

196736A1

BODY

Solenoid Tube, Armature

2шт.

21

196737A1

SPLIT PIN/SAFETY PIN

Push Solenoid Armature

2шт.

22

196738A1

SPRING

Centering Spool

2шт.

23

196739A1

WASHER

Centering

2шт.

24

188105A1

SOLENOID

Coil

2шт.

25

188106A1

NUT

Coil, M20 x 1.0

2шт.

26

191120A1

SEAL KIT

Services 35, Contains 18 Seals

1шт.

27

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

7шт.

28

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

13шт.

29

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

86508168

SEAL KIT

Services 7, Contains 2 Seals, 1 Washer

1шт.

31

126054A1

SEAL PACKAGE

Services 10, Contains 2 Seals, 2 Washers

1шт.

32

87434015

SEAL KIT

Services 12, Contains 5 Seals

1шт.

33

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

149942C1

SEAL KIT

Services 13, Contains 2 Seals, 1 Washer

1шт.

35

87434014

CONTROL VALVE

Directional, Incl 20 - 25

1шт.

36

47542963

ORIFICE

Disc, 0.9mm

1шт.

Выбрано товаров: 38
