Запчасти Case IH 8240 (35.300.BC[01]) - HYDRAULIC SYSTEM, ENGINE 11L AND 13L (35) - HYDRAULIC SYSTEMS

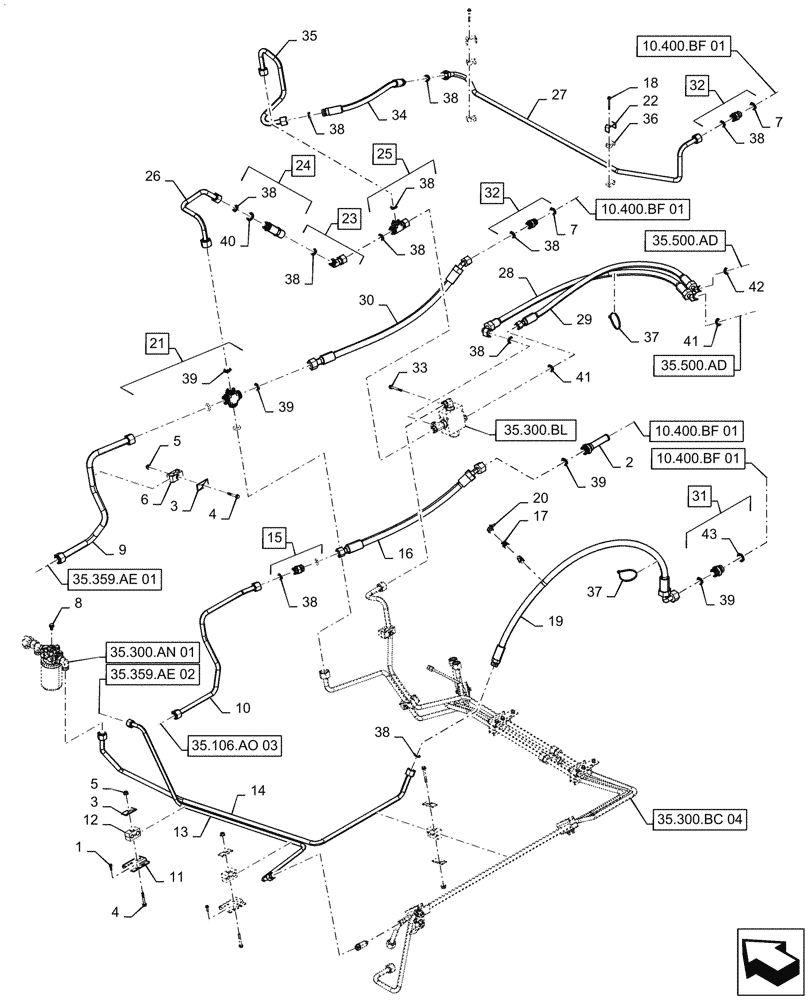

Схема запчастей Case IH 8240 - (35.300.BC[01]) - HYDRAULIC SYSTEM, ENGINE 11L AND 13L (35) - HYDRAULIC SYSTEMS
35.359.ae 02
38
5
3
38
43
17
25
38
33
38
7
22
34
38
13
18
36
38
5
16
38
21
40
41
37
37
24
32
39
7
27
31
39
20
32
23
15
1
38
28
11
42
19
10
4
30
38
4
14
39
6
9
12
2
41
39
35
26
3
29
8
38
38
35.500.ad
35.500.ad
35.300.bl
10.400.bf 01
10.400.bf 01
10.400.bf 01
10.400.bf 01
35.359.ae 01
35.106.ao 03
35.300.bc 04
35.300.an 01

Артикул

Название

Примечание

Количество

1

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

4шт.

2

87360480

OIL COOLER FILTER

Return

1шт.

3

87000230

PLATE

Cover

3шт.

4

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

6

87000146

CLAMP

Hydraulic Tube

1шт.

7

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

8

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

9

47380555

TUBE

Aux Cooler Return

1шт.

10

47380557

TUBE

Main Cooler Return

1шт.

11

87109755

BRACKET

Tube Clamp

2шт.

12

87000144

CLAMP

Hydraulic Tube

2шт.

13

48035863

HYD TUBE

Drain, Bulkhead to Tee

1шт.

14

47633815

TUBE

Main Cooler Inlet

1шт.

15

84100407

UNION,1-3/16"-12 ORFS

Incl 38

1шт.

16

47380569

HYDRAULIC HOSE

Main Cooler Return

1шт.

17

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

18

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

19

47633817

TUBE

Main Cooler Supply

1шт.

20

84266050

CABLE TIE,384mm L, Polyamide

2шт.

21

47394380

UNION CROSS

Incl 39

1шт.

22

433100

SUPPORT

Tube Clamp

2шт.

23

84214051

45 ELBOW,1-3/16"-12 ORFS x 14mm

Incl 38

1шт.

24

87563490

CHECK VALVE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Incl 38, 40

1шт.

25

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

Incl 38

1шт.

26

47380564

TUBE

Aux Cooler Bypass

1шт.

27

47690286

TUBE

Aux Cooler Supply 2

1шт.

28

47797656

HYDRAULIC HOSE

SAS Motor Return

1шт.

29

47688500

HYDRAULIC HOSE

SAS Motor Supply

1шт.

30

47380572

HYDRAULIC HOSE

Aux Cooler Return

1шт.

31

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 39, 43

1шт.

32

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 7, 38

2шт.

33

87656138

BOLT,M8 x 78.1mm, Cl 10.9

2шт.

34

47634759

HOSE

Aux Cooler Supply

1шт.

35

47634725

TUBE

Aux Cooler Supply 1

1шт.

36

433007

CLAMP

Tube

4шт.

37

86566990

CABLE TIE,292mm OAL x 4.8mm W

3шт.

38

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

12шт.

39

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

6шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

41

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

42

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

43

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 43
