Запчасти Case IH 8240 (35.106.AO[03]) - HYDRAULIC SYSTEM, PTO 3 (35) - HYDRAULIC SYSTEMS

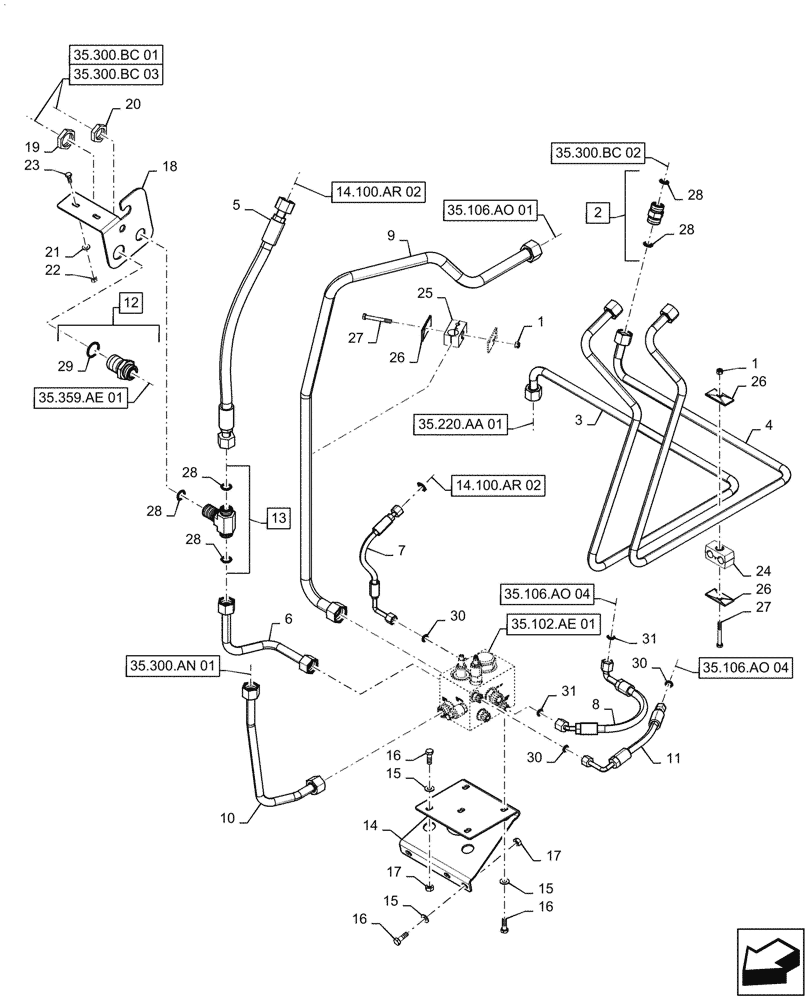

Схема запчастей Case IH 8240 - (35.106.AO[03]) - HYDRAULIC SYSTEM, PTO 3 (35) - HYDRAULIC SYSTEMS
35.220.aa 01
28
8
27
22
16
17
26
12
30
16
17
26
15
28
19
25
31
3
15
5
31
27
30
15
14
20
4
9
2
24
11
30
28
21
7
28
1
10
29
18
23
16
28
26
6
1
35.102.ae 01
35.106.ao 01
13
35.300.bc 02
35.300.bc 01
14.100.ar 02
14.100.ar 02
35.300.bc 03
35.359.ae 01
35.106.ao 04
35.106.ao 04
35.300.an 01

Артикул

Название

Примечание

Количество

1

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

2

84100407

UNION,1-3/16"-12 ORFS

Incl 28

1шт.

3

84423512

HYD TUBE

Spreader Pressure

1шт.

4

48035858

HYD TUBE

Cleaning Fan Pressure

1шт.

5

84158714

HOSE ASSY.,15.88mm ID x 630mm L, SAE 100R17

Lube Tee to Cross

1шт.

6

87281692

HYD TUBE,0.75" OD

Lube Regulator, Supply to Valve

1шт.

7

84158715

HOSE ASSY.

PTO Gearbox

1шт.

8

84176035

HOSE ASSY.

Lube Supply to Rotor Clutch

1шт.

9

47709101

TUBE

PTO Regulator Valve Return

1шт.

10

87663046

HYD TUBE,.75" OD

Lube RV to Filter

1шт.

11

84218078

HYDRAULIC HOSE

Regulator Valve to Clutches

1шт.

12

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

Incl 29

1шт.

13

86900241

TEE,1-7/16"-12 ORFS, Bulkhead

Incl 28

1шт.

14

87284344

BRACKET

Pressure Manifold

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

16

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

17

100016

NUT,M10 x 1.5, Cl 8

5шт.

18

87001274

BRACKET

Bulkhead

1шт.

19

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

1шт.

20

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

1шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

22

9706690

NUT,M8 x 1.25, Cl 8

2шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

24

87000140

CLAMP,Tube, 19.05mm

1шт.

25

87000142

CLAMP,2 Hoses

Hydraulic Tube

1шт.

26

87000230

PLATE

Cover

4шт.

27

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

28

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

29

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

30

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

31

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

Выбрано товаров: 31
