Запчасти Case IH 8240 (29.218.AH) - VAR - 425215, 425399, 425402, 405403, 425431, 425529 - HYDROSTATIC MOTOR, DRIVE (29) - HYDROSTATIC DRIVE

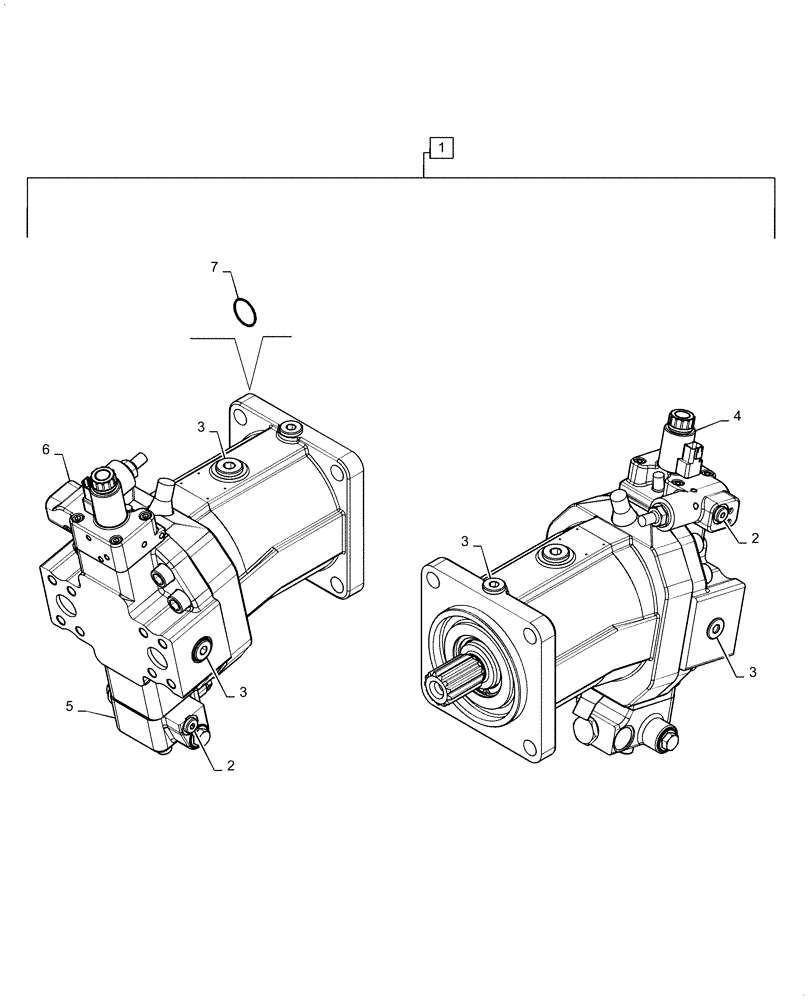

Схема запчастей Case IH 8240 - (29.218.AH) - VAR - 425215, 425399, 425402, 405403, 425431, 425529 - HYDROSTATIC MOTOR, DRIVE (29) - HYDROSTATIC DRIVE
3
6
1
2
3
2
3
7
3
4
5

Артикул

Название

Примечание

Количество

1

47919917

HYDRAULIC MOTOR

Variable Displacement, 140CC, Incl 2 - 6

1шт.

2

86598044

PLUG,Hex, M14 x 1.5 ORB

2шт.

3

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

4шт.

4

84389760

COIL

Proportional Solenoid

1шт.

5

47922414

VALVE

Hydraulic Flushing, High Flow

1шт.

6

84529583

CONTROL VALVE

Electronic Proportional

1шт.

7

87713161

REPAIR KIT

Seal, Services 1

1шт.

Выбрано товаров: 7
