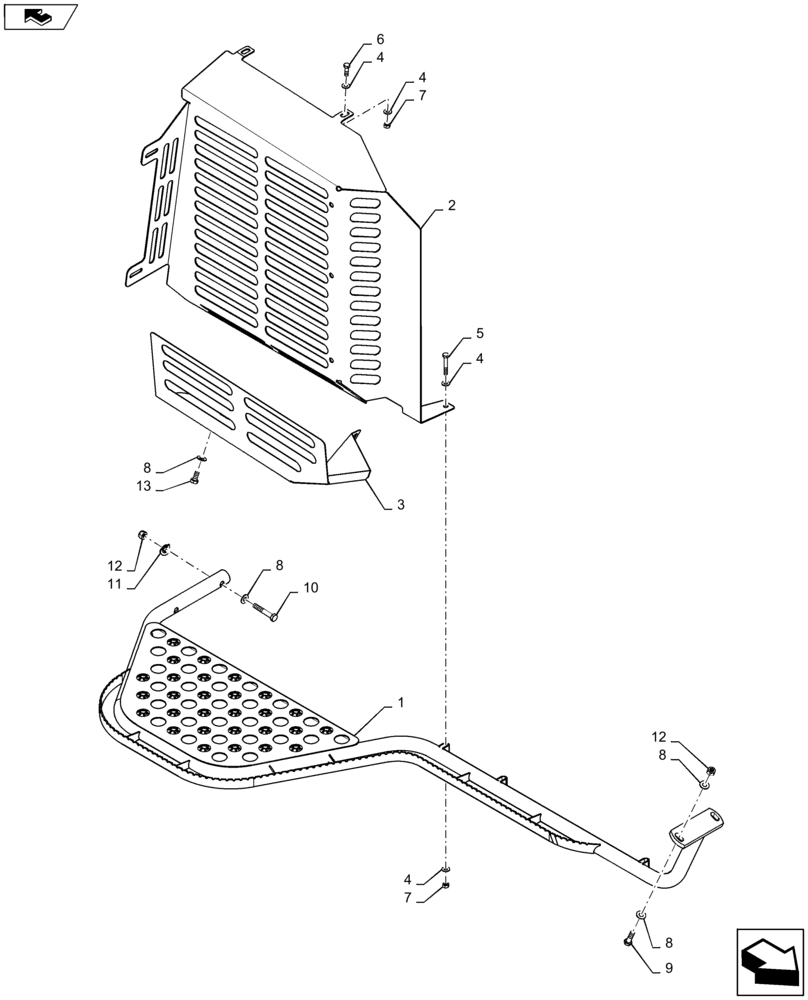

Запчасти Case IH 8230 (90.116.AA[04]) - SHIELD, RH, LOWER, EU (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84295415

PROTECTION PLATE

Lower, RH

1шт.

2

47481237

SHIELD

Cleaning Fan

1шт.

3

84395289

SHIELD

Lower Fan Drive

1шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

5

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

1шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

9706690

NUT,M8 x 1.25, Cl 8

3шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

9

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

10

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

11

379401

WASHER,11mm ID x 30mm OD

Retainer

2шт.

12

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.
