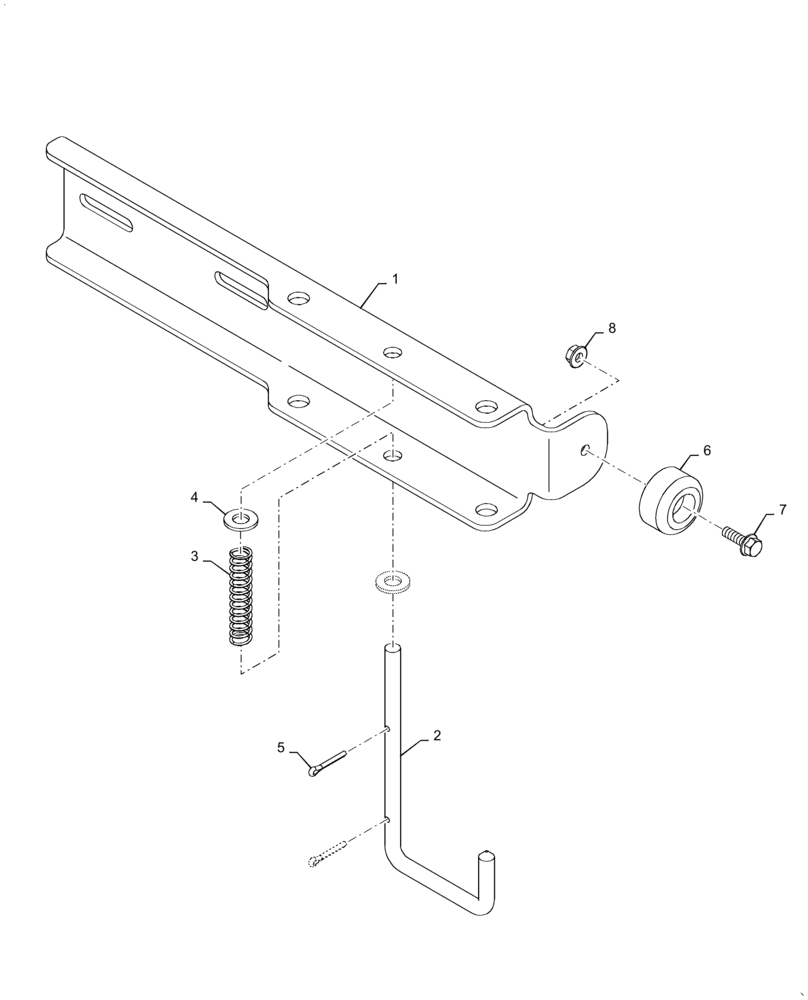

Запчасти Case IH 8230 (90.110.AU[08]) - BRACKET, TRIM PANEL, REAR, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87497819

BRACKET

Rear Support, RH

1шт.

2

87728300

PIN

Locking

1шт.

3

192216A1

SPRING

Tension

1шт.

4

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

5

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

6

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

Rubber

1шт.

7

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

8

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.
