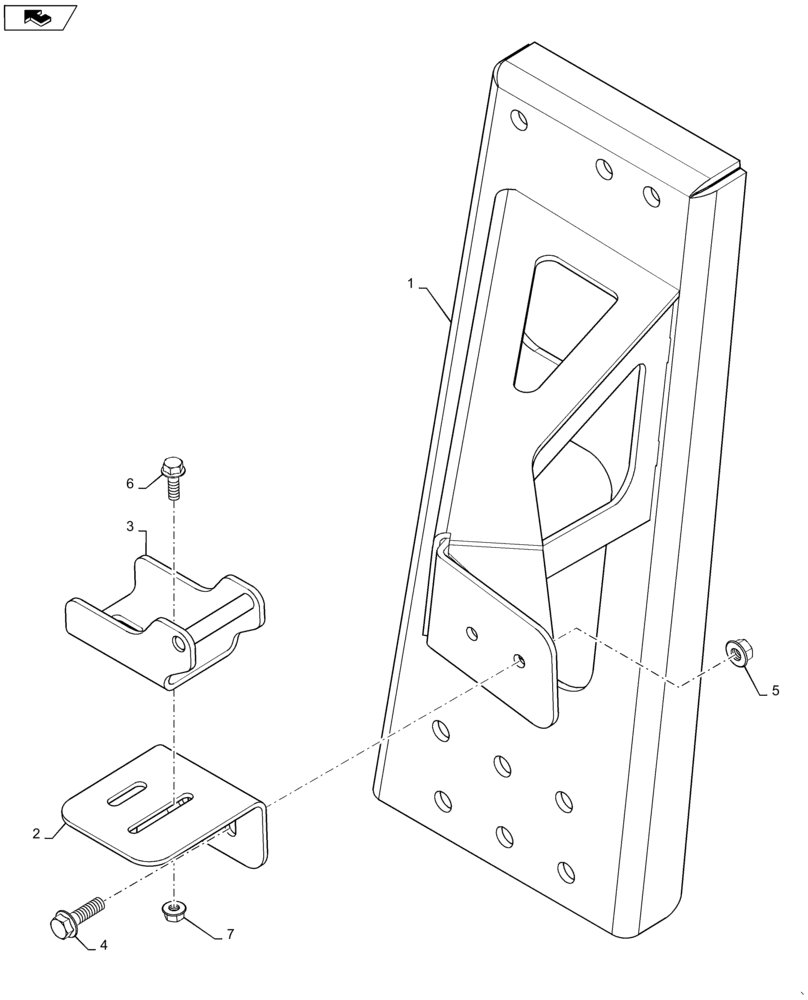

Запчасти Case IH 8230 (90.110.AU[02]) - SUPPORT, SHIELD, REAR FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84381725

CRADLE

Support

1шт.

2

84386382

SUPPORT

Shield Hinge

1шт.

3

87475017

BRACKET

Trim Panel

1шт.

4

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.

5

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

6

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.
