(90.105.CL) - PANEL, TAIL LAMP, REAR

Запчасти Case IH 8230 (90.105.CL) - PANEL, TAIL LAMP, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

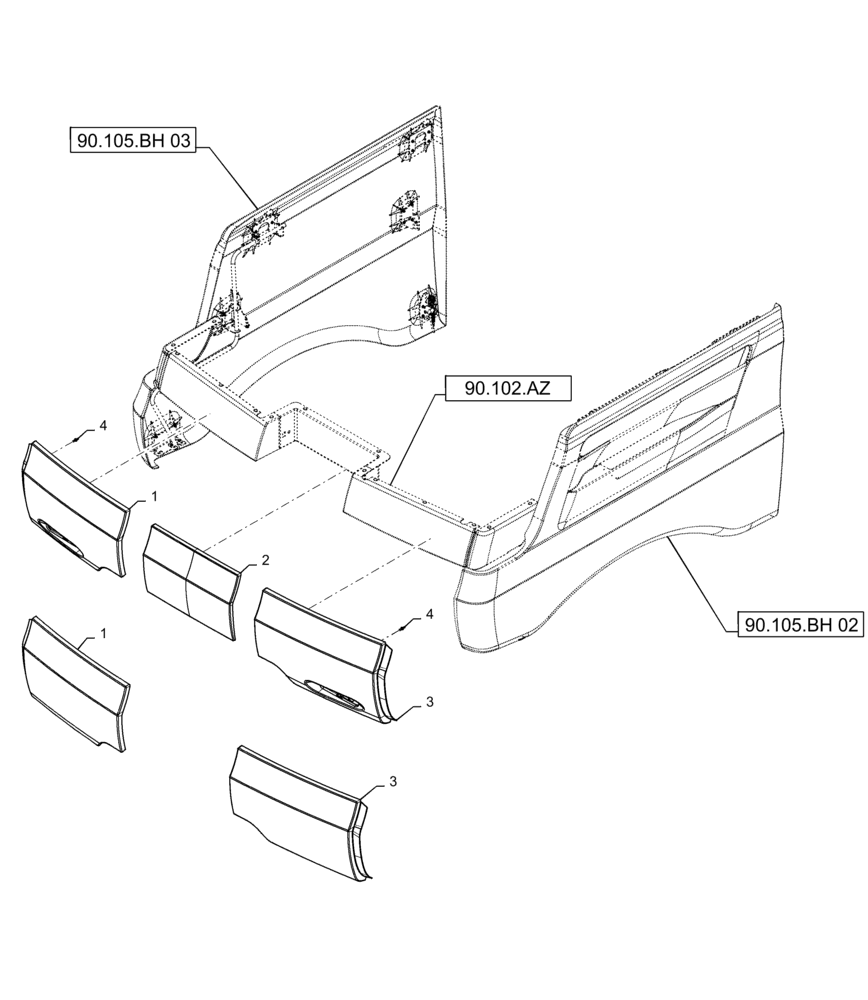

Схема запчастей Case IH 8230 - (90.105.CL) - PANEL, TAIL LAMP, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
1
90.105.bh 02
3
90.102.az
4
4
90.105.bh 03
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87658402

PANEL ASSY.

Rear, LH, Non - EU

1шт.

2

87628200

SHIELD

Rear, Center

1шт.

3

87658408

PANEL ASSY.

Rear, RH, Non - EU

1шт.

4

449901A1

STUD,M8 x 1.25 x 37.5mm OAL

2шт.
