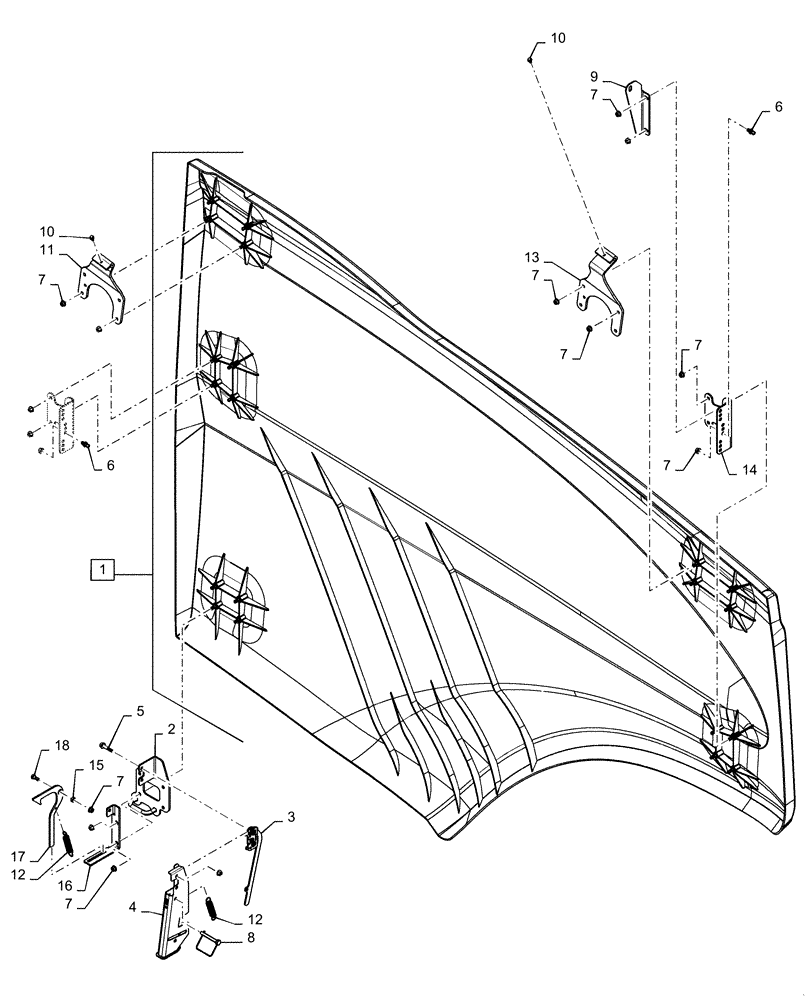

Запчасти Case IH 8230 (90.105.BH[04]) - SIDE PANEL, FRONT, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84322724

TRIM PANEL

Front, LH, Incl 7, 13, 14

1шт.

2

87711620

BRACKET

Panel Catch

1шт.

3

87701158

LATCH ASSY.

Panel Retention

1шт.

4

87711617

BRACKET

Latch Cover

1шт.

5

87698834

BOLT,M8 x 48.1mm, Cl 10.9

2шт.

6

83952214

BALL STUD,M8 x 29.5mm OAL

Strut Mount

2шт.

7

86619801

FLANGE NUT,M8 x 1.25, Cl 8

27шт.

8

647695

PIN,7.94mm OD

Panel Lock

1шт.

9

87711599

BRACKET

Locking Tab

1шт.

10

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

2шт.

11

84318370

BRACKET

Hinge, Rear

1шт.

12

87109697

SPRING

Extension

2шт.

13

87633973

BRACKET

Hinge, Front

1шт.

14

87661467

BRACKET

Strut Mount, Front

2шт.

15

224089A1

SPACER

8.3mm ID x 14.3mm OD x 5.3mm OAL

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.
