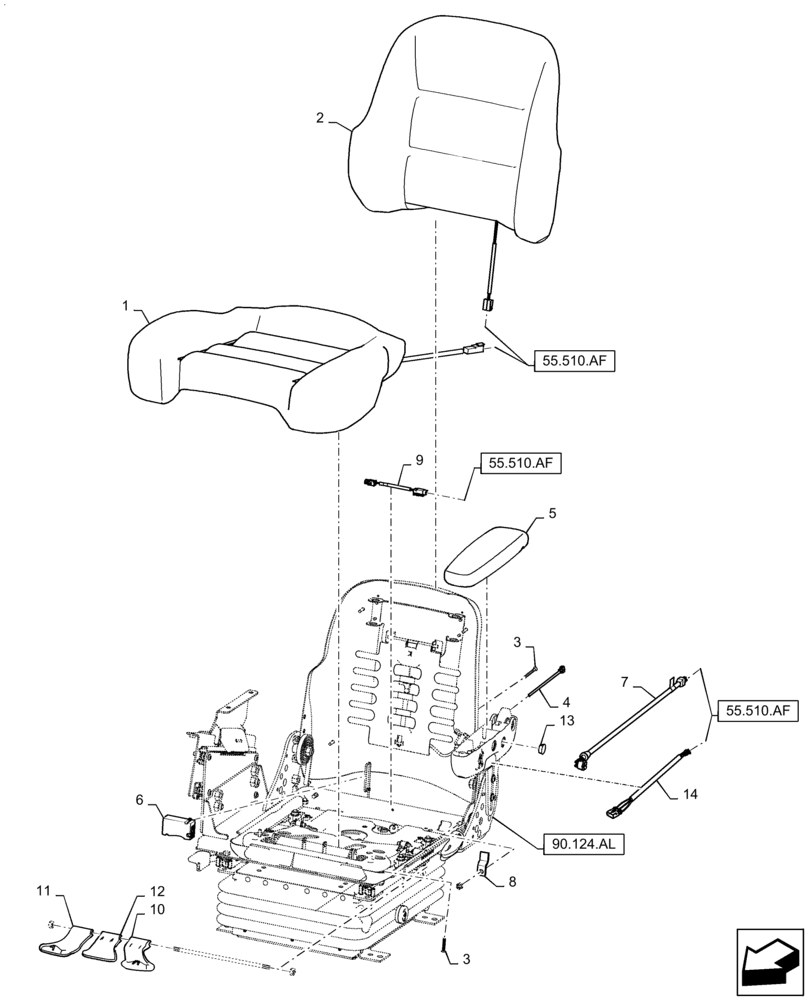

Запчасти Case IH 8230 (90.124.AH) - VAR - 425188, 425376 - SEAT CUSHION & ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47368362

SEAT CUSHION

Bottom, Red Leather

1шт.

2

47368376

SEAT CUSHION

Back, Red Leather

1шт.

3

47357001

SERVICE KIT

Operator Seat, Cushion Attachment

1шт.

4

84173154

SWITCH ASSY

Operators Presence

1шт.

5

47368639

SERVICE KIT

LH, Armrest Pad

1шт.

6

84392269

CONTROLLER

Seat Heater

1шт.

7

84392266

HARNESS

Seat Heater/Switch

1шт.

8

84602733

KIT

Service, Recliner, Full Stop

1шт.

9

47368651

SERVICE KIT

Heater Jumper

1шт.

10

47368606

SERVICE KIT

Tilt Knob

1шт.

11

47368613

SERVICE KIT

Extension Knob

1шт.

12

47368628

SERVICE KIT

No Swivel Knob

1шт.

13

47368657

SERVICE KIT

W/ Semi - Active Suspension, - VAR - 425376

1шт.

14

87626130

HARNESS

W/ Semi - Active Suspension, - VAR - 425376

1шт.
