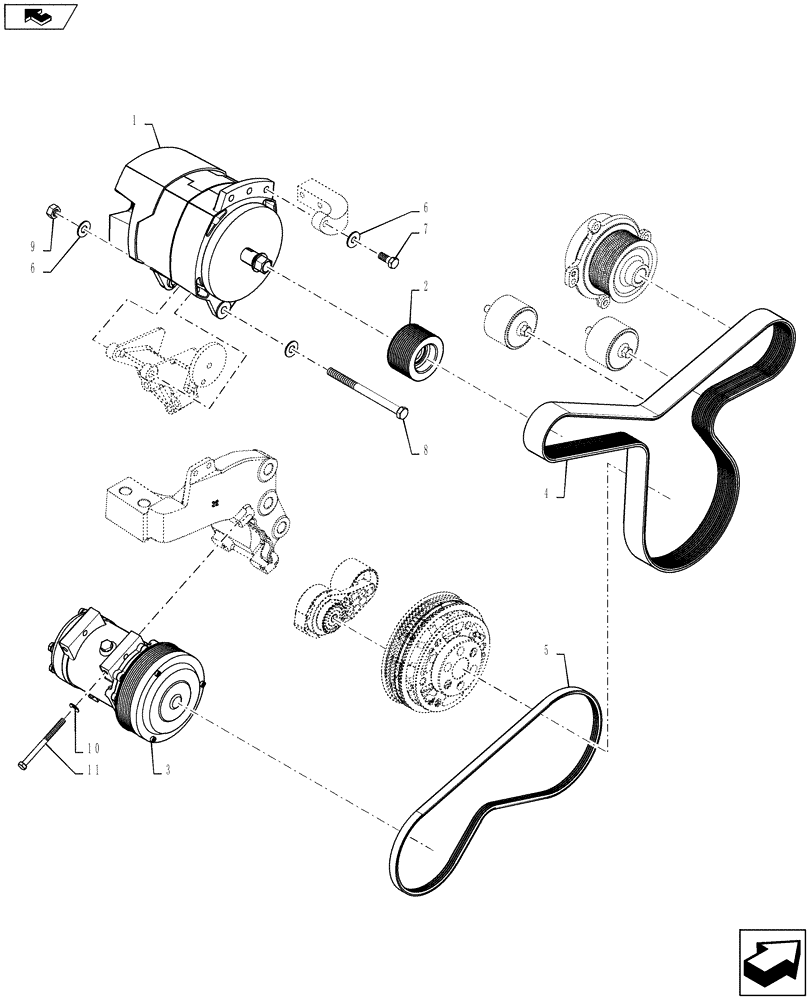

Запчасти Case IH 8230 (10.414.05[2]) - FRONT ENGINE DRIVE COMPONENTS 82/9230 T2/T4 (10) - ENGINE

1

87592254

ALTERNATOR,12V, 185A

1шт.

2

84247658

PULLEY

1шт.

3

86993463

AIRCOND. COMPRESSOR

1шт.

3

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

3

86993463R

REMAN-A/C COMPRESSOR

Reman for New PN 86993463

1шт.

3

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

4

84247607

BELT

Alternator Drive

1шт.

5

84223612

BELT

A/C Drive

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

7

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

1шт.

8

397393

BOLT,M12 x 1.75 x 167.68mm OAL, Cl 8.8

1шт.

9

9706685

NUT,M12 x 1.75, Cl 8

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

11

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

4шт.
