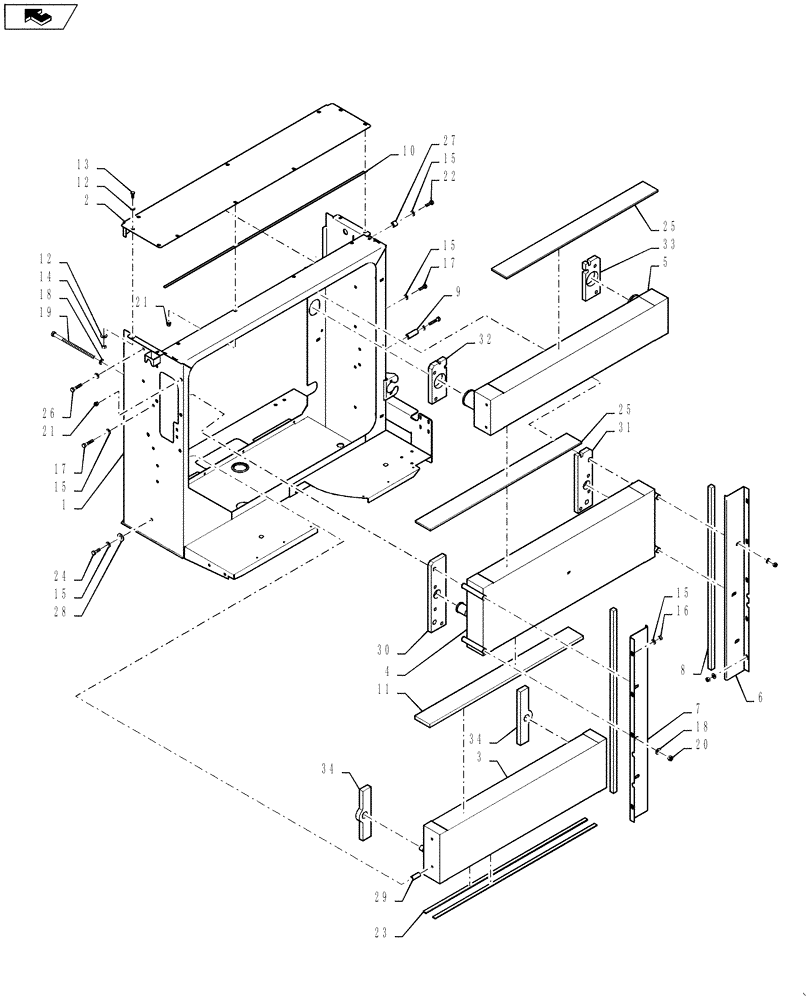

Запчасти Case IH 8230 (10.414.02) - COOLER BOX AND COOLERS 82/9230 T2/T4 (10) - ENGINE

1

84416646

FRAME

1шт.

2

84131432

COVER

1шт.

3

87601394

OIL COOLER,Main Oil Cooler

1шт.

4

87601392

RADIATOR,1567mm L x 524mm H

1шт.

5

87736357

INTERCOOLER

1шт.

6

87720404

PLATE

1шт.

7

84416864

BAFFLE

1шт.

8

87710390

SEALING STRIP,25.4mm W x 1190mm L x 25.4mm Thk

2шт.

9

87720409

SPACER

2шт.

10

87676089

FOAM

1шт.

11

87674308

FOAM

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

14

9706690

NUT,M8 x 1.25, Cl 8

4шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

28шт.

16

100016

NUT,M10 x 1.5, Cl 8

10шт.

17

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

18

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

8шт.

19

364053

BOLT,Hex, M12 x 1.75 x 220mm, Cl 8.8

4шт.

20

100038

NUT,M12 x 1.75, Cl 8

4шт.

21

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

10шт.

22

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

23

NA

NOT SERVICED

order Bulk 292029

1шт.

24

120074

BOLT,Hex, M10 x 90, 8.8

4шт.

25

87738339

FOAM

2шт.

26

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

27

87697449

BUSHING

2шт.

28

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

29

87484408

SPACER,12.9mm ID x 25.4mm OD x 65.5mm L

2шт.

30

84388636

FOAM INSULATION

1шт.

31

84388635

FOAM INSULATION

1шт.

32

84388616

FOAM INSULATION

1шт.

33

84388628

FOAM INSULATION

1шт.

34

84388627

FOAM INSULATION

2шт.
