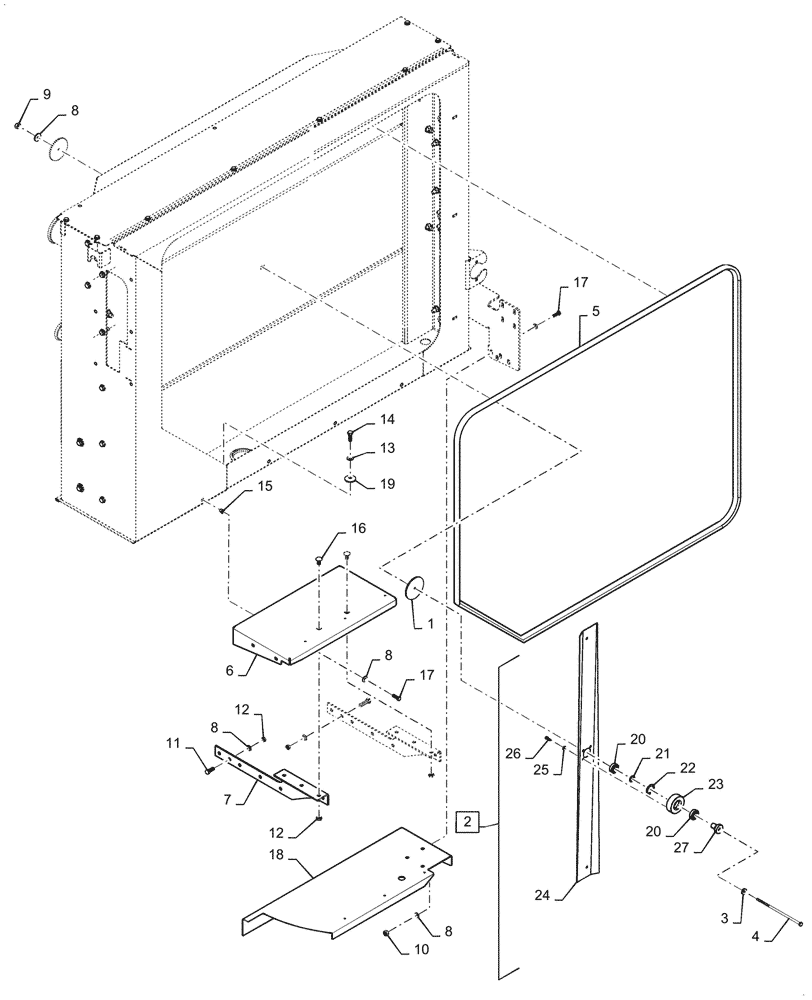

Запчасти Case IH 8230 (10.414.02[3]) - COOLER BOX AND FAN 82/9230 T2/T4 (10) - ENGINE

1

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

2шт.

2

87720407

WIPER BLADE

Incl 20 - 27

1шт.

3

86592711

WASHER,8.4mm ID x 21mm OD x 4mm Thk

1шт.

4

87695409

BOLT,Hex, M8 x 210mm, Cl 8.8

1шт.

5

401209

SEAL PROTECTION

1шт.

6

84271516

PLATFORM

1шт.

7

84342089

BRACKET

2шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

10

9706690

NUT,M8 x 1.25, Cl 8

2шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

12

100016

NUT,M10 x 1.5, Cl 8

2шт.

13

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

2шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

15

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

4шт.

16

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

18

84271837

PLATFORM

1шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

20

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

2шт.

21

84334251

WASHER,17.5mm ID x 24mm OD x 2mm Thk

1шт.

22

300642

CIRCLIP,M35 x 1.5mm W, Internal

1шт.

23

84437613

BUSHING,35mm ID x 65mm OD x 23mm Thk

1шт.

24

87720406

FAN BLADE

Wiper

1шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

26

84058583

HEX SOC SCREW,BTN HD, M6 x 16mm, Cl 8.8

4шт.

27

84460219

SHAFT,9mm ID x 17mm OD, 24.5mm OD Shoulder, 32mm Head

1шт.
