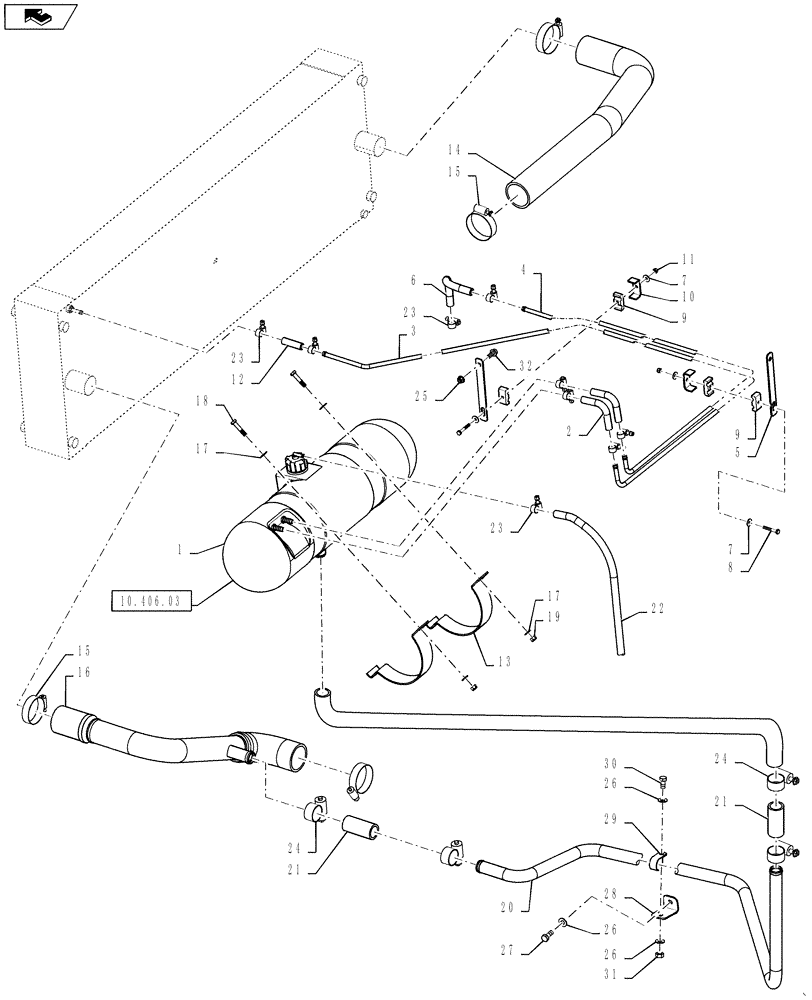

Запчасти Case IH 8230 (10.406.02) - COOLANT CIRCUIT 82/9230 T2/T4 (10) - ENGINE

1

87670349

RESERVOIR, COOLANT E

1шт.

2

87671820

HOSE,9.40 mm ID, SAE 30R2

2шт.

3

87665332

TUBE,9.52 mm OD

1шт.

4

84420734

AIR INTAKE TUBE

1шт.

5

84466525

BRACKET

2шт.

6

87576257

HOSE,9.50 mm ID x 250.00 mm

1шт.

7

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

9

430357

CLAMP

4шт.

10

431941

SUPPORT

2шт.

11

353308

NUT,M6 x 1.0, Cl 8

2шт.

12

87534733

HOSE,9.50 mm ID x 110.00 mm, SAE 30R2

1шт.

13

84442536

CLAMP

2шт.

14

87667721

RADIATOR HOSE,60.00 mm ID x 726.30 mm, SAE J20R4

1шт.

15

86633352

HOSE CLAMP,57mm - 79mm

4шт.

16

87696886

TUBE,409.1, 208.4 mm L

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

18

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

19

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

20

87665216

TUBE,28.6 mm OD x 924.9 mm L

1шт.

21

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

2шт.

22

87395212

TUBE

1шт.

23

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

9шт.

24

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

27

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

28

87723274

BRACKET

1шт.

29

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

30

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

31

100016

NUT,M10 x 1.5, Cl 8

1шт.

32

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

33

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.
