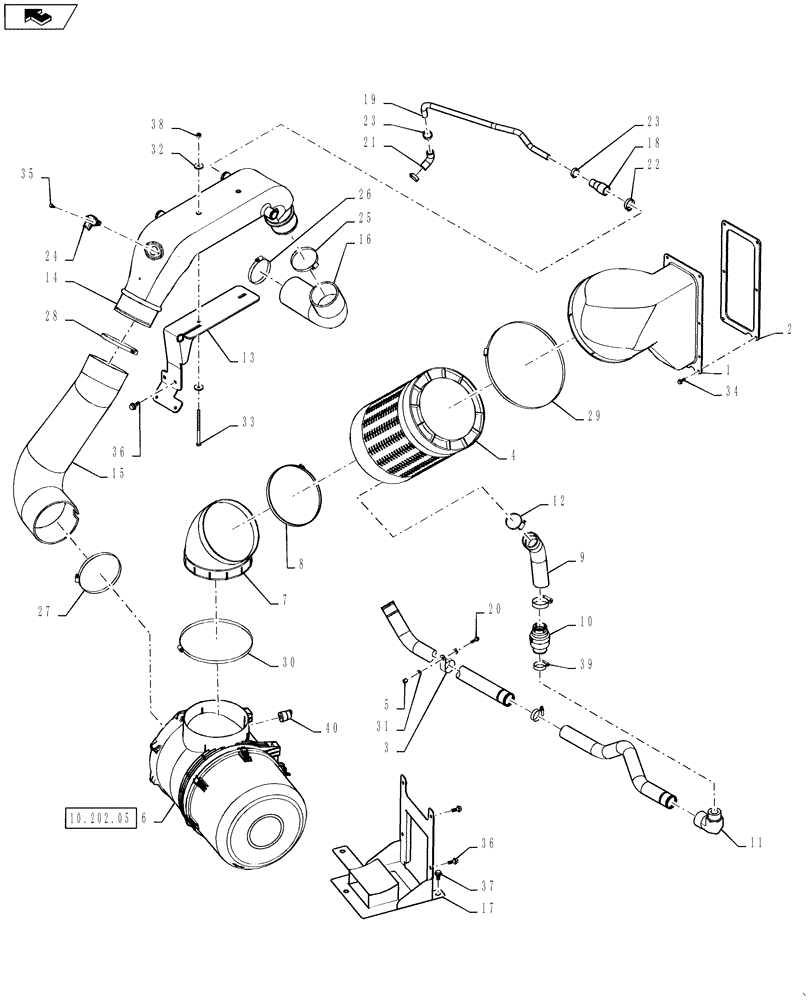

Запчасти Case IH 8230 (10.202.04) - AIR INTAKE/AIR CLEANER 82/9230 T4 (10) - ENGINE

1

84410132

AIR DUCT

1шт.

2

84414539

GASKET,6.4mm Thk

1шт.

3

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

4

84565656

AIR CLEANER

Precleaner

1шт.

5

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

6

84305918

AIR CLEANER

1шт.

7

84410134

TUBE

1шт.

8

84570099

SEAL

Rubber

1шт.

9

84410135

HOSE

1шт.

10

87745355

CHECK VALVE

1шт.

11

87674853

ELBOW

1шт.

12

82039349

CLAMP,60mm ID - 80mm ID x 12mm W, Unlined

1шт.

13

84427674

SUPPORT

1шт.

14

84244914

AIR INTAKE TUBE

1шт.

15

84410137

AIR INTAKE TUBE

1шт.

16

84385240

ELBOW,99.6mm ID x 441.9mm L

1шт.

17

84411954

BRACKET

1шт.

18

84073303

HOSE,25mm ID - 38mm ID x 100mm OAL

1шт.

19

84385266

TUBE

1шт.

20

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

21

84334134

HOSE,25mm ID x 69mm OAL

1шт.

22

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

1шт.

23

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

3шт.

24

87482355

SENSOR

1шт.

25

9706924

HOSE CLAMP,103.1mm - 127mm

1шт.

26

86637712

HOSE CLAMP,133mm - 156mm

1шт.

27

87019669

HOSE CLAMP,174.1mm - 196.8mm

1шт.

28

87690486

CLAMP,149mm ID - 172mm ID, SAE #100

1шт.

29

79083864

CLAMP,325mm ID - 360mm ID x 14mm W, Unlined

1шт.

30

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

31

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

32

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.

33

381522

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

2шт.

34

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

35

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

36

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

37

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

3шт.

38

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

39

82039348

HOSE CLAMP,40mm - 60mm

3шт.

40

87013666

SWITCH,Air Filter Restriction

1шт.
