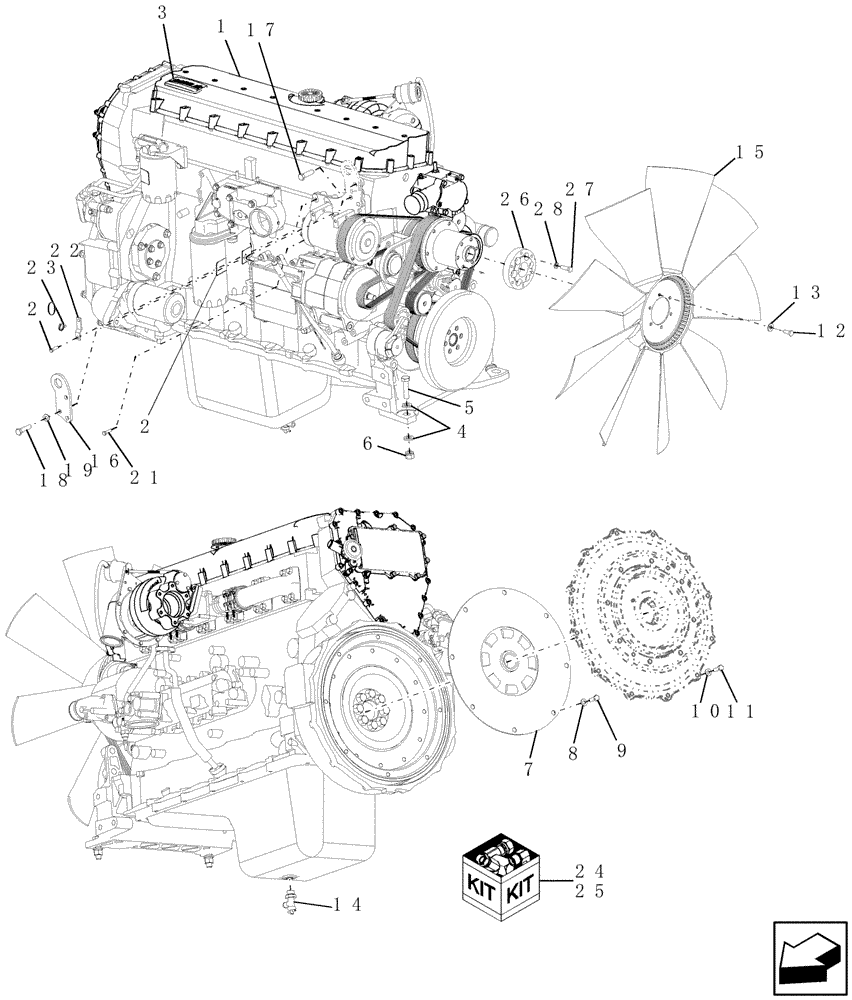

Запчасти Case IH 8120 (10.100.01[02]) - COMPLETE ENGINE - 8120/8120(LA) (10) - ENGINE

1

87732803

ENGINE,345kW, 6 Cylinders, W/ Turbocharger

IVECO, F3A

1шт.

1

87732803ER

REMAN-REPLACEMENT EN

AF8120 w/Cursor 10 Tier 3

1шт.

1

87732803EPAC

CORE-EPA ENGINE

Return Number

1шт.

2

87679098

DECAL,37mm x 70mm

CASE IH

3шт.

Red "i", No Underline

1шт.

3

87679108

DECAL

Emblem, CASE/IH

1шт.

Red "i", No Underline

1шт.

4

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

5

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

6

412066

NUT,M16 x 2.0, Cl 8

2шт.

7

87536815

SPLINED COUPLING,466.67mm OD

Damper

1шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

9

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

11

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

12шт.

12

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

14

87105048

DRAINCOCK/TAP SUPPLY

1шт.

15

84457703

FAN,9 Blades, 965.2mm OD

1шт.

Pilot Hole Dia = 93.7 mm

1шт.

16

504078127

LOAD HOOK

Fan End

1шт.

16

500372844

LOAD HOOK

Gearbox End

1шт.

17

16677735

SCREW,M12 x 25mm

M12

1шт.

18

16588625

BOLT,Hex, M12 x 60mm, Cl 8.8

M12

2шт.

19

16887624

WASHER

2шт.

20

16692324

BOLT

M10

2шт.

21

504080093

BOLT

M7 x 1.0 x 16 mm

2шт.

22

504060889

RETAINER

Support, Cable

1шт.

23

504023286

CLIP,200mm L

Plastic Collar

1шт.

24

8094885

ENGINE OVERHAUL KIT

Gaskets, Bottom

1шт.

25

8094886

KIT, ENGINE TOP GASK

Valve Grind

1шт.

26

87641159

ADAPTER

Fan

1шт.

27

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

28

140017

WASHER,M10 x 20mm OD x 2mm Thk

6шт.
