(90.120.05) - SEAT, INSTRUCTIONAL

Запчасти Case IH 8120 (90.120.05) - SEAT, INSTRUCTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

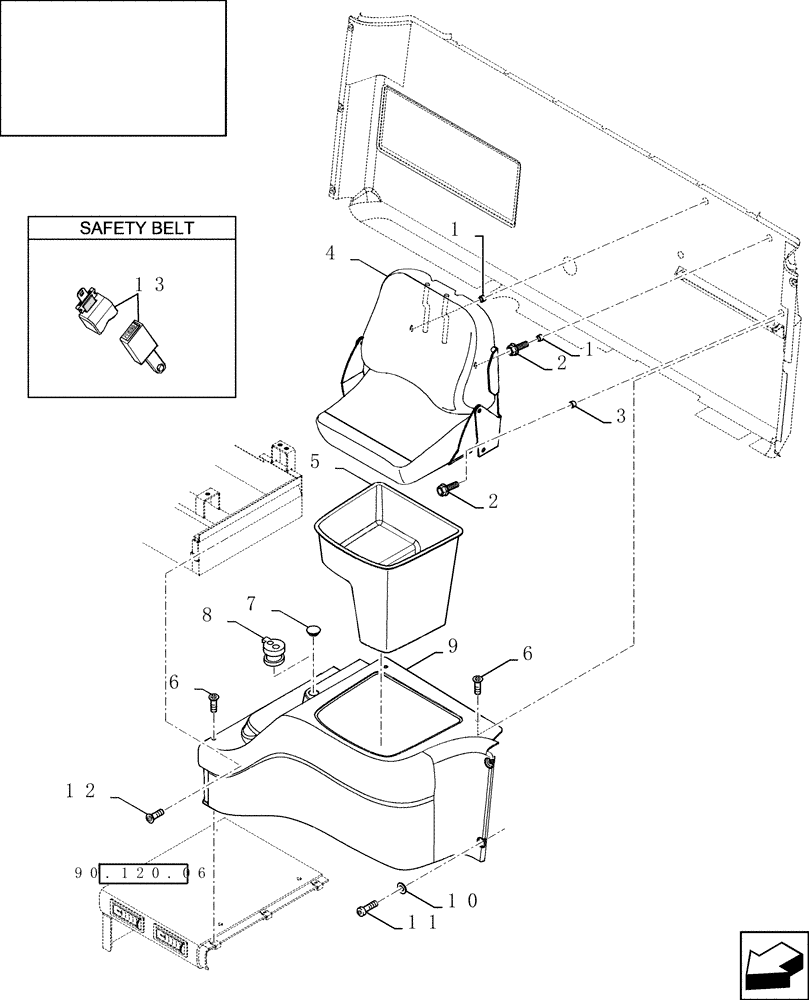

Схема запчастей Case IH 8120 - (90.120.05) - SEAT, INSTRUCTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
6
2
7
11
5
1
1
13
8
9
10
90.120.06
2
12
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84075475

BUSHING

2шт.

2

86511480

BOLT,M8 x 1.25 x 38.1mm

4шт.

3

84075476

BUSHING

2шт.

4

87685205

SEAT ASSY.

Wheat

1шт.

5

84067905

BOX

1шт.

6

86502680

SCREW,Phil Oval Hd, Csk, M6 x 20mm, Cl 4.8, Full Thd

5шт.

7

84067984

PLUG

1шт.

8

84320279

CIGARETTE LIGHTER

1шт.

9

86995759

COVER

1шт.

10

84072877

WASHER,6.6mm ID x 22mm OD x 2mm Thk

2шт.

11

84007540

SCREW,Pozidrive, Pan HD, M6 x 25mm, Cl 4.8

2шт.

12

9844205

SCREW,Phillips Drive, Oval HD, M4 x 14mm, Cl 4.8

1шт.

13

84081010

SEAT BELT

1шт.
