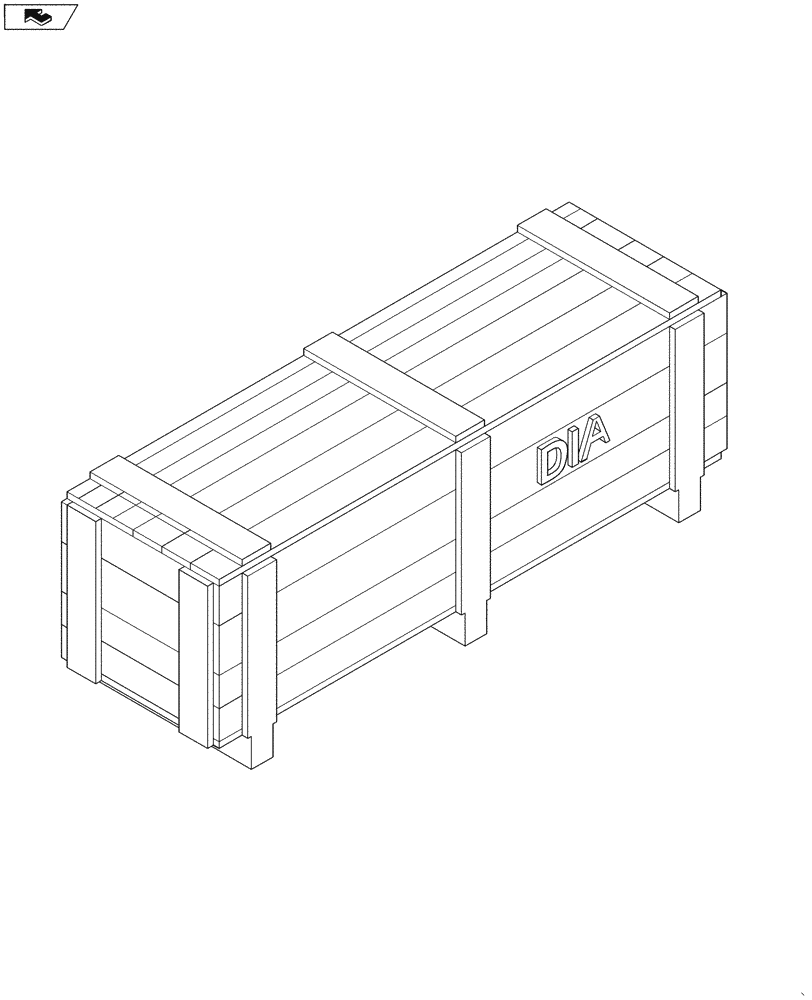

Запчасти Case IH 8120 (88.074.02) - DIA KIT, AFX TAILINGS AUGER UPGRADE (88) - ACCESSORIES

1

87624930

DIA KIT, HARVESTER

Afx Tailings Auger Upgrade, Incl 2 - 18

1шт.

2

87730185

AUGER

Extension Wear

1шт.

3

87549450

BLOWER

Extension Wear

1шт.

4

87109160

SHIM,35.5mm ID x 58mm OD x 2.18mm Thk

Tail procedure, Blower - Plated

5шт.

5

84814918

SET SCREW,M8 x 12mm, Cl 8.8

2шт.

6

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

Retaining

1шт.

7

86996914

KEY

Retaining

2шт.

8

87574415

COVER

1шт.

9

87528798

SEAL

1шт.

10

9512968

RIVET,Pop, 4.8mm OD x 11.2mm L

4шт.

11

87542571

SUPPORT

Bearing

1шт.

12

86974037

FLANGE

Relub

2шт.

13

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

1шт.

14

52444

COLLAR,38.2mm ID x 60.33mm OD x 18.3mm Thk

Bearing Lock

1шт.

15

87544270

BRACKET

1шт.

16

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

18

337475

NUT,M12, Cl 10

4шт.
